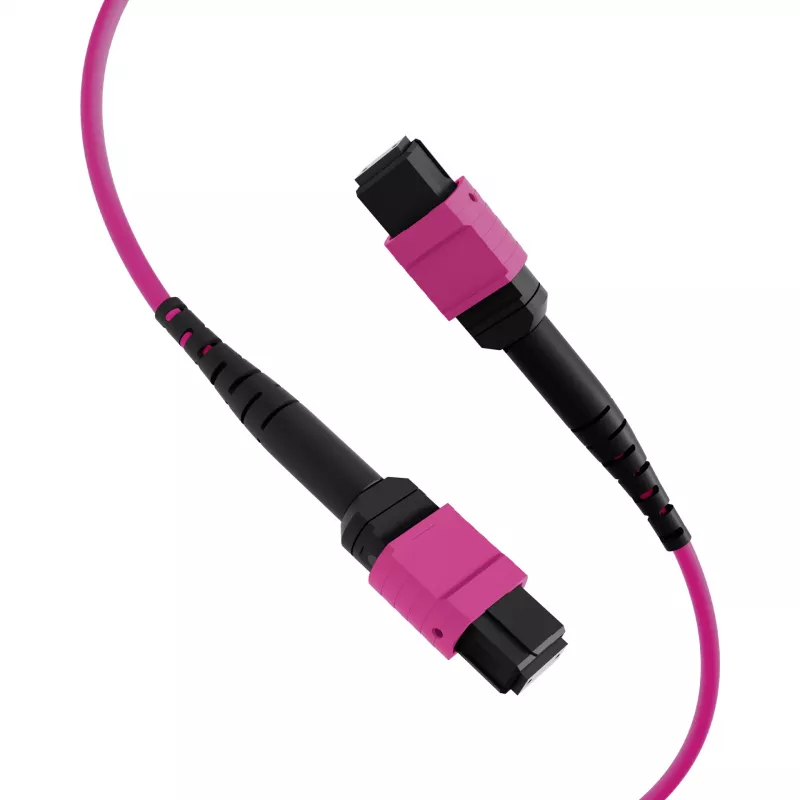

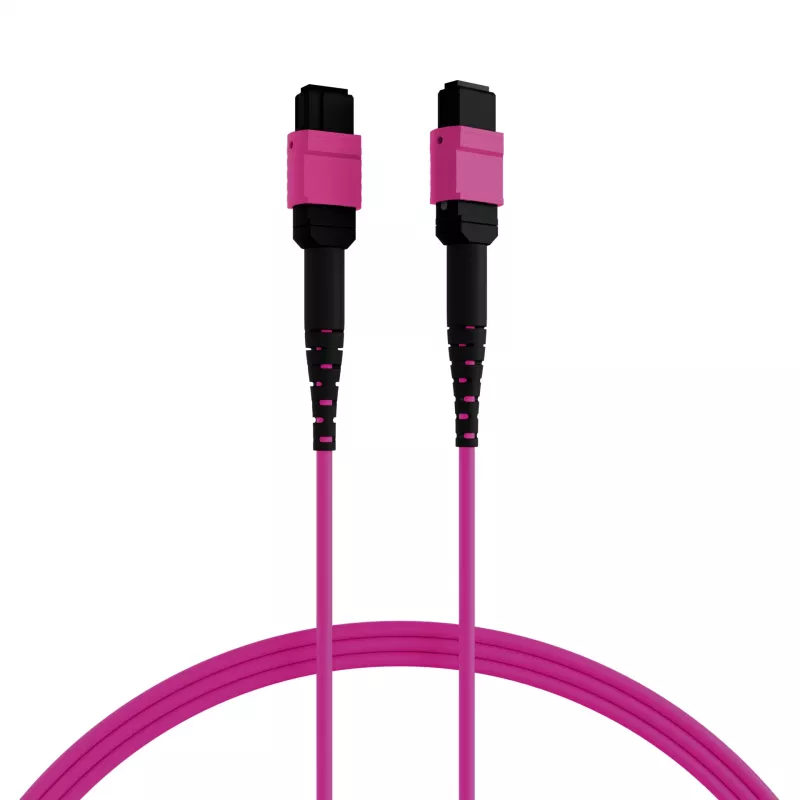

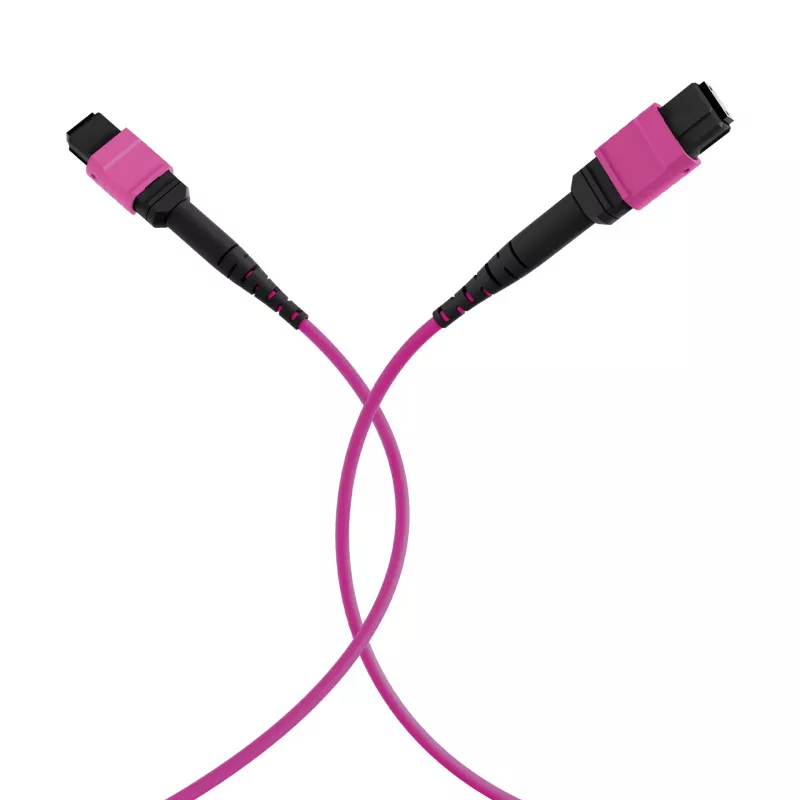

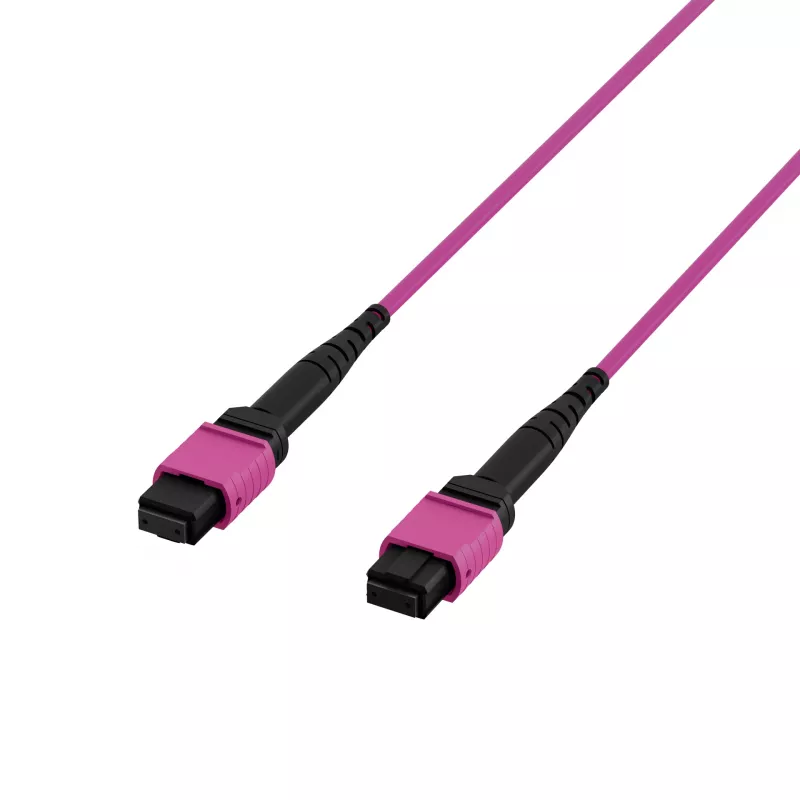

EFB Cable de parcheo matriz MTP-F/MTP-F 36 fibras OM4, LSZH violeta Erika, Type-A, 30m MTPF36MTPFOM4-30-A

With 36 OM4 fibers and MTP-F connectors on both ends, this patch cable delivers high-density connectivity for data center backbones. The 30-meter length and Type A polarity ensure consistent, reliable links in demanding environments.

Overview

The EFB MTP-F/MTP-F 36-Fiber Matrix Patch Cable is engineered for high-density fiber optic interconnects. It features 36 multimode OM4 fibers terminated with female MTP connectors, providing a compact and efficient solution for backbone cabling in data centers and enterprise networks.

What stands out

• 36 OM4 fibers in a single cable for maximum density
• MTP-F (female) connectors on both ends for direct connection to cassettes or panels
• Type A polarity for straightforward, consistent installations
• LSZH jacket in Erika Violet for safety and easy identification
• 30-meter length ideal for backbone runs between racks or zones

Technical details

• Connector Type A: MTP-F (Female)
• Connector Type B: MTP-F (Female)
• Fiber Count: 36
• Fiber Mode: Multimode
• Fiber Class: OM4
• Cable Length: 30 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Erika Violet
• Polarity Type: Type A
• Core/Cladding Diameter: 50/125 µm
• Bandwidth (850nm): 4700 MHz*km
• Bandwidth (1300nm): 500 MHz*km
• Attenuation (850nm): ≤ 3.0 dB/km
• Attenuation (1300nm): ≤ 1.0 dB/km
• Connector Loss (Max): 0.35 dB
• Application: High-density data center interconnects, backbone cabling

Our verdict

A high-density OM4 solution with 36 fibers and MTP-F connectors, ideal for backbone cabling in modern data centers. The LSZH jacket and Type A polarity add safety and simplicity.
