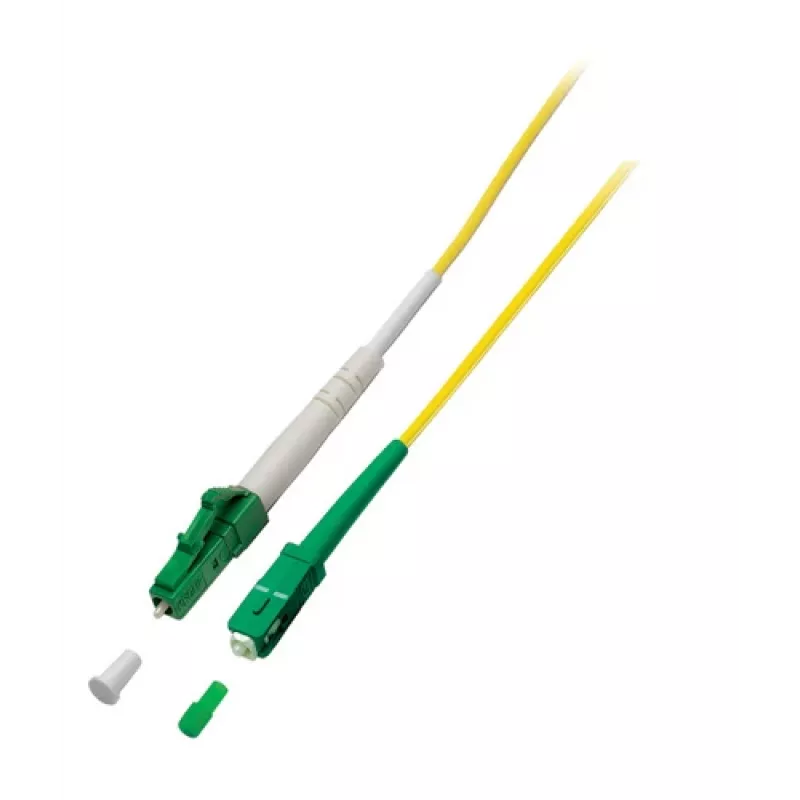

EFB cable de parcheo simplex LC/APC-SC/APC OS2 G657A2 3m LSZH 2mm amarillo

The EFB Simplex Patch Cable LC/APC to SC/APC is a high-quality fiber optic patch cable designed for single-mode applications. With a length of 3 meters and a yellow LSZH jacket, this cable ensures reliable and safe data transmission in indoor environments. It complies with OS2 (G.657.A1) standards and features low insertion loss and high return loss, making it ideal for FTTH, data centers, and telecommunications networks.

Advantages

This patch cable offers excellent performance with low insertion loss (≤0.25 dB) and high return loss (≥60 dB), ensuring minimal signal degradation. The LSZH jacket provides safety in case of fire, emitting low smoke and no halogen. The 2 mm diameter and 10 mm minimum bend radius allow for flexible installation in tight spaces.

Suitable for

• Fiber-to-the-home (FTTH) networks
• Data centers and server rooms
• Telecommunications infrastructure
• Indoor cabling applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Standard: OS2 (G.657.A1)
• Connector Type (End 1): SC/APC
• Connector Type (End 2): SC/APC
• Cable Structure: Simplex
• Number of Fibers: 1
• Cable Length: 3 m
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 2.0 mm
• Insertion Loss (typical): ≤ 0.25 dB
• Return Loss (typical): ≥ 60 dB
• Operating Wavelengths: 1310 nm, 1550 nm
• Minimum Bend Radius: 10 mm
• Application: Indoor
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC/APC interfaces and is suitable for use with optical transceivers and patch panels.
