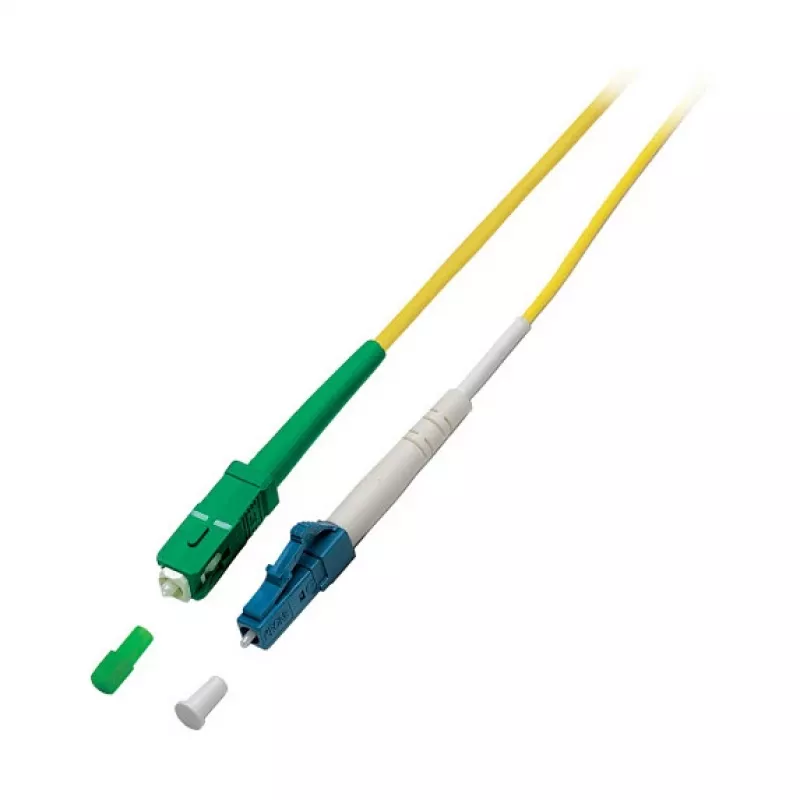

EFB cable de parcheo simplex LC-SC/APC OS2 G657A2 1m LSZH 2mm amarillo

The EFB Simplex Patch Cable LC-SC/APC OS2 G657A2 1m LSZH 2mm Yellow is a high-performance fiber optic patch cable designed for reliable single-mode connections in data centers, enterprise networks, and telecommunications. Manufactured by EFB Elektronik, this cable features LC to SC/APC connectors with a bend-insensitive G.657.A2 fiber, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers exceptional durability and performance with its LSZH (Low Smoke Zero Halogen) jacket, making it safe for use in enclosed spaces. The bend-insensitive fiber allows for tight bends without signal degradation, simplifying installation in crowded patch panels. With typical insertion loss ≤0.3 dB and return loss ≥50 dB, it ensures reliable data transmission.

Suitable for

• Data centers requiring high-density cabling
• Enterprise network infrastructure
• Telecommunication systems
• Fiber-to-the-home (FTTH) applications

Key specifications

• Connector Type: LC to SC/APC
• Fiber Mode: Single-Mode (OS2)
• Fiber Standard: G.657.A2 (Bend-Insensitive)
• Core/Cladding: 9/125 µm
• Cable Length: 1 meter
• Jacket Material: LSZH
• Jacket Color: Yellow
• Cable Diameter: 2 mm
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥50 dB
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for short-distance single-mode links requiring high reliability.
