EFB Caja para carril DIN OS2 G652D 12xSC/APC pigtail desplazado 6x acoplador SC/APC dúplex

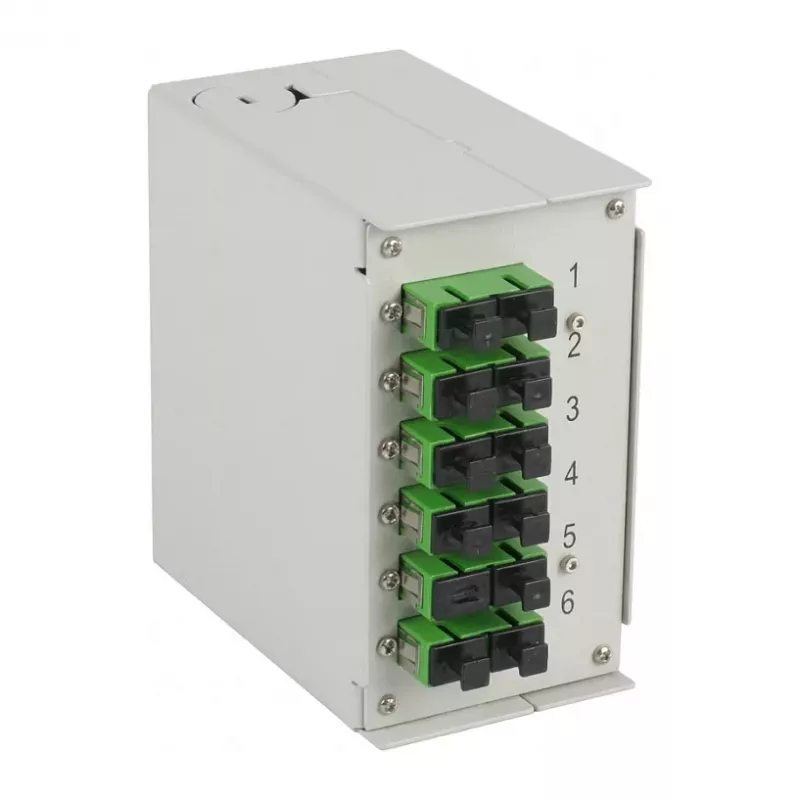

The EFB BHS70228.12 is a high-quality fiber optic distribution box designed for DIN rail mounting. It is pre-assembled with 12 SC/APC pigtails and 6 SC/APC duplex adapters, making it ideal for industrial networks, building automation, and FTTH applications. The housing is made of powder-coated steel sheet in light grey (RAL 7035) and provides integrated cable management for fiber routing and strain relief.

Advantages

Pre-assembled with pigtails and adapters for quick installation. Compact design saves space on DIN rails. Robust metal housing ensures durability in industrial environments. Integrated splice capacity up to 12 splices.

Suitable for

• Industrial Ethernet networks
• Building automation systems
• FTTH (Fiber to the Home) installations
• Data center patching

Key specifications

• Product Type: Fiber Optic Distribution Box
• Mounting: DIN Rail (Hutschiene)
• Fiber Type: Singlemode OS2 G.652D
• Number of Fibers: 12
• Pigtail Connector: SC/APC (12 pieces)
• Adapter: SC/APC Duplex (6 pieces)
• Housing Material: Powder-coated Steel Sheet
• Housing Color: Light Grey (RAL 7035)
• Splice Capacity: Up to 12 splices
• Pre-assembled: Yes

Recommendations

For optimal performance, use with OS2 singlemode fiber cables and SC/APC connectors. Ensure proper strain relief and cable management as per installation guidelines.
