EFB Conector RJ45 STP Cat.8.1 conector de bayoneta montaje en campo (89062.1)

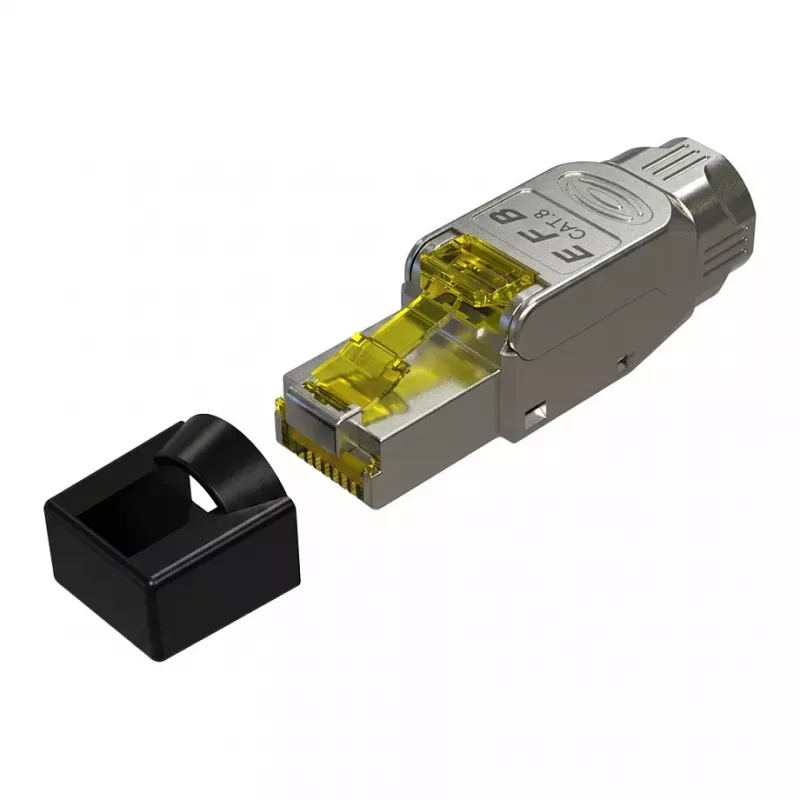

The EFB RJ45 Plug STP Cat.8.1 Field-Terminable Bayonet Connector (model 89062.1) is a high-performance, shielded RJ45 plug designed for professional network installations requiring Category 8.1 performance. This field-terminable connector supports data transfer rates up to 40 Gigabit Ethernet (40GBASE-T) and a frequency bandwidth of up to 2000 MHz, making it ideal for high-speed data centers, enterprise networks, and industrial environments. The bayonet locking mechanism ensures quick and secure housing closure without the need for tools, while the full metal shielding provides excellent EMI/RFI protection.

Advantages

Tool-free field termination saves installation time and reduces labor costs. The reusable design (up to 5-10 times) allows for easy reconfiguration and maintenance. Robust die-cast zinc housing with nickel plating ensures durability and long-term reliability. Gold-plated contacts (min. 50µ") guarantee optimal conductivity and corrosion resistance. Wide compatibility with solid and stranded conductors (AWG 22-26) and support for PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) make it versatile for various applications.

Suitable for

• High-speed data center cabling
• Enterprise network infrastructure
• Industrial Ethernet applications
• 40GBASE-T and 25GBASE-T deployments
• Power over Ethernet (PoE) installations

Key specifications

• Connector Type: RJ45 Plug (Male)
• Performance Standard: Category 8.1 (Cat.8.1)
• Shielding: STP (Shielded Twisted Pair) / Full Metal Shielded
• Termination Method: Field-terminable, Tool-free
• Contact Configuration: 8P8C (8 Positions, 8 Conductors)
• Data Transfer Rate: Up to 40 Gigabit Ethernet (40GBASE-T)
• Frequency Bandwidth: Up to 2000 MHz
• Cable Compatibility: Solid and Stranded Conductors
• Wire Gauge Support: AWG 22-26
• Conductor Diameter: 0.40 - 0.64 mm
• Insulation Diameter: 0.95 - 1.60 mm
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Housing Material: Die-cast Zinc (Nickel-plated)
• Contact Material: Phosphor Bronze
• Contact Plating: Gold-plated (min. 50µ")
• Reusability: Reusable (up to 5-10 times)
• Operating Temperature: -40°C to +85°C
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2, IEC 60603-7-81
• Locking Mechanism: Bayonet-type (for quick housing closure)

Recommendations

For optimal performance, use with Cat.8.1 or higher shielded twisted pair cable. Ensure proper cable preparation and insertion depth as per manufacturer guidelines. The connector is suitable for both solid and stranded conductors; for stranded conductors, a crimp tool may be required for best results. Always verify compatibility with your specific cable type before installation.
