EFB E-20094-24 RJ45 Keystone Slimline/Shortbody Cat.6A certificado por componentes plateado, 24 uds.

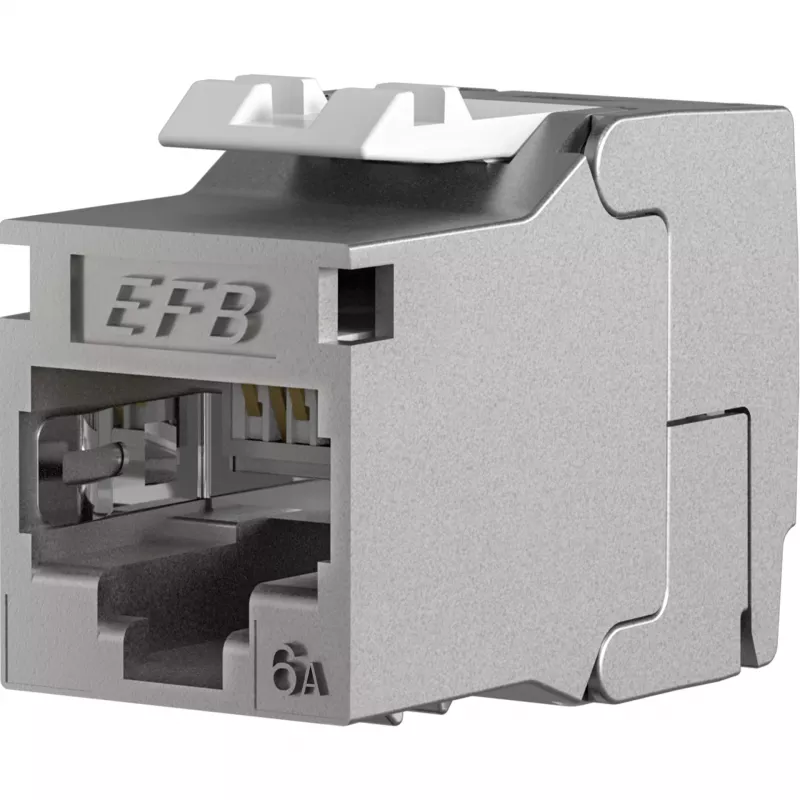

This RJ45 Keystone Slimline/Shortbody module delivers Cat.6A performance with component certification, enabling 10 Gigabit Ethernet in a compact die-cast zinc housing. The silver shielded jack supports tool-free IDC termination for solid or stranded 22-24 AWG conductors, making it ideal for high-density patch panels and wall outlets.

Advantages

The slimline design saves space in standard keystone ports while maintaining full Cat.6A shielding. Gold-plated contacts (50µ") ensure reliable connectivity over more than 750 insertion cycles. Color-coded T568A/T568B wiring simplifies installation.

Suitable for

• 10GBASE-T network installations requiring component-certified Cat.6A connectivity
• High-density patch panels, wall plates, and surface-mount boxes
• Shielded cabling systems in office, data center, and industrial environments

Key specifications

• Connector type: RJ45 keystone jack, shielded (FTP/STP)
• Performance: Category 6A, 500 MHz bandwidth, 10 Gigabit Ethernet
• Termination: Tool-free IDC, 22-24 AWG solid or stranded
• Housing: Die-cast zinc, slimline/shortbody design
• Contact plating: Gold, 50µ"
• Insertion cycles: >750
• Operating temperature: -10°C to +60°C

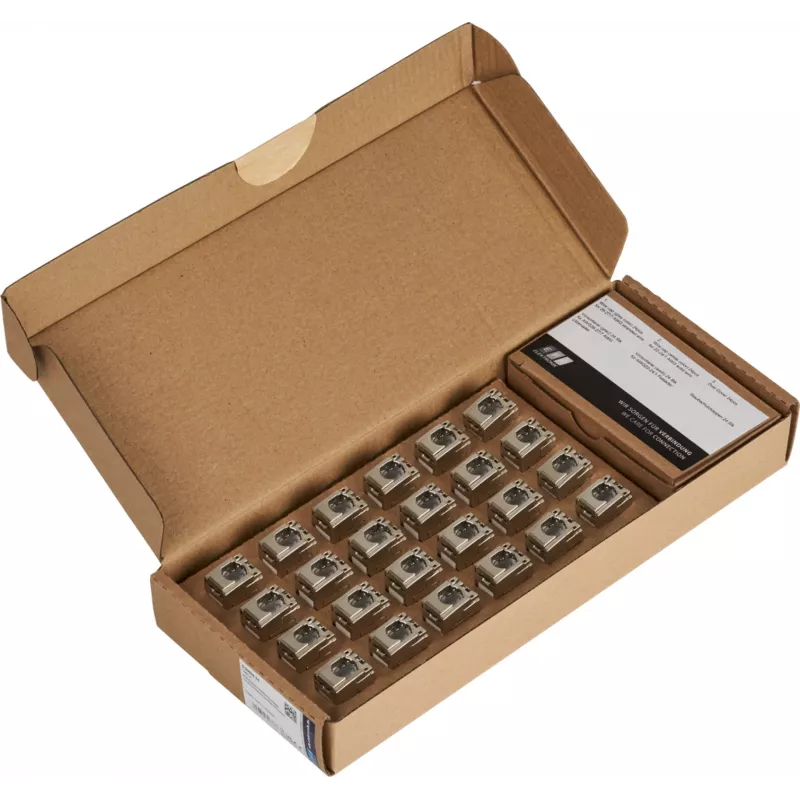

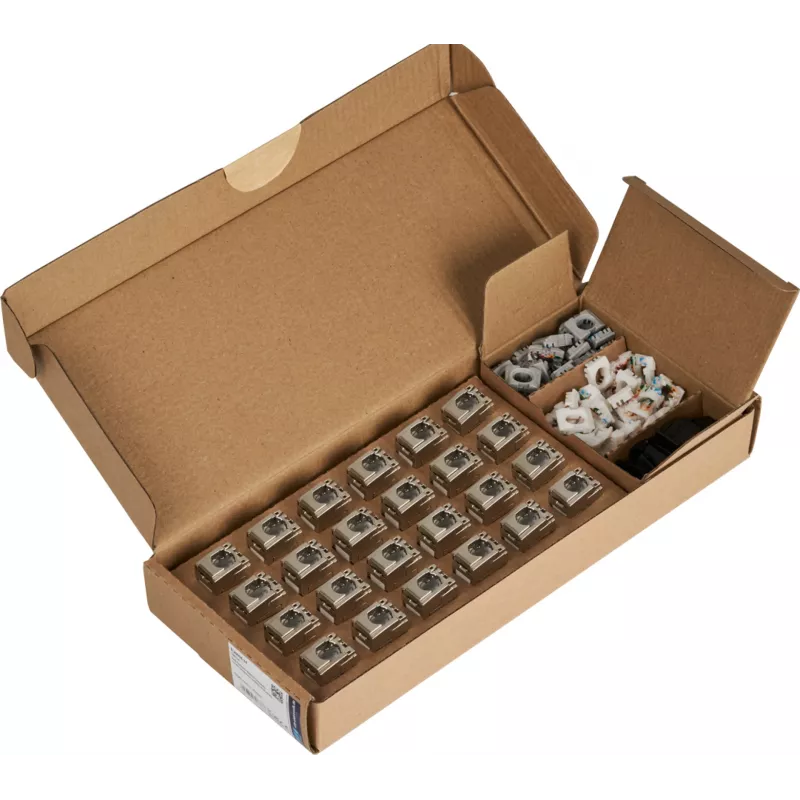

• Pack quantity: 24 pieces

Recommendations

Use with shielded Cat.6A patch cables and connectors to maintain end-to-end shielding and achieve full component-certified channel performance.
