EFB Electronics armario de pared de 19" IP55, 12U, puerta de acero, profundidad 600 mm, RAL 7035 gris claro

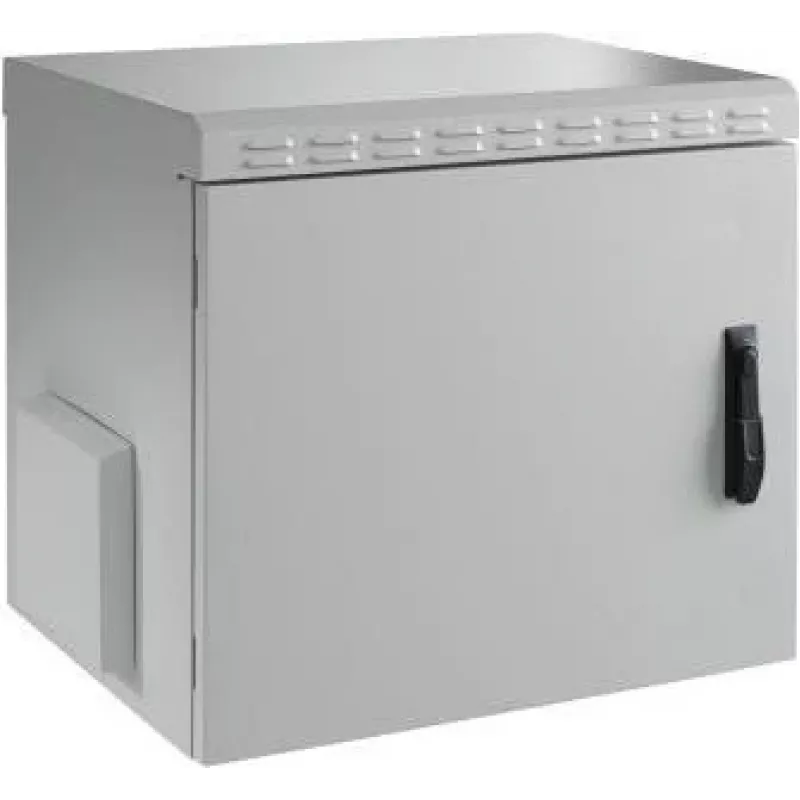

The EFB Electronics 691712IP55.2 is a robust 19-inch wall-mount enclosure designed for demanding indoor or protected outdoor environments. With IP55 protection, it safeguards sensitive network and IT equipment against dust and water jets. The enclosure features a welded steel frame, a lockable steel front door, and depth-adjustable rack rails for flexible installation.

Advantages

This enclosure offers reliable protection and easy cable management. The IP55 rating ensures durability in harsh conditions, while the lockable door provides security. The top and bottom cable entries with knockouts simplify wiring, and the light grey RAL 7035 finish blends well with professional environments.

Suitable for

• Network switches, patch panels, and servers in industrial or outdoor-adjacent locations
• Telecommunications and data distribution in warehouses, factories, or building automation
• Secure housing for critical IT infrastructure requiring dust and water protection

Key specifications

• Rack standard: 19 inch (48.3 cm)
• Height units: 12U
• Protection class: IP55
• Mounting type: Wall-mounted
• External depth: 600 mm
• Door type: Steel door with lock
• Colour: RAL 7035 (Light Grey)
• Material: Steel
• Number of doors: 1 (front)
• Rear panel: Fixed
• Side panels: Fixed
• Rack rails: Two pairs (front and rear), depth-adjustable
• Cable entry: Top and bottom with knockouts
• Ventilation: Passive ventilation options
• Compliance: RoHS compliant

Recommendations

For optimal cable management, use with EFB patch panels and cable management accessories. Ensure wall mounting on a solid surface capable of supporting the weight of the enclosure and installed equipment.
