EFB Electronics IPL-DR-LCULCU-5-0050 Cable de fibra óptica, OM5, LC/UPC a LC/UPC, 0,5 m, LSZH, Verde lima

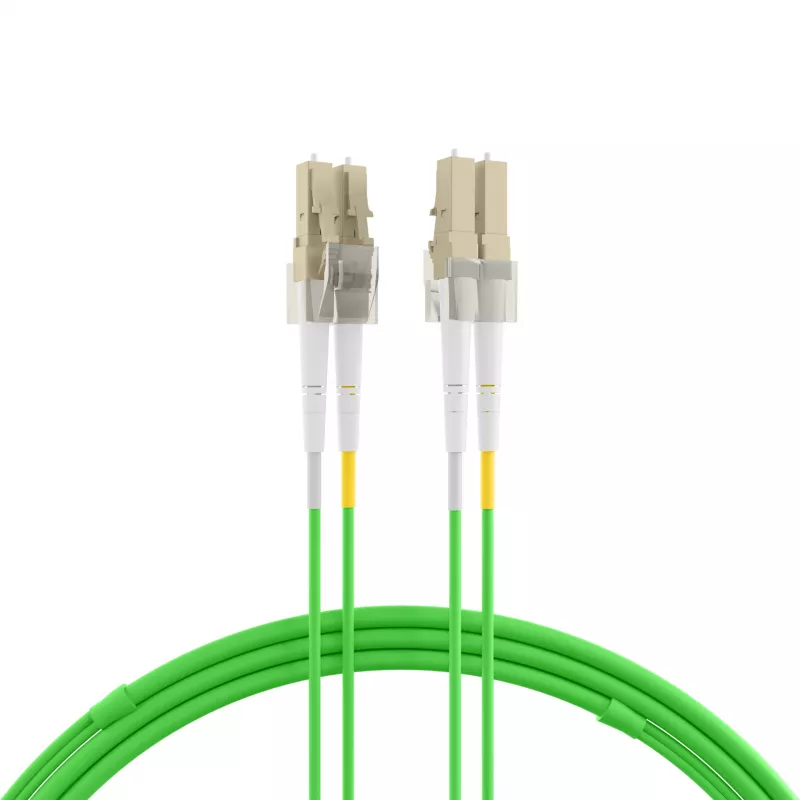

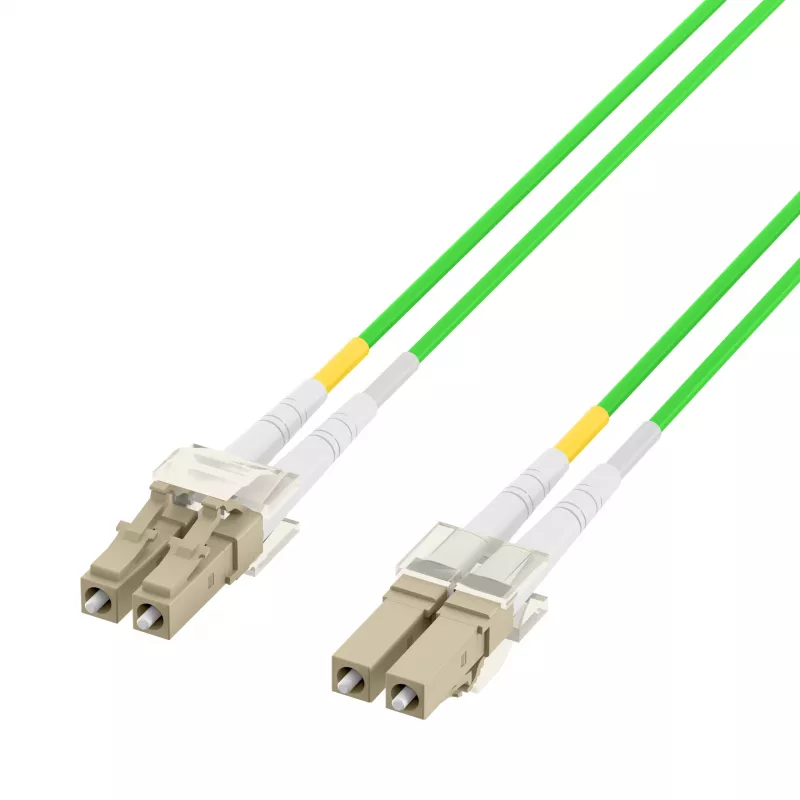

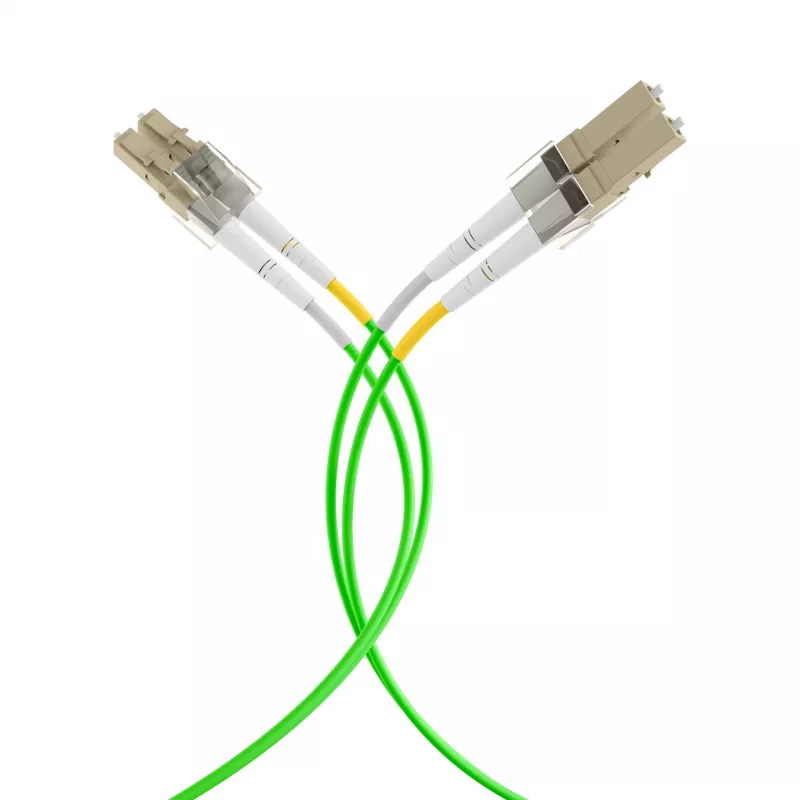

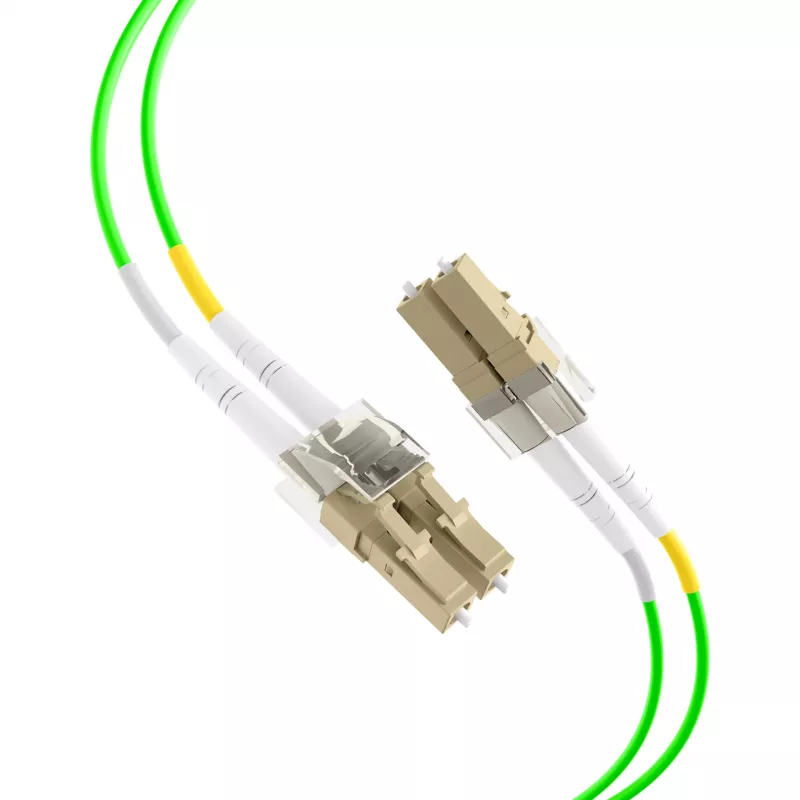

The EFB Electronics IPL-DR-LCULCU-5-0050 is a high-performance fiber optic patch cable designed for demanding network environments. With OM5 wideband multimode fiber (WBMMF) and duplex LC/UPC connectors, this 0.5-meter cable supports high-speed data transmission over multiple wavelengths, making it ideal for next-generation data centers and enterprise networks.

Advantages

OM5 fiber provides enhanced bandwidth and supports multiple wavelengths (850-953 nm), enabling future-proof network upgrades. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces by reducing toxic smoke and corrosive gases in case of fire. The lime green color allows easy identification of OM5 cabling.

Suitable for

• Data center interconnects
• High-speed local area networks (LANs)
• Storage area networks (SANs)
• Telecommunications rooms
• Short-reach optical links

Key specifications

• Fiber type: Multimode OM5 (WBMMF)
• Connectors: LC/UPC to LC/UPC, duplex
• Cable length: 0.5 m
• Jacket material: LSZH, lime green
• Core/cladding: 50/125 µm
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Operating temperature: -20°C to 70°C

Recommendations

For optimal performance, ensure clean and properly mated connectors. Use appropriate cable management to avoid bending beyond the minimum bend radius. This cable is compatible with all standard LC/UPC interfaces.
