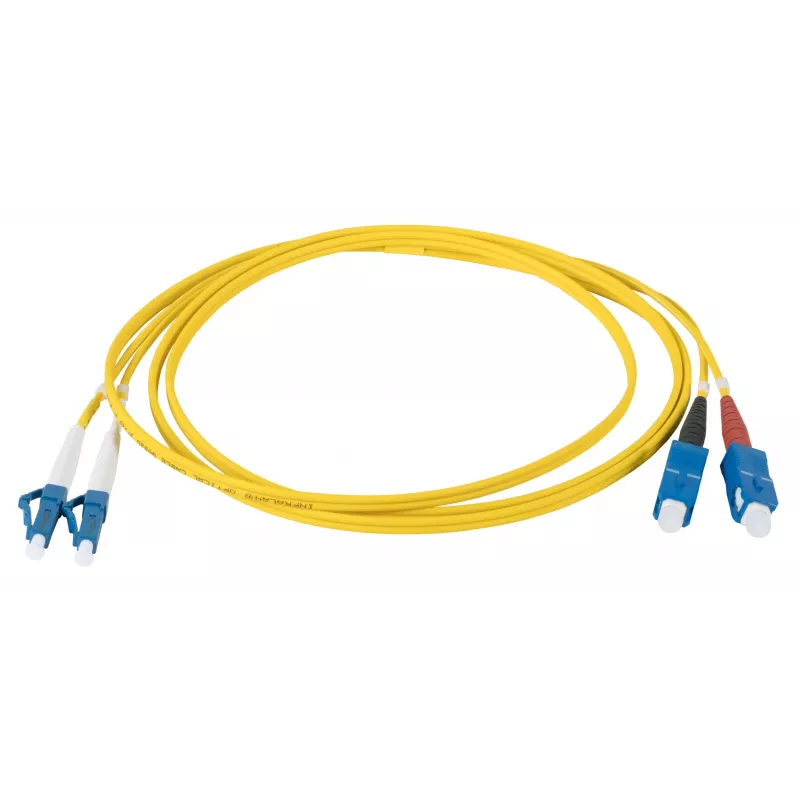

EFB Electronics IPL-DR-LCUSCU-2-0750 Cable de conexión de fibra óptica, 7,5 m, OS2, LC-SC, amarillo

The EFB Electronics IPL-DR-LCUSCU-2-0750 is a high-performance fiber optic patch cable designed for reliable single-mode connections in data centers, telecommunications, and LAN networks. With a length of 7.5 meters and OS2 fiber type, it ensures low signal loss and high bandwidth for demanding applications.

Advantages

This cable features LC to SC duplex connectors with UPC polish, providing insertion loss ≤0.3 dB and return loss ≥50 dB. The LSZH jacket ensures safety in enclosed spaces, while the I-V(ZN)H construction allows indoor/outdoor use. Compatible with G.657.A1/A2 and G.652.D standards.

Suitable for

• Data center interconnects
• Telecommunications networks
• Local area networks (LAN)
• FTTx deployments

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Length: 7.5 m
• Fiber Mode: Single-mode
• Fiber Type: OS2 (G.657.A1/A2 & G.652.D)
• Connector A: LC Duplex
• Connector B: SC Duplex
• Number of Fibers: 2
• Jacket Material: LSZH
• Jacket Color: Yellow
• Connector Polish: UPC
• Insertion Loss (Max): ≤0.3 dB per connector
• Return Loss (Min): ≥50 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius: 10 mm
• Standards: RoHS, REACH, TIA/EIA-568-C.3, IEC 60794-2

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-speed data transmission up to 10 Gbps and beyond.
