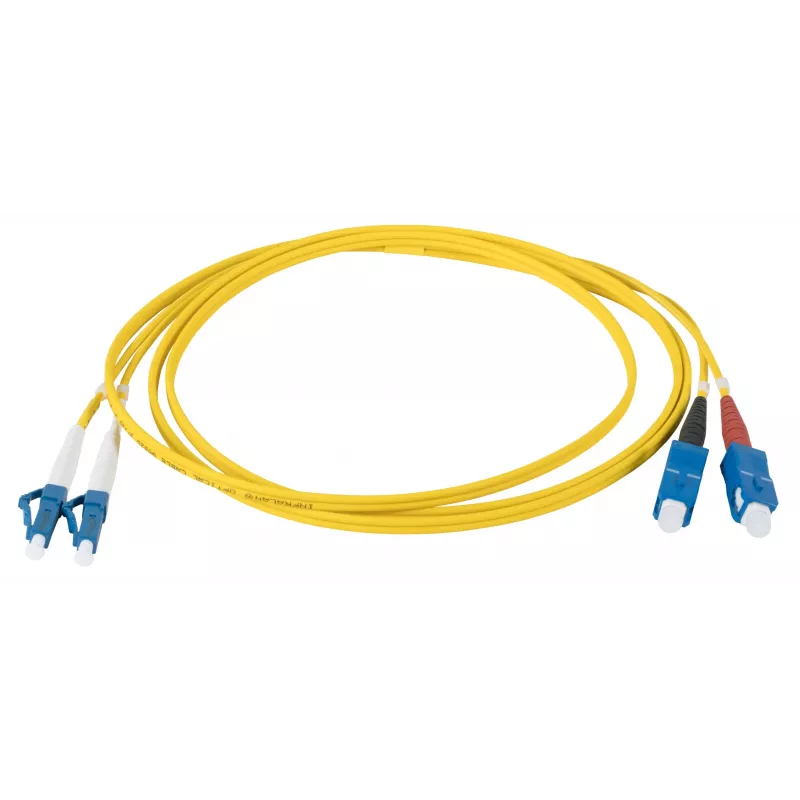

EFB Electronics IPL-DR-LCUSCU-2-1000 Cable de conexión de fibra óptica, OS2, LC a SC, 10 m, Amarillo

The EFB Electronics IPL-DR-LCUSCU-2-1000 is a high-quality fiber optic patch cable designed for reliable single-mode connections. With a length of 10 meters and duplex LC to SC connectors, this cable is ideal for data centers, telecommunications, and enterprise networks requiring low signal loss and high return loss.

Advantages

This patch cable offers excellent performance with maximum insertion loss of ≤0.3 dB and minimum return loss of ≥50 dB, ensuring stable and efficient data transmission. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in indoor environments by reducing toxic fumes in case of fire. The rugged I-V(ZN) H construction makes it suitable for both indoor and outdoor use, with rodent protection for added durability.

Suitable for

• Data center cabling infrastructure
• Telecommunications networks
• Enterprise LAN and WAN connections
• FTTx and CATV systems
• High-speed data transmission up to 10 Gbps and beyond

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode (OS2)
• Connector Type A: LC UPC
• Connector Type B: SC UPC
• Cable Length: 10 m
• Number of Fibers: 2 (Duplex)
• Jacket Material: LSZH
• Cable Construction: I-V(ZN) H
• Jacket Color: Yellow
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Maximum Insertion Loss: ≤ 0.3 dB
• Minimum Return Loss: ≥ 50 dB
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60794, TIA/EIA-568-C.3, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC interfaces. Pair with EFB Electronics patch panels and enclosures for a complete cabling solution.
