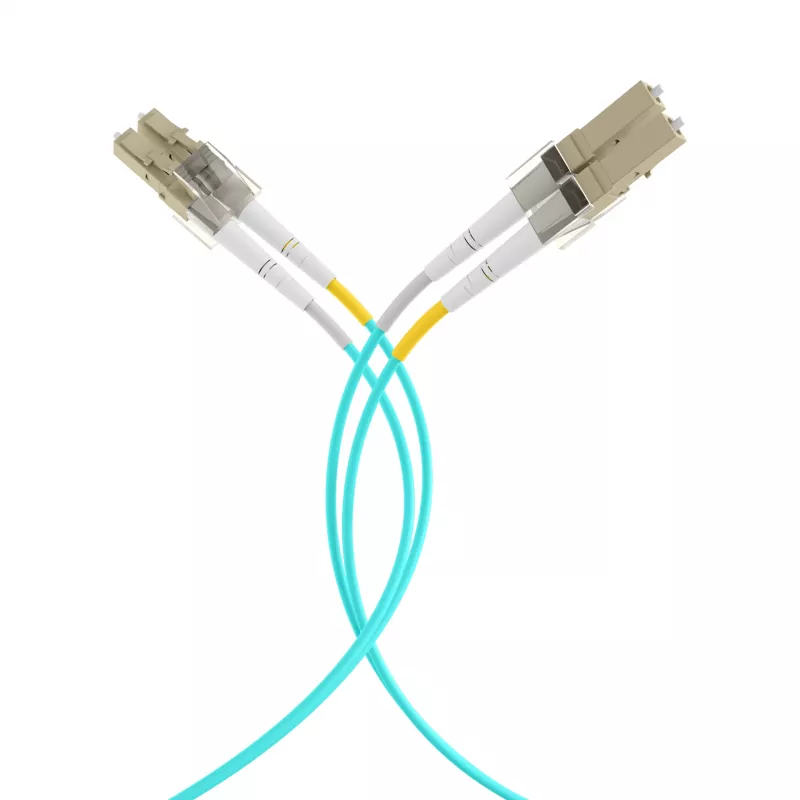

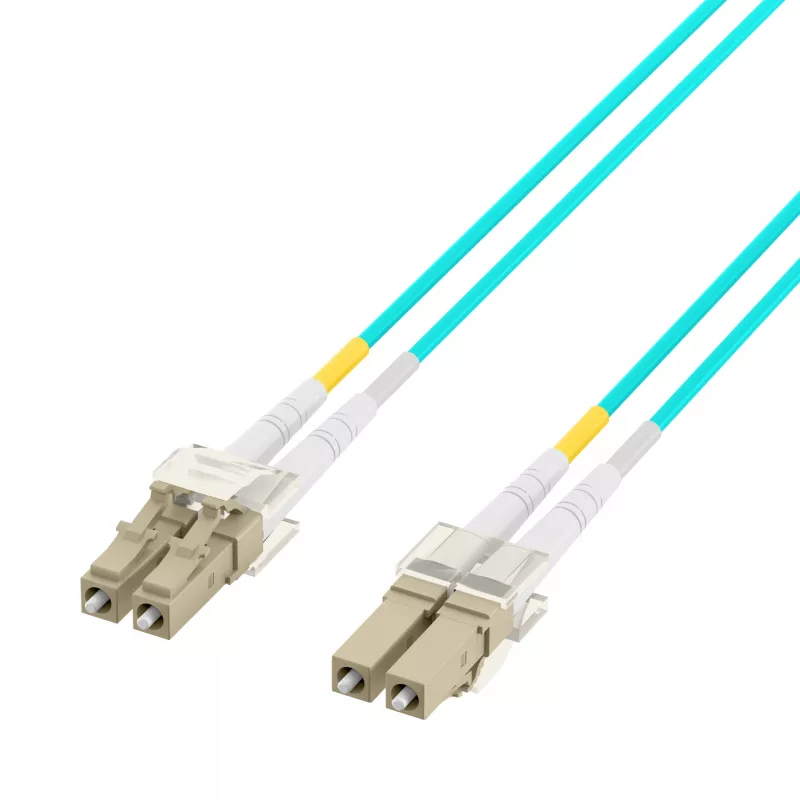

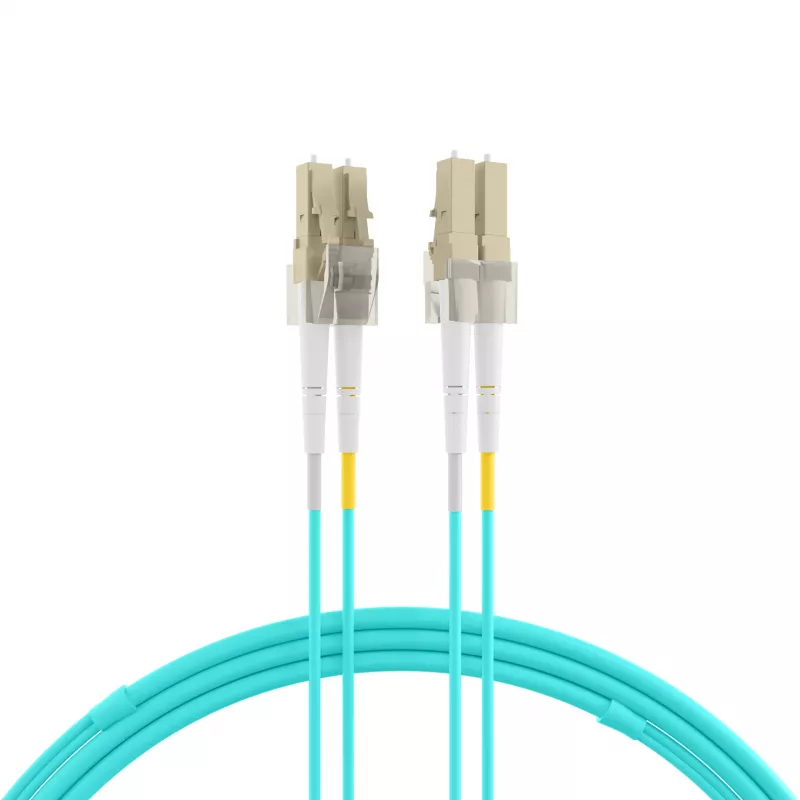

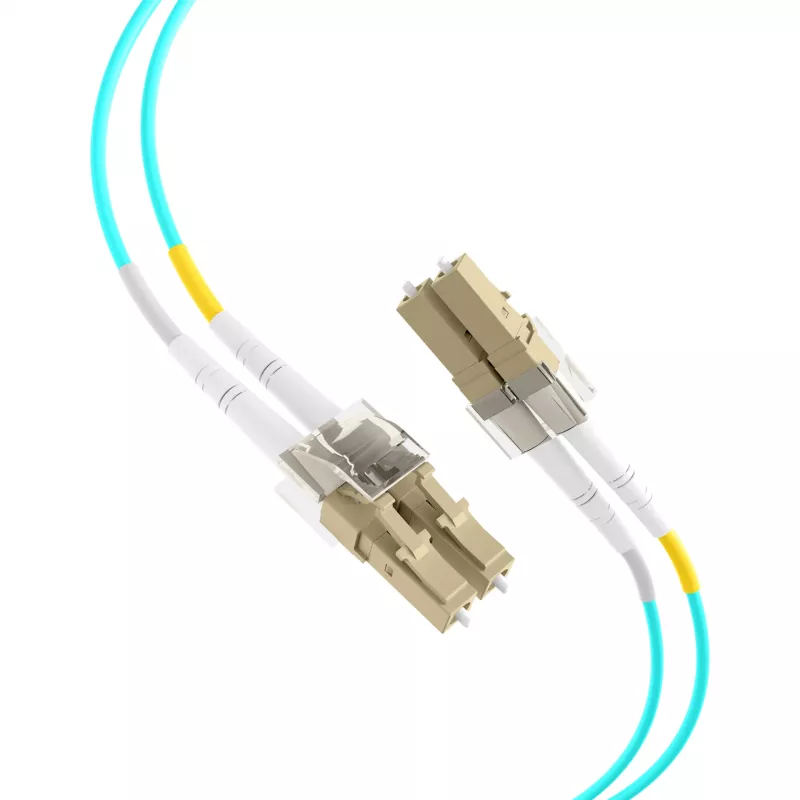

EFB Electronics Latiguillo Dúplex LC-LC 50/125 OM3 LSZH Aqua Flat Twin 3x5mm 5m

The EFB Electronics Duplex Jumper LC-LC 50/125 OM3 LSZH Aqua Flat Twin 3x5mm 5m is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. This duplex jumper features LC to LC connectors and is built with OM3 multimode fiber, supporting 10 Gigabit Ethernet and higher data rates. The cable jacket is made of Low Smoke Zero Halogen (LSZH) material, ensuring safety in confined spaces, and the flat twin construction (3x5mm) allows for easy installation in tight spaces. Ideal for data centers, LANs, SANs, and FTTx applications.

Advantages

This cable offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation. The LSZH jacket reduces toxic smoke in case of fire, making it suitable for indoor use. The flat twin design saves space and simplifies cable management.

Suitable for

• Data centers
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Fiber to the x (FTTx)

Key specifications

• Fiber Mode: Multimode (OM3)
• Core/Cladding: 50/125 µm
• Connectors: LC Duplex to LC Duplex
• Length: 5 m
• Jacket: LSZH, Aqua
• Construction: Duplex Flat Twin (3x5mm)
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥30 dB
• Operating Temperature: -20°C to +70°C
• Standards: IEC 60793-2-10, TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC duplex interfaces.
