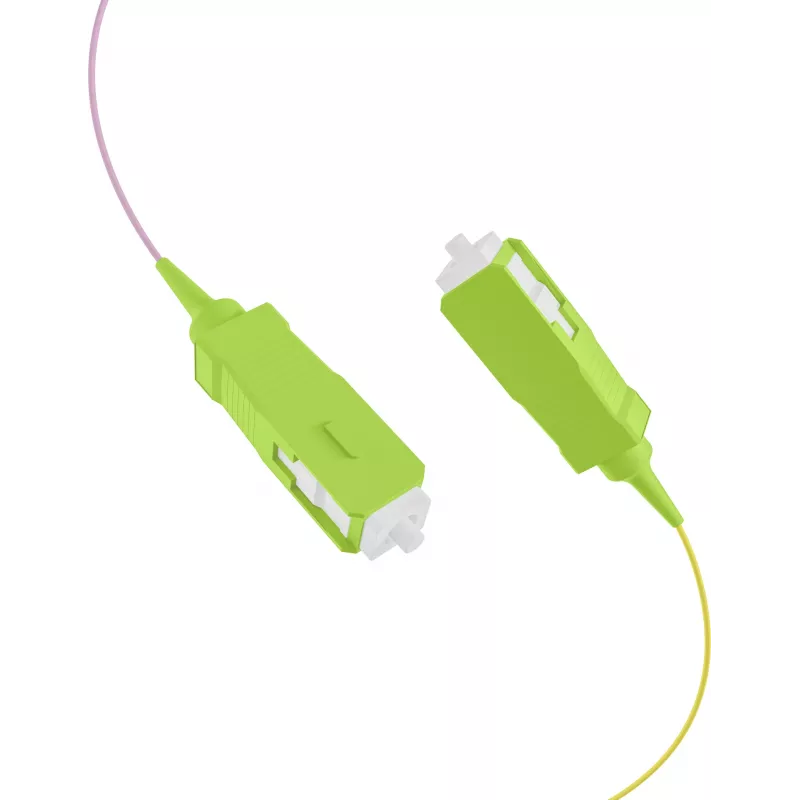

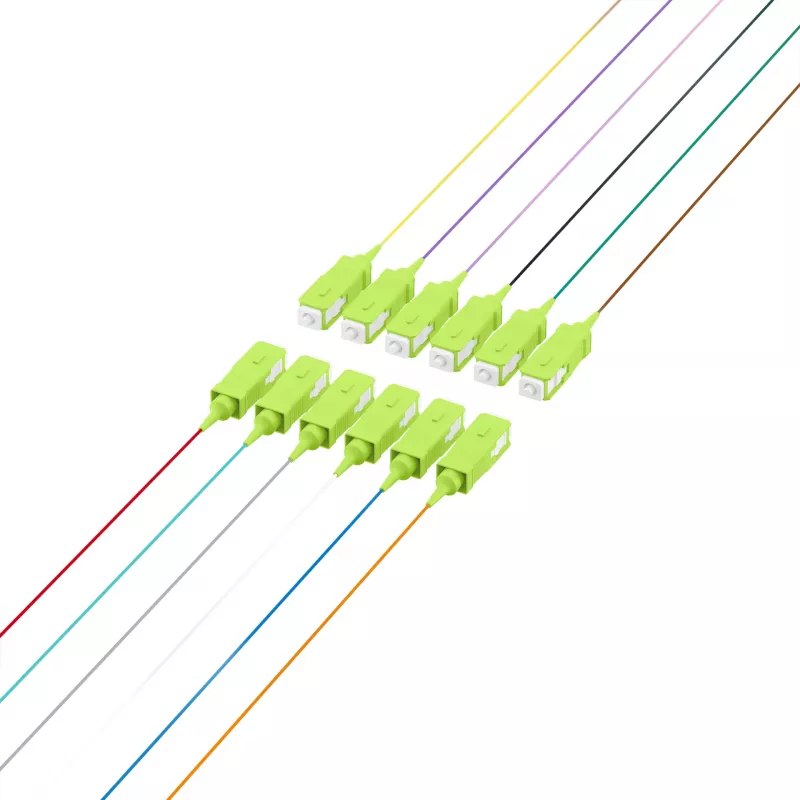

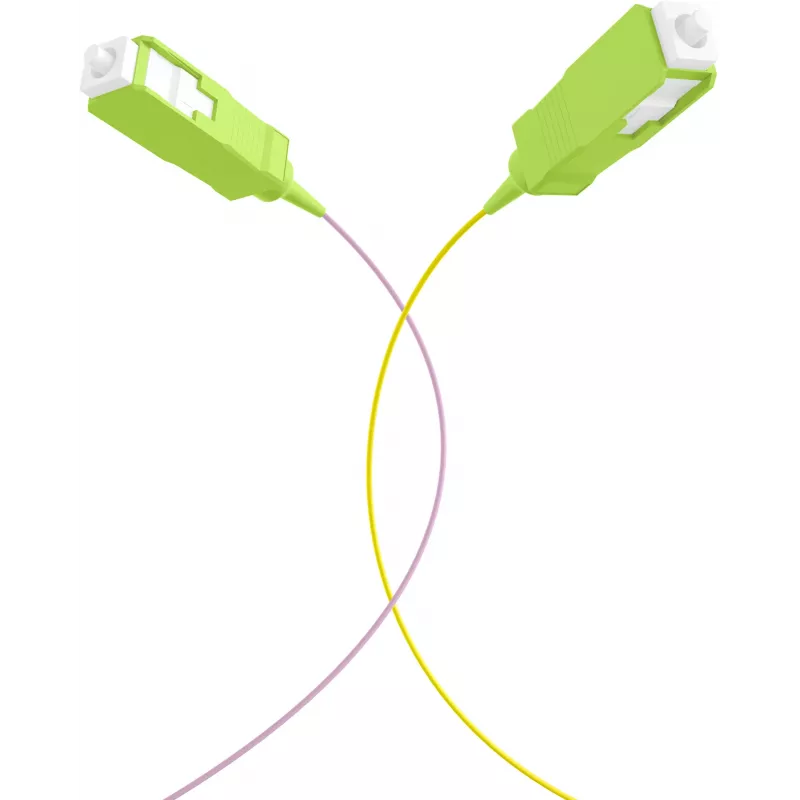

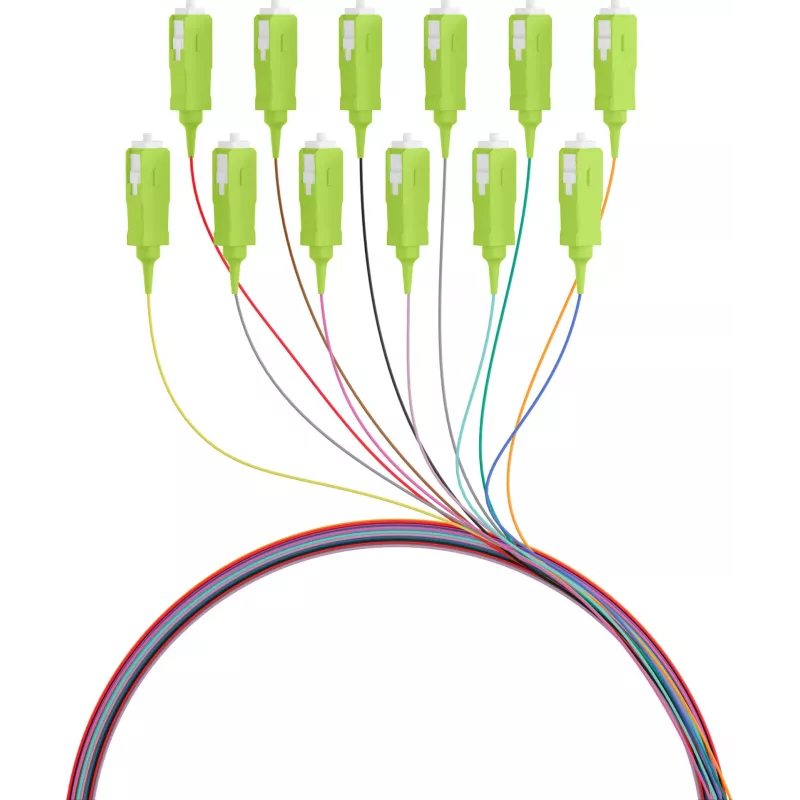

EFB Electronics pigtail de fibra SC 50/125 OM5 set de 12 colores 2m - set de cable/adaptador - Singlemode o Multimode

The EFB Electronics Fibre Pigtail SC 50/125 OM5 12-Colour Set 2m is a high-quality cable/adapter set designed for indoor fibre optic installations. This set includes 12 individually coloured pigtails, each 2 meters long, with SC connectors and a 50/125 µm OM5 multimode fibre core. The pigtails are colour-coded according to DIN VDE 0888 for easy identification and organisation. With low insertion loss (max. 0.3 dB) and high return loss (min. 35 dB), this set ensures reliable signal transmission. The LSZH (Low Smoke Zero Halogen) jacket material provides safety in enclosed spaces. Ideal for data centres, telecommunications, and structured cabling.

Advantages

High-quality OM5 fibre supports high-bandwidth applications. Colour-coded pigtails simplify installation and maintenance. LSZH jacket enhances fire safety. Low insertion loss ensures efficient signal transfer.

Suitable for

• Data centre fibre optic patching
• Telecommunications network termination
• Structured cabling systems
• Indoor fibre optic installations requiring OM5 performance

Key specifications

• Connector Type: SC
• Fibre Type: Multimode OM5
• Core/Cladding: 50/125 µm
• Number of Fibres: 12
• Cable Length: 2 m
• Jacket Material: LSZH
• Polish Type: PC
• Insertion Loss (Max.): 0.3 dB
• Return Loss (Min.): 35 dB
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, use with OM5-rated patch panels and connectors. Ensure proper cleaning of connectors before installation.
