EFB Electronics Protección de empalme por crimpado con homologación Telekom TS 0338/96

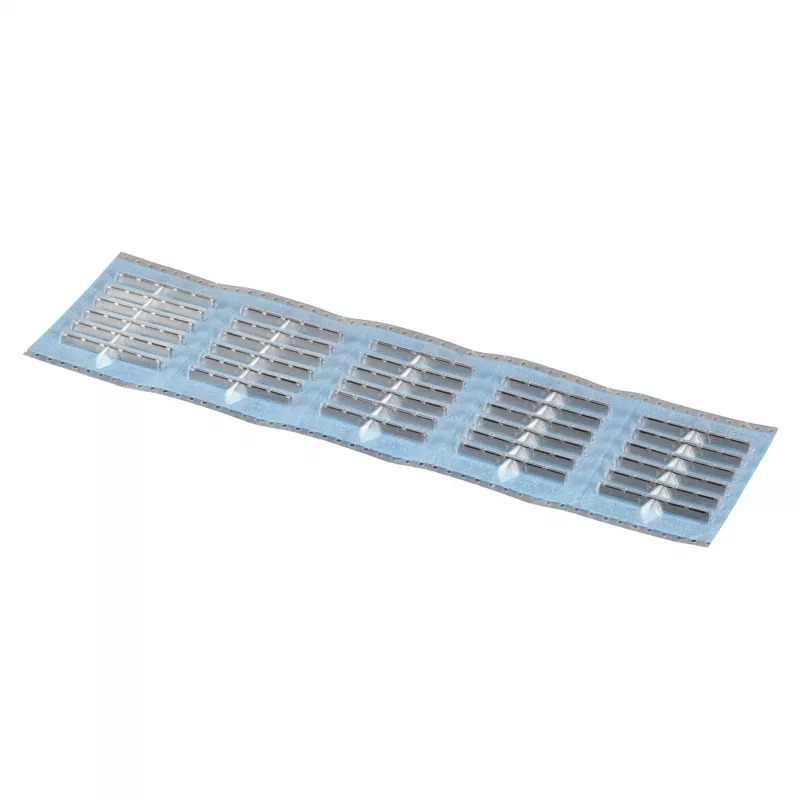

The EFB Electronics Crimp Splice Protection is a high-quality heat shrink splice protector designed for fiber optic fusion splices. It meets the stringent requirements of Deutsche Telekom approval TS 0338/96, ensuring reliable performance in telecommunications networks.

Advantages

This splice protector provides mechanical and environmental protection for single fiber optic splices. The stainless steel inner rod ensures strength and stability, while the transparent polyolefin outer tube allows for easy inspection. The EVA adhesive inner layer provides excellent sealing against moisture and contaminants.

Suitable for

• Fiber optic fusion splice protection in telecom networks
• Single-mode and multimode fiber splices
• Indoor and outdoor installations requiring Telekom approval

Key specifications

• Length: 60 mm
• Outer diameter before shrinking: approx. 3.5 mm
• Outer diameter after shrinking: approx. 2.5 mm
• Inner rod material: Stainless steel
• Inner rod diameter: approx. 1.0 mm
• Outer tube material: Polyolefin
• Inner adhesive material: EVA
• Shrink ratio: approx. 2:1
• Operating temperature: -40°C to +85°C
• Shrink temperature: 110°C - 130°C
• Color: Transparent

Recommendations

For optimal results, use with a compatible heat shrink oven or heat gun. Ensure the splice is clean and properly aligned before shrinking.
