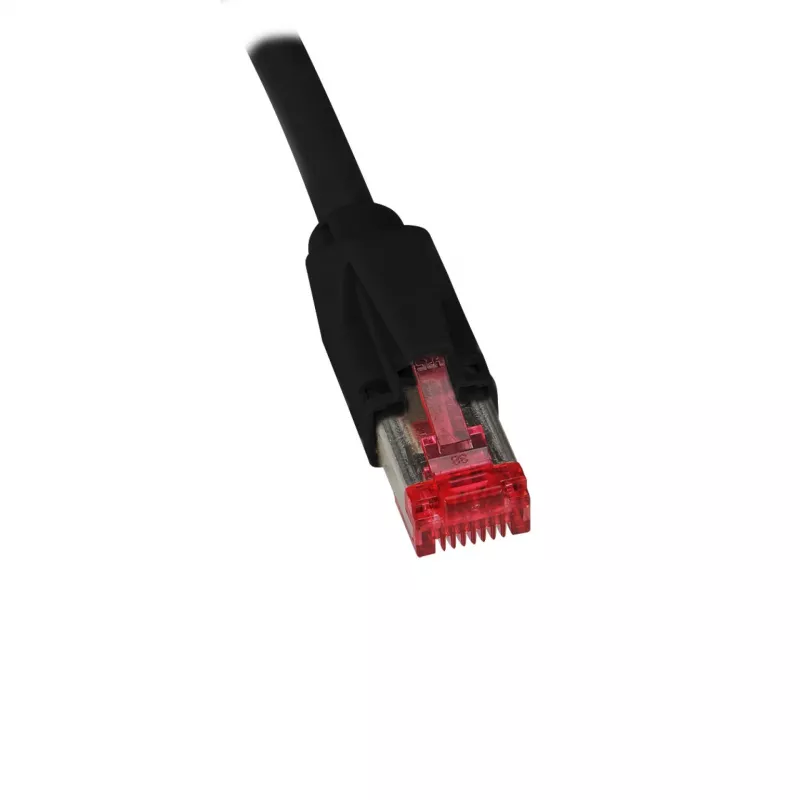

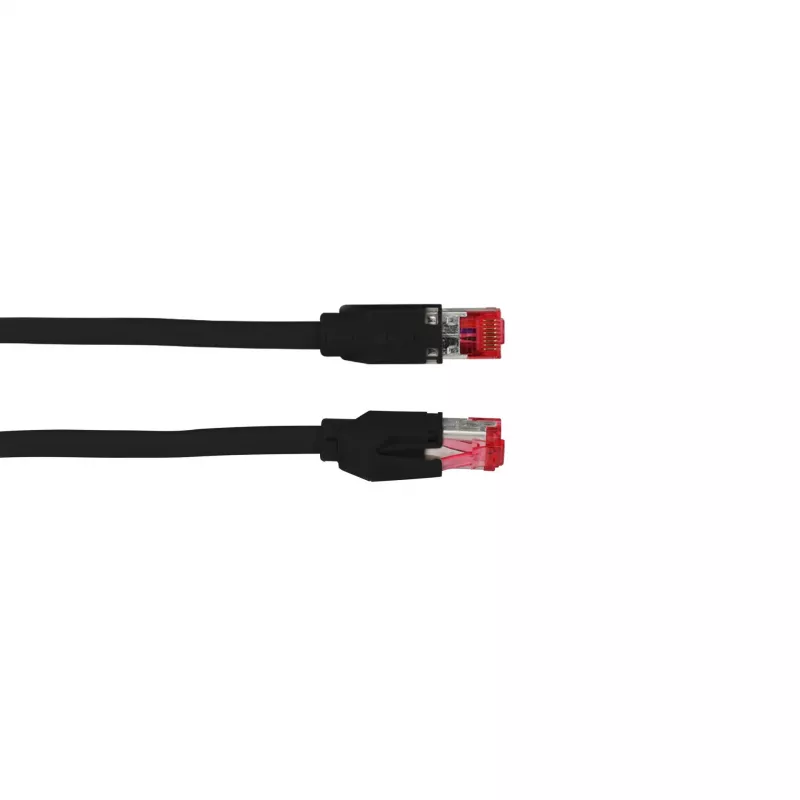

EFB Elektronik Cable de conexión Cat.7 S/FTP LSZH, RJ45, negro, 0,15 m K0700SW.0,15

Delivers 10 Gigabit Ethernet over a short 0.15 m run, with S/FTP shielding and LSZH jacket for dense, safety-conscious installations.

Overview

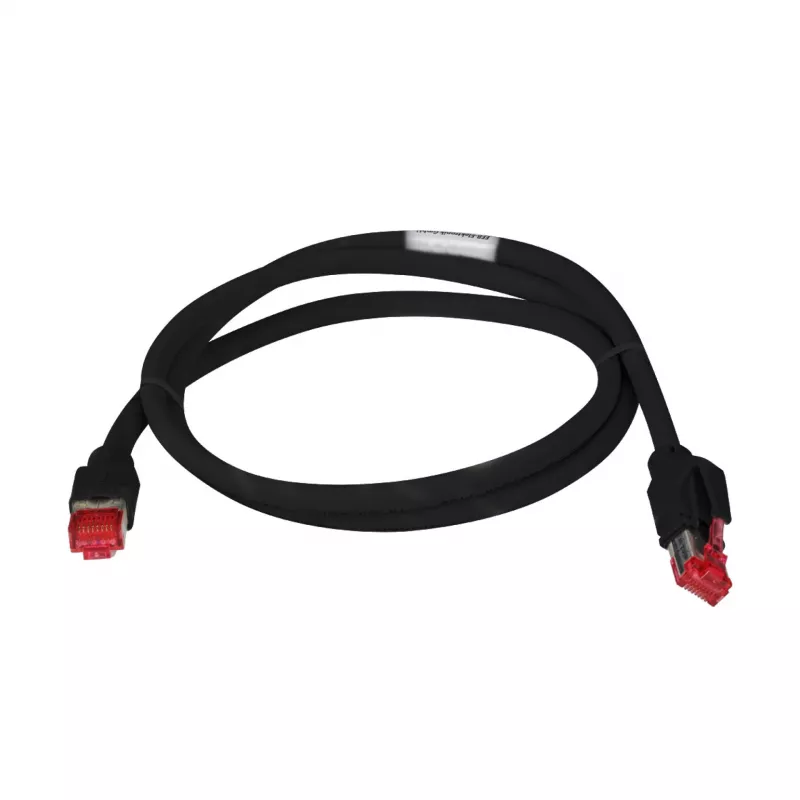

The EFB Elektronik K0700SW.0,15 is a Cat.7 patch cable with S/FTP shielding (screened foiled twisted pair) and a low smoke zero halogen (LSZH) jacket. It is terminated with RJ45 male connectors on both ends and is 0.15 m long, suitable for patching between adjacent ports in racks or wall outlets.

What stands out

• Cat.7 performance: 600 MHz bandwidth, supports 10GBASE-T up to 100 m.
• S/FTP shielding: each pair foiled, overall braid screen for excellent alien crosstalk resistance.
• LSZH jacket: low smoke and zero halogen, reduces toxic emissions in fire.
• Stranded 26 AWG conductors (7 strands) for flexibility in tight spaces.
• Gold-plated contacts for reliable connectivity.

Technical details

• Cable length: 0.15 m
• Colour: Black
• Connector type: RJ45 male to RJ45 male
• Shielding: S/FTP
• Category: Cat.7
• Bandwidth: 600 MHz
• Data rate: 10 Gbps
• Jacket material: LSZH
• Conductor: Copper, AWG 26/7 stranded
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating temperature: -20°C to +60°C

Our verdict

A compact, high-performance patch cable for 10G links in short-reach applications, with LSZH for added safety.
