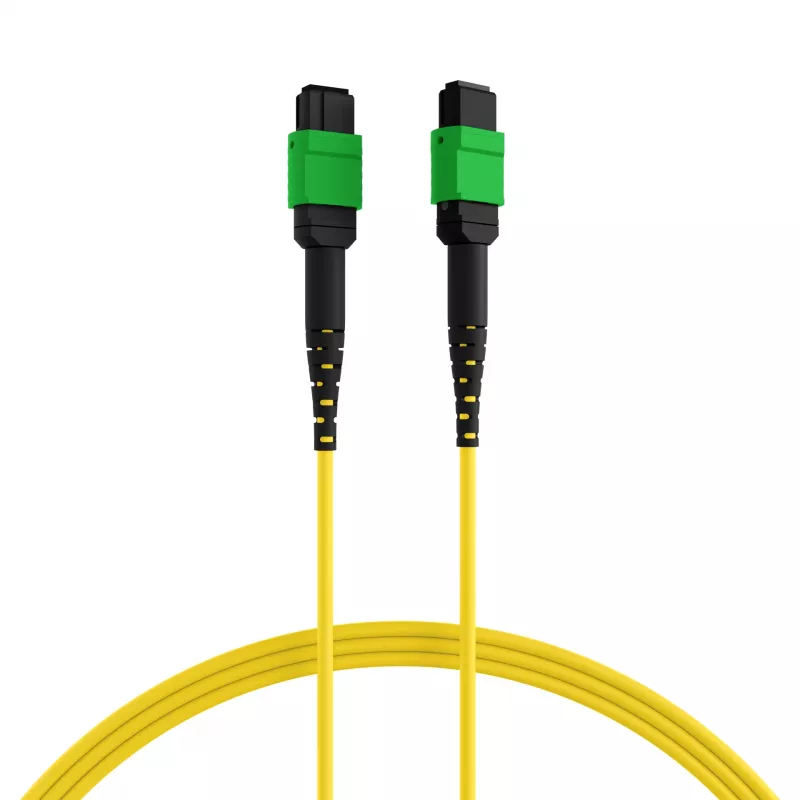

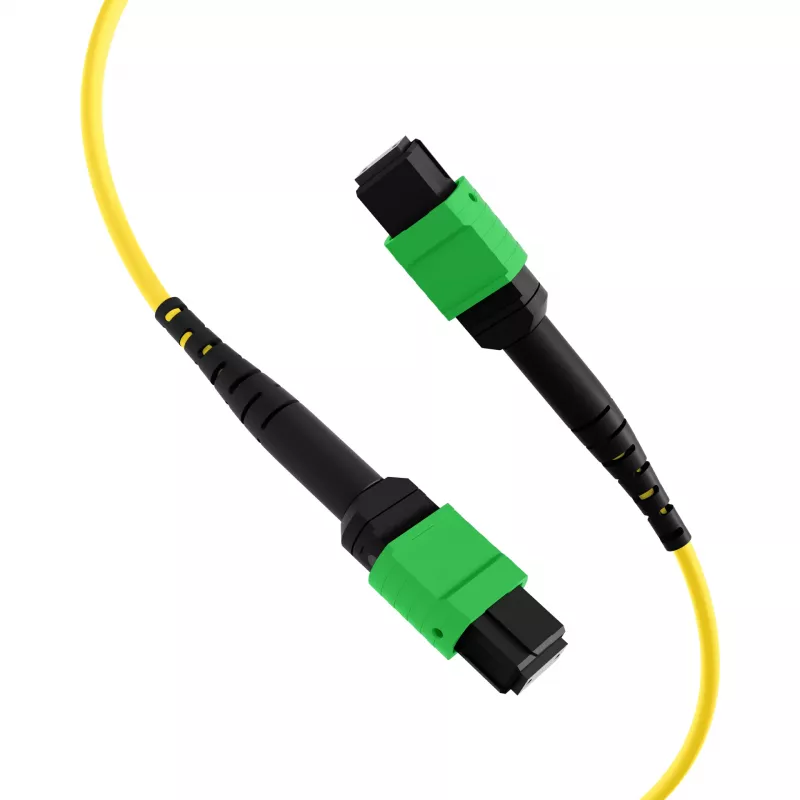

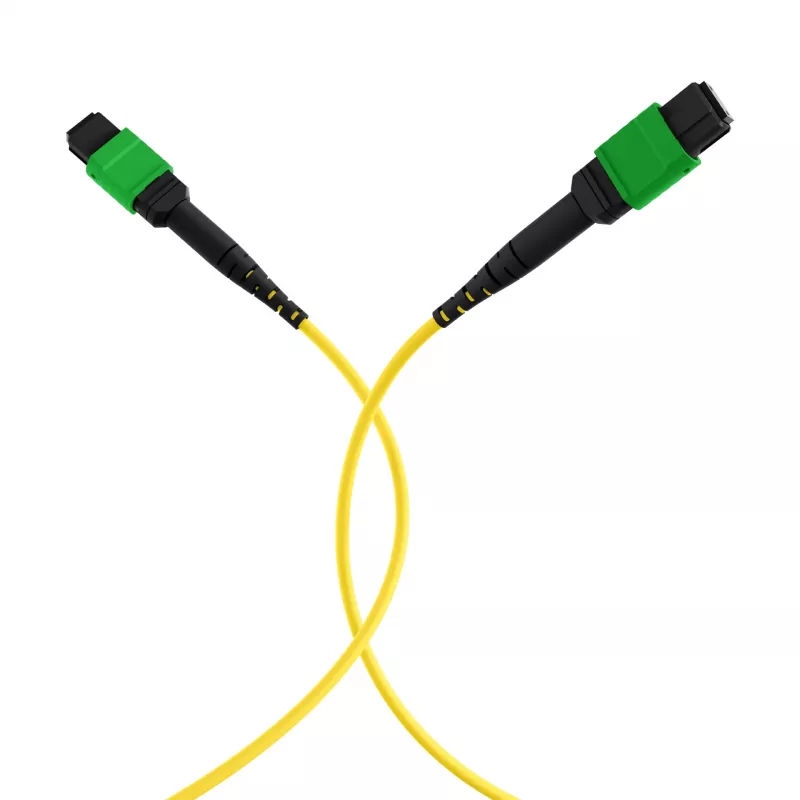

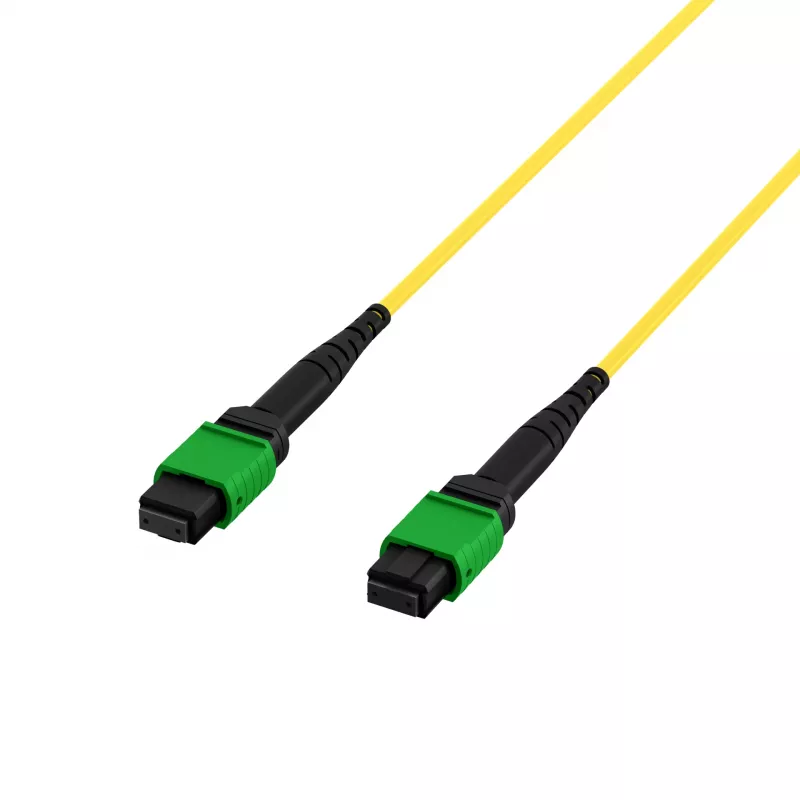

EFB Elektronik cable de conexión MPO-PLUS/APC(F)-MPO-PLUS/APC(F) OS2 8 fibras Type-B LSZH amarillo 2m MPOF8MPOFOS2-2

High-density fiber optic patching in data centers demands precise polarity and low-loss connections. The EFB Elektronik MPOF8MPOFOS2-2 patch cable solves this with MPO-PLUS/APC female connectors on both ends, 8 singlemode OS2 fibers, and Type B polarity for reliable link performance.

Who is it for

Network engineers and data center technicians who need a factory-terminated MPO trunk for 40G/100G parallel optics or high-fiber-count backbone links. It suits installations where LSZH jacket compliance and yellow singlemode identification are required.

Main features

• MPO-PLUS/APC female to MPO-PLUS/APC female connectors
• 8 singlemode OS2 fibers, Type B polarity
• 2 m length with LSZH yellow jacket
• Angled physical contact (APC) polish for low back reflection
• Supports 1310 nm and 1550 nm wavelengths

Tips

Verify polarity and gender before ordering; this cable has female connectors on both ends. Use with MPO-PLUS/APC adapters or cassettes for structured cabling.
