EFB ELEKTRONIK cable de distribución MPO-PLUS(M)-LC OM4 12 fibras tipo B LSZH violeta erika 0,4 m

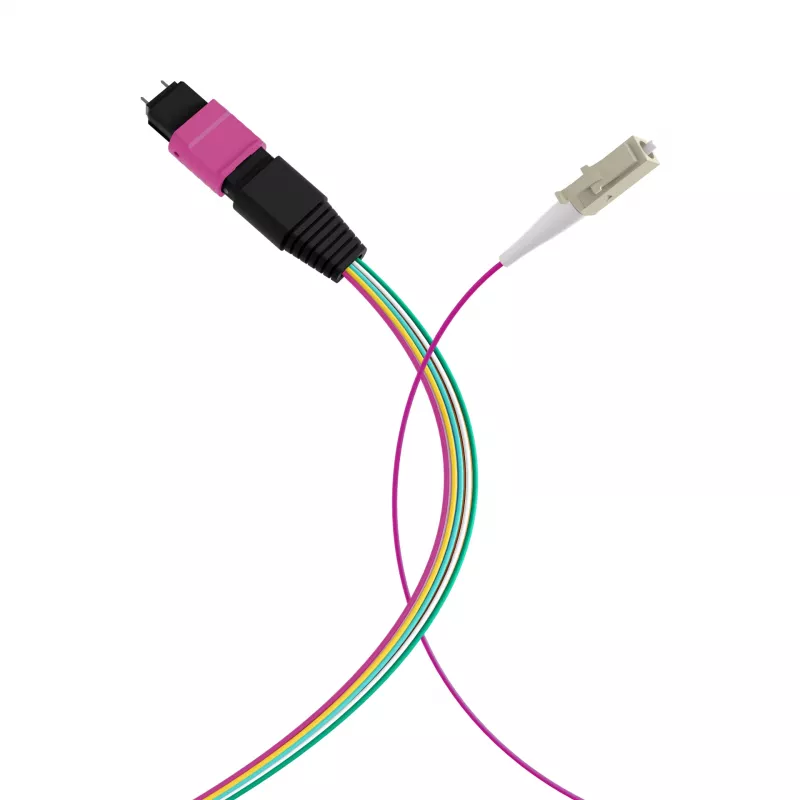

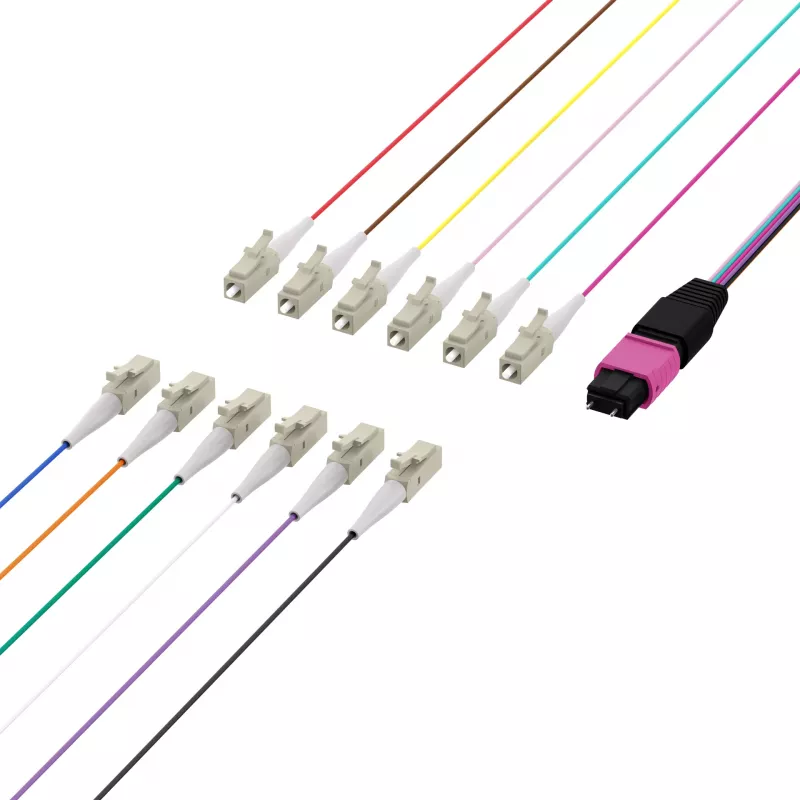

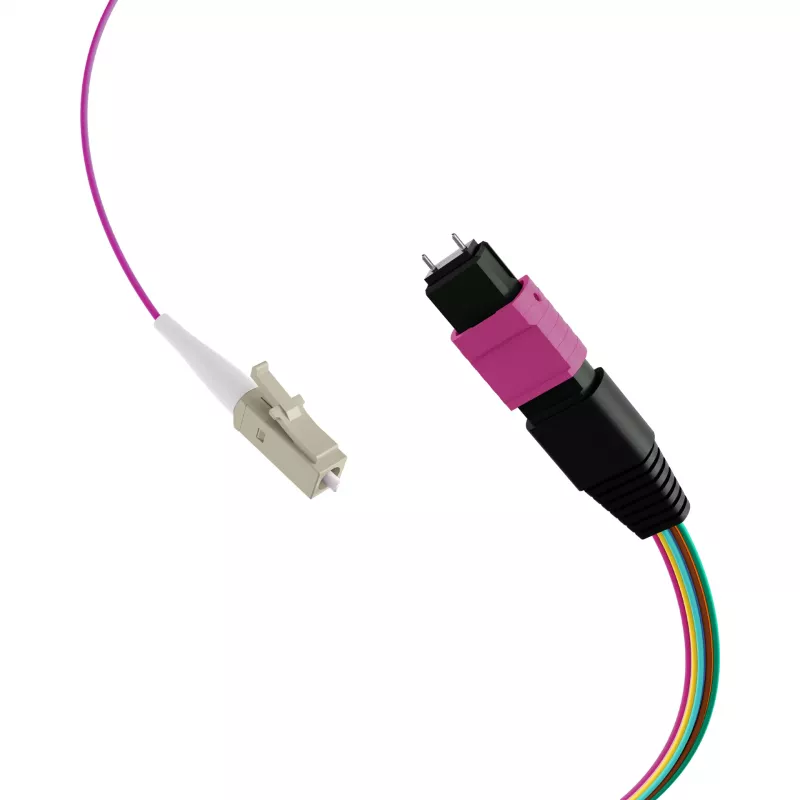

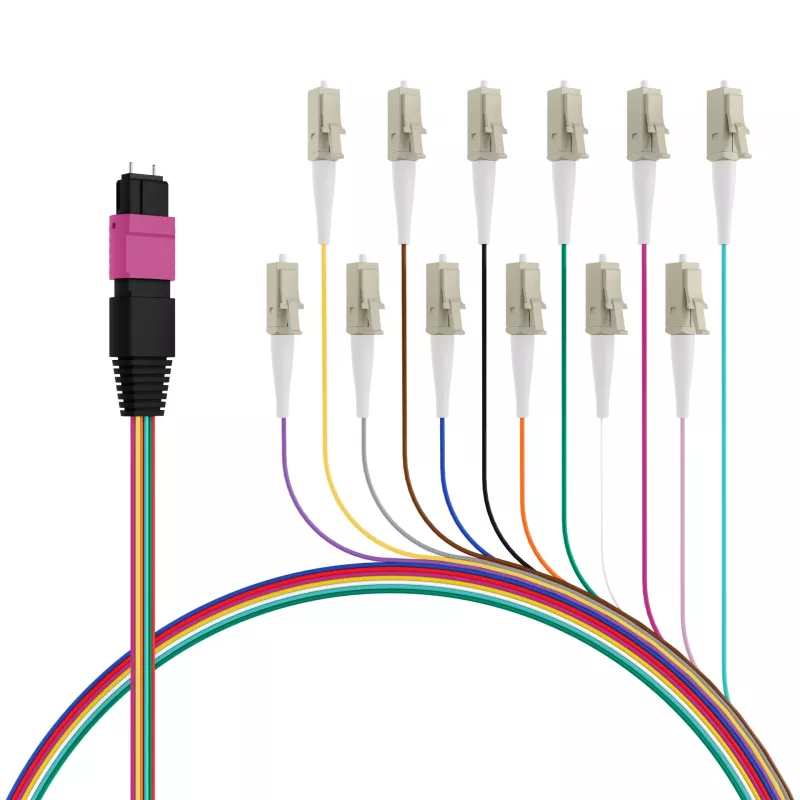

The EFB ELEKTRONIK MPO-PLUS(M)-LC Fanout Cable OM4 is a high-performance fiber optic breakout cable designed for demanding data center and enterprise network environments. It features a 12-fiber MPO-PLUS male connector on one end and six LC duplex connectors on the other, providing a reliable and efficient solution for high-speed data transmission. With OM4 multimode fiber, this cable supports 10GbE, 40GbE, and 100GbE applications, ensuring future-proof connectivity.

Advantages

This fanout cable offers exceptional performance with low insertion loss and high return loss, minimizing signal degradation and ensuring reliable data transfer. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic fumes in case of fire, making it ideal for use in confined spaces. The heather violet color provides easy identification and organization within cable management systems.

Suitable for

• Data centers requiring high-density fiber connectivity
• Storage Area Networks (SAN) and Local Area Networks (LAN)
• High-speed Ethernet applications: 10GbE, 40GbE, 100GbE
• Telecommunications and enterprise backbone cabling

Key specifications

• Cable Type: Fanout Fiber Optic Cable
• Fiber Mode: Multimode OM4
• Connector A: MPO-PLUS Male, 12-Fiber
• Connector B: 6x LC Duplex (12 Fibers)
• Polarity: Type B (Cross-over)
• Cable Length: 0.4 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Heather Violet (Erika-Violet)
• Fiber Core Diameter: 50 µm
• Fiber Cladding Diameter: 125 µm
• Insertion Loss (MPO): ≤ 0.35 dB
• Insertion Loss (LC): ≤ 0.25 dB
• Return Loss (MPO): ≥ 20 dB
• Return Loss (LC): ≥ 30 dB
• Operating Wavelengths: 850 nm, 1300 nm
• Standards Compliance: IEC 61754-7, TIA/EIA-604-5, RoHS
• Operating Temperature: -20°C to 70°C

Recommendations

For optimal performance, ensure that the MPO and LC connectors are properly cleaned before installation. This cable is compatible with standard MPO and LC interfaces. It is recommended to use with OM4-rated transceivers for maximum data rates.
