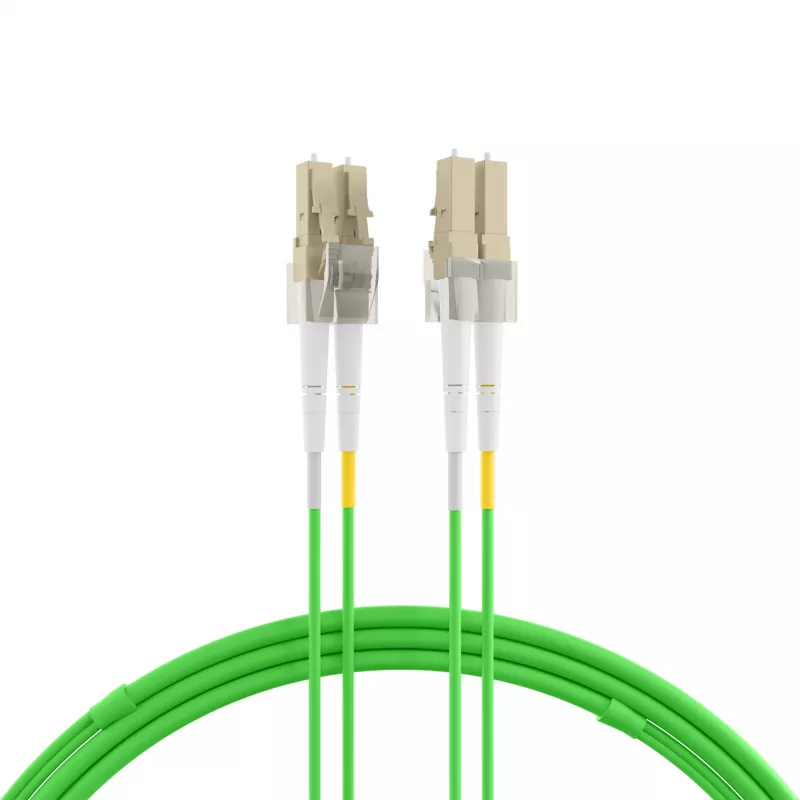

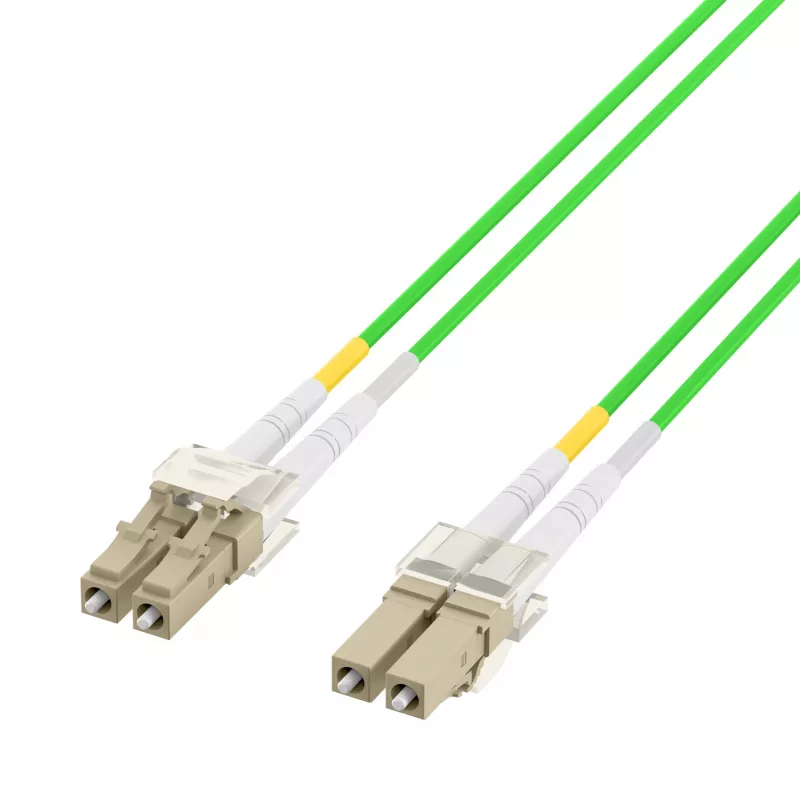

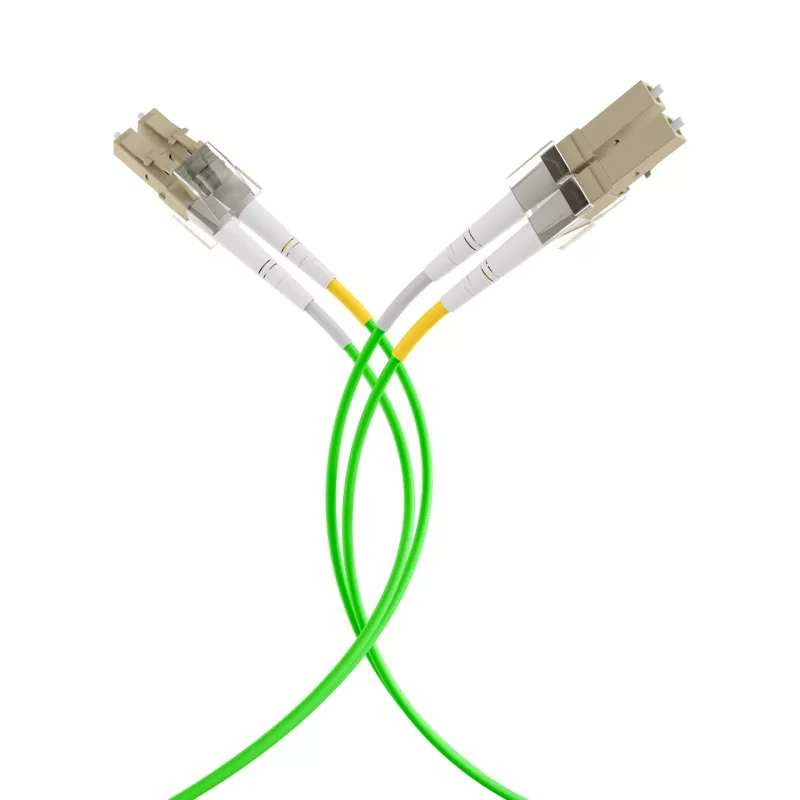

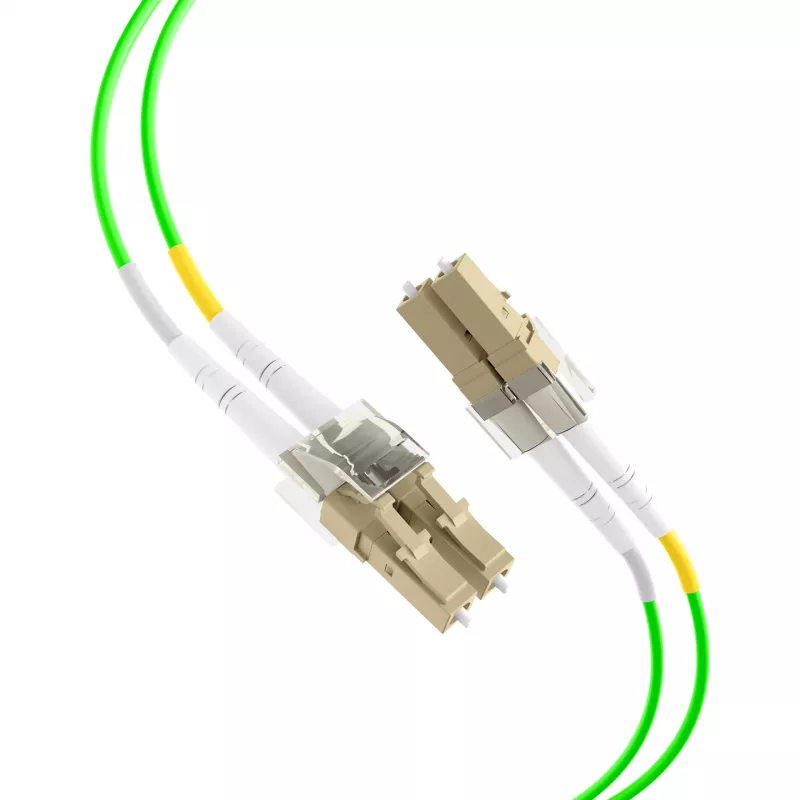

EFB Elektronik Cable de fibra óptica dúplex LC-LC 50/125µm OM5 LSZH Lime Green 2,0mm 7,5m

The EFB Elektronik Duplex Jumper LC-LC is a high-performance fiber optic patch cable designed for demanding network environments. With OM5 wideband multimode fiber, it supports high-speed data transmission up to 100G/400G Ethernet, making it ideal for data centers, SAN, and LAN applications. The cable features a lime green LSZH (Low Smoke Zero Halogen) jacket, ensuring safety in confined spaces.

Advantages

OM5 fiber provides superior bandwidth and supports multiple wavelengths for future-proof network upgrades. The LC duplex connectors ensure secure and reliable connections, while the 2.0mm cable diameter offers flexibility and ease of installation. LSZH jacket reduces toxic smoke and halogen emissions in case of fire.

Suitable for

• High-speed data networks (100G/400G Ethernet)
• Data centers and server rooms
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Video and analog signal transmission

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Connector Type: LC Duplex to LC Duplex
• Fiber Mode: Multimode (OM5)
• Core/Cladding: 50/125 µm
• Length: 7.5 m
• Jacket Material: LSZH
• Jacket Color: Lime Green
• Cable Outer Diameter: 2.0 mm
• Number of Fibers: 2 (Duplex)
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB
• Operating Temperature: -20°C to +70°C
• Standards: IEC 60793-2-10 Type A1a.4, TIA-492AAAE, ISO/IEC 11801
• Polarity: A-B (Crossed)
• Ferrule Material: Zirconia Ceramic

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC duplex interfaces. Suitable for use in structured cabling systems requiring high bandwidth and low latency.
