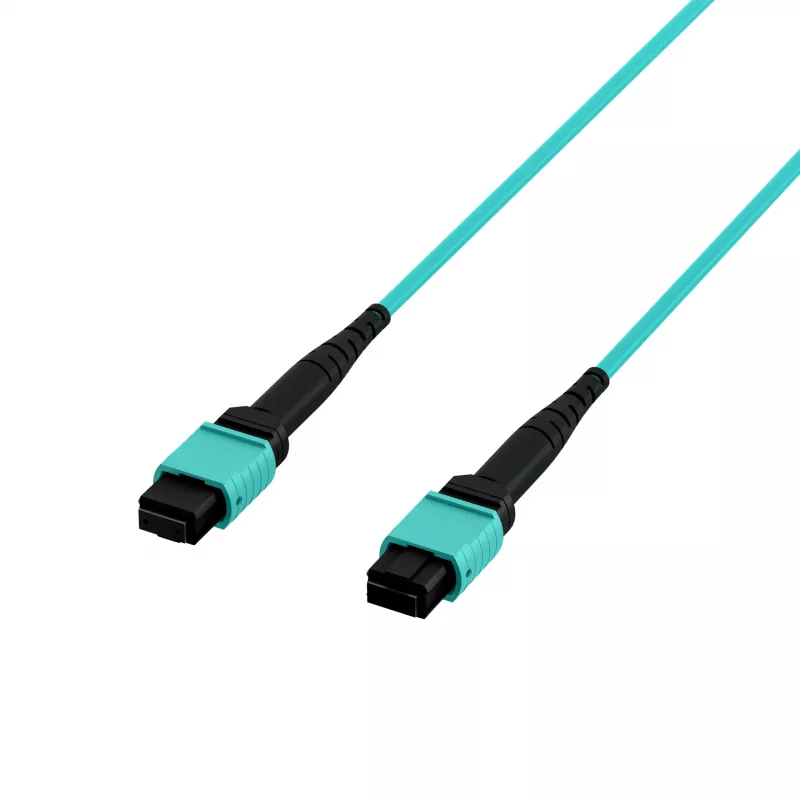

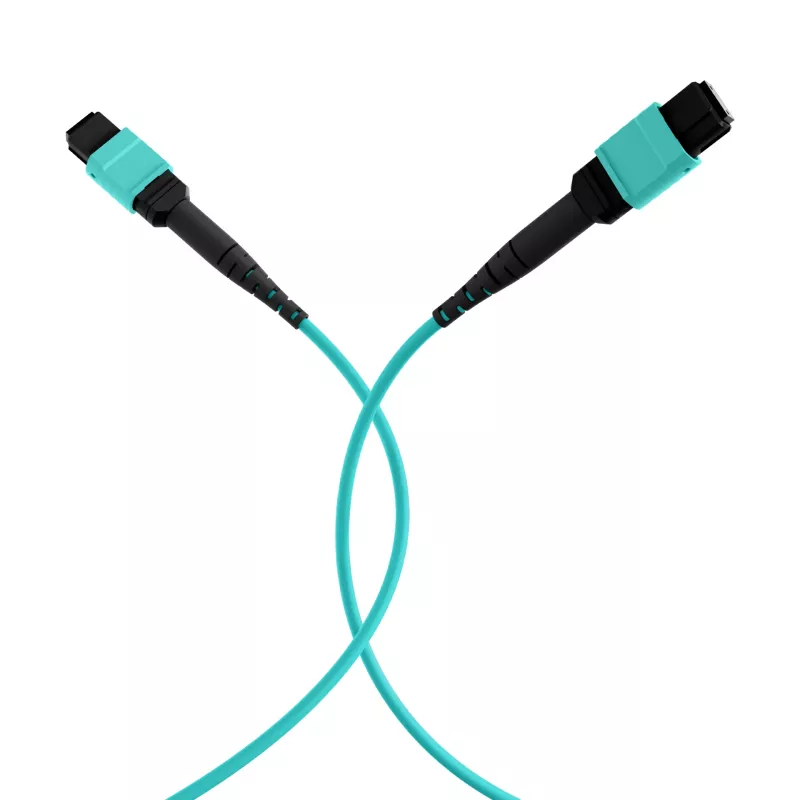

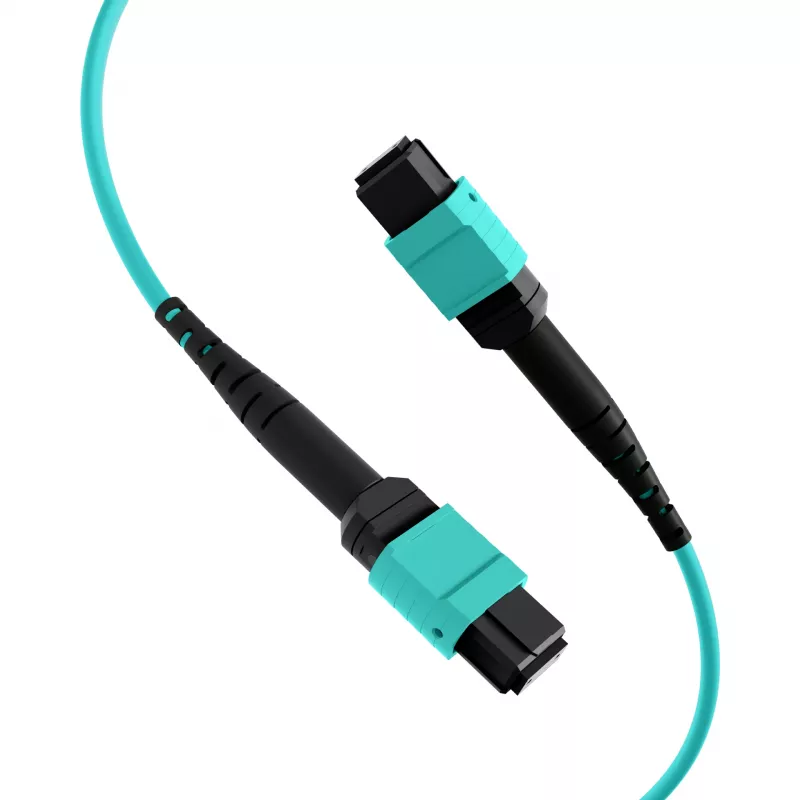

EFB Elektronik cable de fibra óptica MPO-PLUS hembra a MPO-PLUS hembra OM3 multimodo, 12 fibras, polaridad tipo B, LSZH funda aqua, 1 m MPOF12MPOFOM3-1

MPO fiber patch cable engineered for high-density 40G/100G Ethernet and data center interconnects. Pre-terminated with MPO-PLUS female connectors on both ends, this 12-fiber OM3 multimode assembly provides a reliable, low-loss link in a compact 3.0 mm LSZH aqua jacket.

Advantages

Type B polarity (key-up to key-down) ensures correct fiber mapping for parallel optics. Zirconia ceramic ferrules and precision alignment deliver insertion loss below 0.35 dB and return loss above 20 dB. The LSZH jacket reduces smoke and toxic emissions in the event of fire, making it suitable for enclosed spaces.

Suitable for

• 40G and 100G Ethernet links using MPO-based transceivers
• Data center spine-leaf and server-to-switch connections
• Storage area networks (SAN) and high-speed LAN backbones

Key specifications

• Connector type: MPO-PLUS female to MPO-PLUS female
• Fiber type: OM3 multimode, 12 fibers
• Cable length: 1 m
• Polarity: Type B (key-up to key-down)
• Jacket material: LSZH, aqua
• Cable diameter: 3.0 mm
• Insertion loss: < 0.35 dB
• Return loss: > 20 dB
• Operating temperature: -20°C to 70°C
• Minimum bend radius: 30 mm (installation), 10 mm (long term)

Recommendations

Verify polarity and fiber count against your transceiver requirements before installation. Use bend radius control to maintain signal integrity in high-density patching areas.
