EFB Elektronik Cable de parcheo dúplex LC-SC/APC 9/125µm OS2 LSZH amarillo 2.0mm 15m

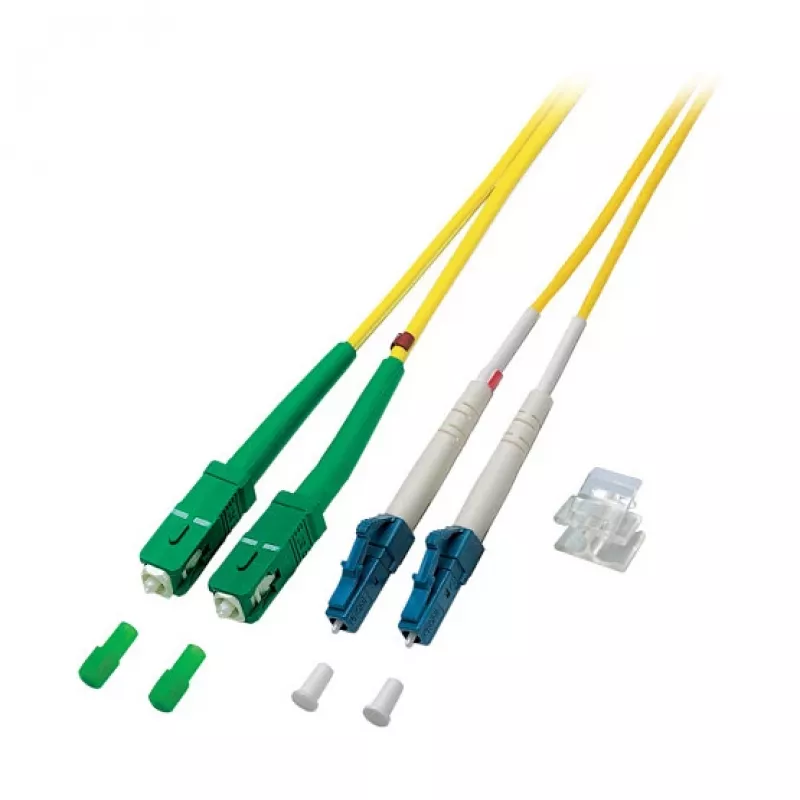

The EFB Elektronik Duplex Jumper LC-SC/APC is a high-quality fiber optic patch cable designed for single-mode applications. With a length of 15 meters and a duplex configuration, it provides reliable connectivity for network infrastructure. The cable features LC duplex connectors on one end and SC/APC duplex connectors on the other, ensuring low insertion loss and high return loss for optimal signal transmission.

Advantages

This jumper offers excellent performance with typical insertion loss ≤0.3 dB and return loss ≥60 dB (SC/APC) and ≥50 dB (LC/UPC). The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, while the yellow color aids in easy identification. The 2.0 mm cable diameter provides flexibility and durability.

Suitable for

• Fiber optic network installations requiring single-mode OS2 performance
• Data centers, telecom rooms, and enterprise networks
• Connecting devices with LC and SC/APC interfaces
• Applications where low smoke and halogen-free materials are required

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-Mode
• Fiber Class: OS2
• Core/Cladding Diameter: 9/125 µm
• Connector Type A: LC Duplex
• Connector Type B: SC/APC Duplex
• Cable Length: 15 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 2.0 mm
• Number of Fibers: 2 (Duplex)
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (SC/APC, Typical): ≥ 60 dB
• Return Loss (LC/UPC, Typical): ≥ 50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Ferrule Material: Zirconia Ceramic
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate cable management to avoid bending beyond the minimum bend radius. This jumper is ideal for high-speed data transmission in structured cabling systems.
