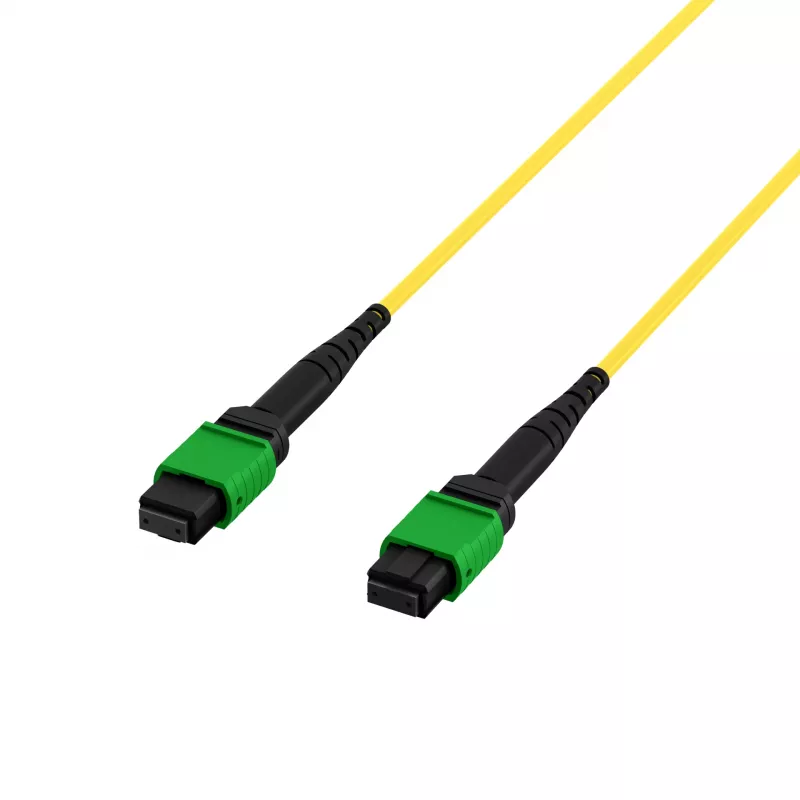

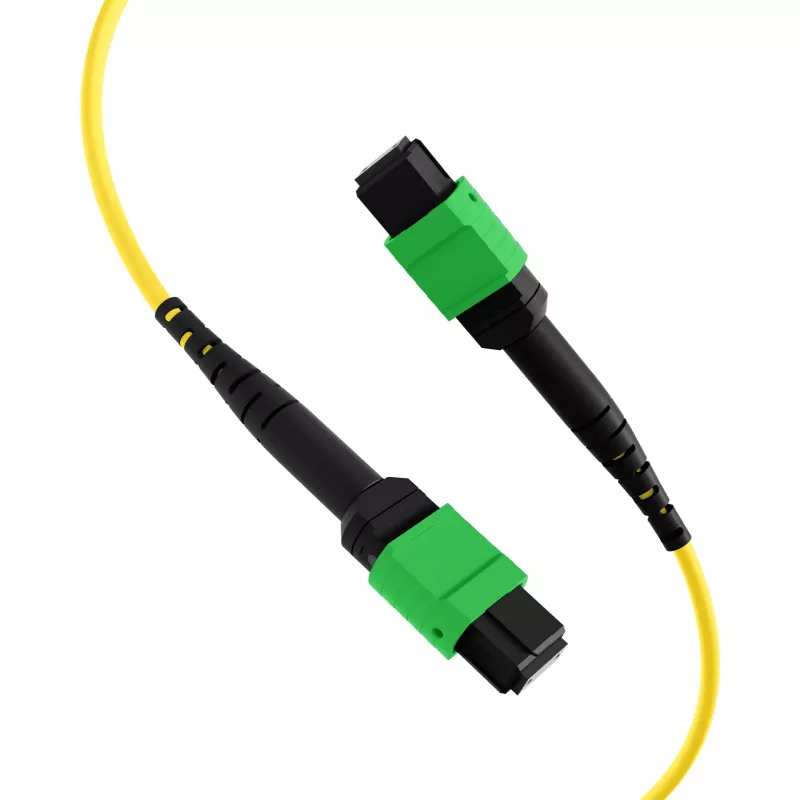

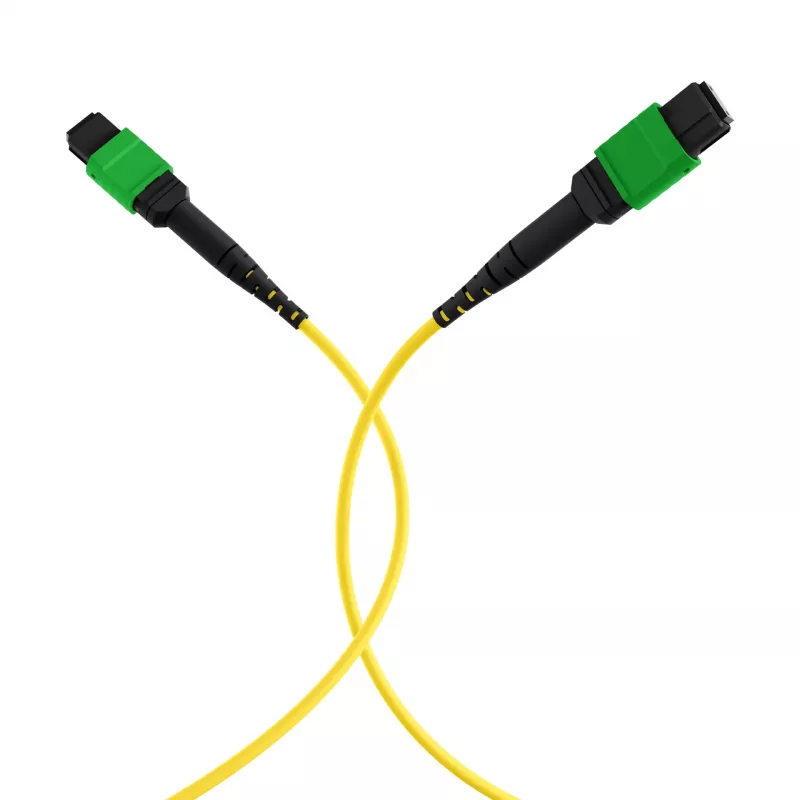

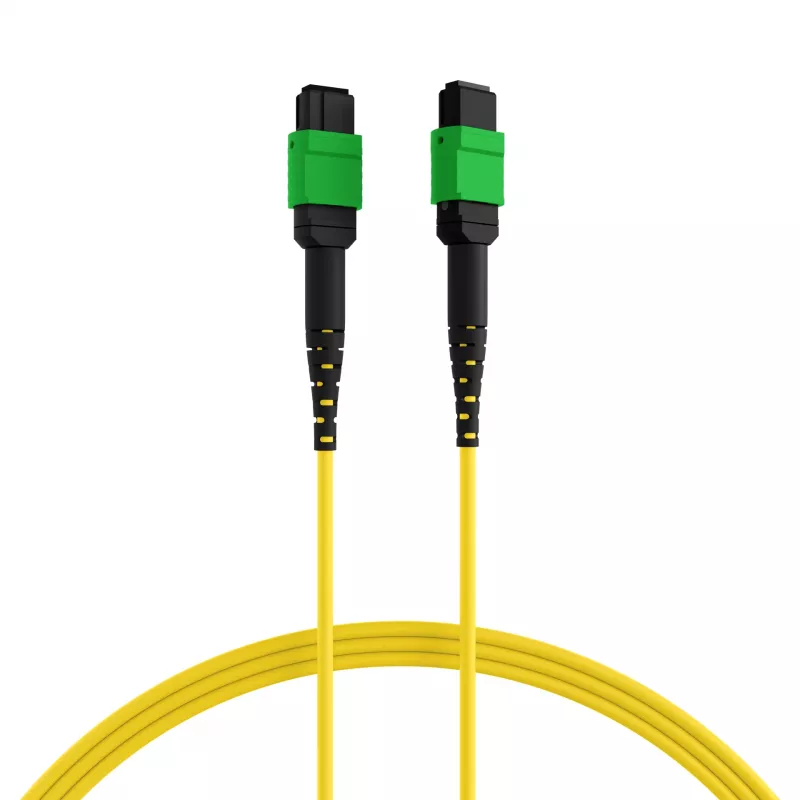

EFB ELEKTRONIK cable de parcheo MPO-PLUS/APC(F)-MPO-PLUS/APC(F) OS2 12 fibras tipo B LSZH amarillo 10m

The EFB ELEKTRONIK MPO-PLUS/APC(F)-MPO-PLUS/APC(F) Patch Cable is a high-performance fiber optic patch cable designed for demanding data center and telecommunications applications. With 12 single-mode fibers (OS2) and MPO-PLUS APC female connectors on both ends, this cable ensures low insertion loss and high return loss for reliable signal transmission. The Type B polarity (cross-over) configuration is ideal for parallel optics systems. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the yellow color ensures easy identification.

Advantages

This patch cable offers exceptional performance with typical insertion loss of less than 0.35 dB and return loss greater than 60 dB. The zirconia ceramic ferrule ensures durability and consistent optical performance over more than 500 matings. The LSZH jacket reduces toxic smoke and halogen emissions in case of fire, making it suitable for use in data centers, offices, and public buildings. The 3.0 mm cable diameter provides flexibility while maintaining robustness.

Suitable for

• Data center infrastructure
• Telecommunications networks
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• High-speed fiber optic connections

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Single-mode (OS2)
• Fiber Count: 12 Fibers
• Connector A: MPO-PLUS APC Female
• Connector B: MPO-PLUS APC Female
• Cable Length: 10 meters
• Polarity Type: Type B (Cross-over)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Fiber Core/Cladding Diameter: 9/125 µm
• Insertion Loss (Typical): < 0.35 dB
• Return Loss (Typical): > 60 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Cable Diameter: 3.0 mm
• Ferrule Material: Zirconia Ceramic
• Connector Durability: > 500 matings
• Flame Retardancy: IEC 60332-1
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure proper handling and storage within the specified temperature ranges. This cable is designed for indoor use and should not be exposed to moisture or extreme mechanical stress. Pair with compatible MPO-PLUS APC adapters and transceivers for best results.
