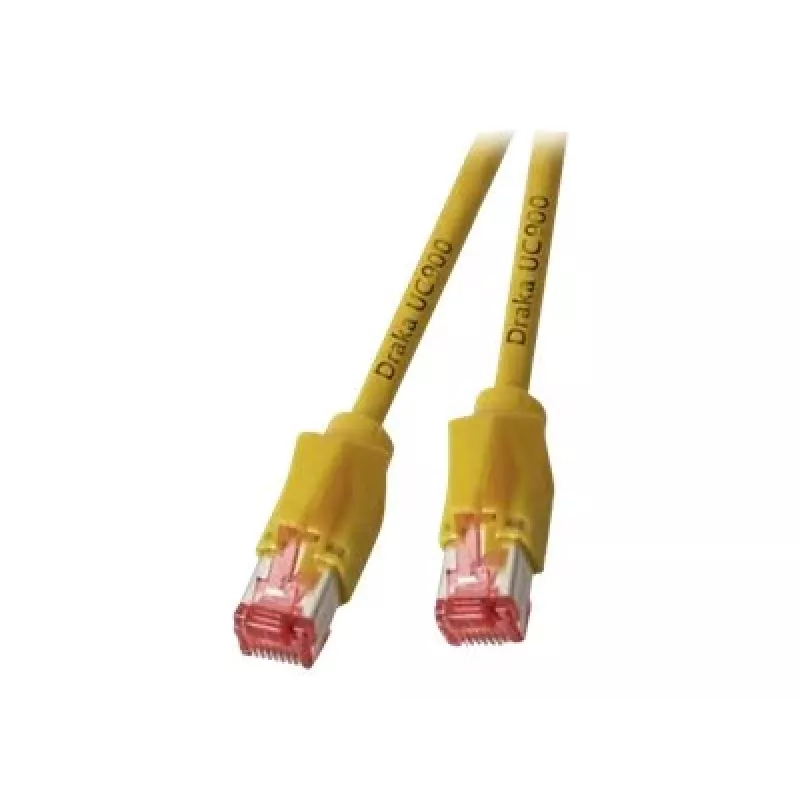

EFB Elektronik Cable de parcheo RJ45 Cat.6A S/FTP LSZH Draka UC900 TM21 amarillo 0,25m

The EFB Elektronik RJ45 Patch Cable Cat.6A S/FTP LSZH Draka UC900 TM21 is a high-performance network cable designed for demanding data center and enterprise LAN environments. With a length of 0.25 meters, it provides a reliable, high-speed connection for short-distance patching. The cable features S/FTP shielding (Screened/Foiled Twisted Pair) to minimize electromagnetic interference and crosstalk, ensuring stable 10 Gigabit Ethernet performance. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. Manufactured by Draka with the UC900 TM21 core cable, this patch cord meets the highest quality standards.

Advantages

This patch cable offers exceptional data transmission rates up to 10 Gbps with a bandwidth of 500 MHz, making it ideal for high-speed networks. The S/FTP shielding provides excellent protection against external interference, while the LSZH jacket ensures compliance with strict fire safety regulations. The molded snagless boot protects the RJ45 connectors from damage during installation and removal. Gold-plated contacts guarantee reliable connectivity and corrosion resistance.

Suitable for

• Data centers requiring high-density patching
• Enterprise local area networks (LAN)
• 10GBASE-T Ethernet applications
• Environments where low smoke and halogen-free materials are mandatory

Key specifications

• Cable Type: RJ45 Patch Cable
• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.25 m
• Colour: Yellow
• Connectors: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 500 MHz
• Conductor: AWG 27/7 stranded copper
• Wiring Standard: TIA/EIA-568B
• Flammability Rating: IEC 60332-1
• Compliance: RoHS, REACH

Recommendations

For optimal performance in high-speed networks, use this cable with Cat.6A compatible switches and network cards. Ensure proper cable management to maintain signal integrity.
