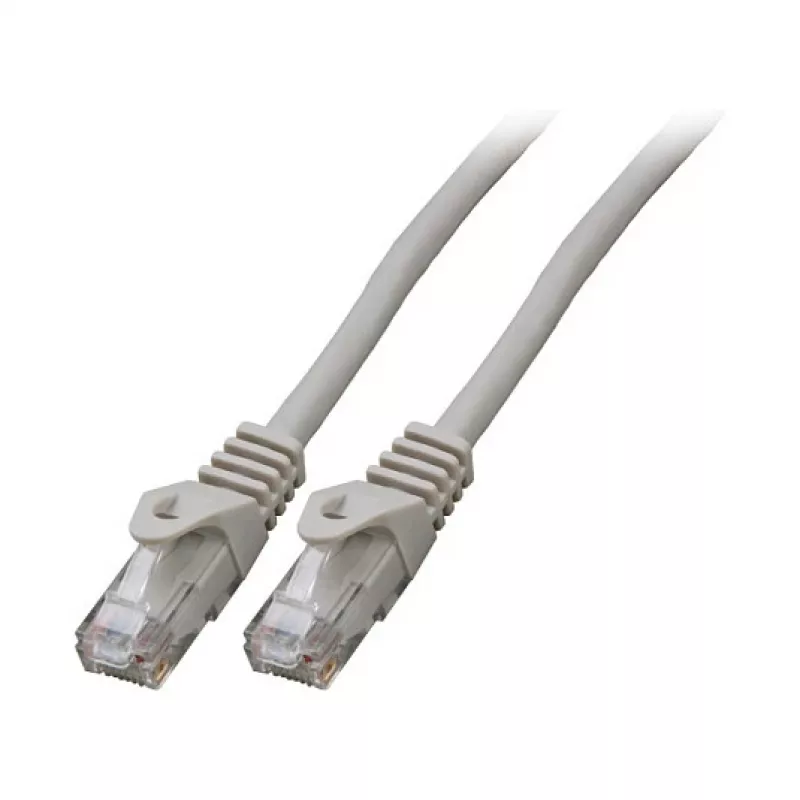

EFB Elektronik cable patch RJ45 Cat.5e U/UTP LSZH CCA AWG24/7 gris 1m

Experience Gigabit Ethernet speeds with this 1-meter Cat.5e patch cable, engineered with stranded CCA conductors for reliable, high-performance connectivity. Its LSZH jacket ensures safety in enclosed spaces by emitting low smoke and zero halogens, while the snagless molded boot protects the locking tab during installation.

Overview

The EFB Elektronik K8110GR.1 is a high-quality Ethernet patch cable designed for demanding network environments. It features four unshielded twisted pairs (U/UTP) of 24 AWG stranded copper-clad aluminum wire, supporting data rates up to 1 Gbps and a bandwidth of 100 MHz. The cable is terminated with RJ45 male connectors on both ends, wired to the TIA/EIA-568B standard for consistent performance. The grey LSZH jacket not only meets stringent fire safety regulations but also offers flexibility and durability for everyday use. With a length of 1 meter, it is ideal for connecting devices in close proximity, such as computers to wall outlets, switches to patch panels, or routers to modems.

What stands out

• Gigabit Ethernet ready: Supports up to 1 Gbps data transfer rate for fast network connections.
• LSZH jacket: Low Smoke Zero Halogen material reduces toxic emissions and smoke in case of fire, making it suitable for use in public buildings and confined spaces.
• Snagless molded boot: Protects the connector's locking tab from damage during installation and removal, ensuring a secure connection.
• Stranded conductors: 7-strand CCA wire provides flexibility and resistance to breakage, ideal for frequent bending and movement.
• Standard compliance: Meets Cat.5e specifications and is RoHS and CE compliant, guaranteeing quality and environmental safety.

Technical details

• Cable type: Ethernet Patch Cable
• Category: Cat.5e (Class D)
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor material: Copper Clad Aluminum (CCA)
• AWG: 24 (stranded, 7-strand)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Length: 1 meter
• Colour: Grey
• Connectors: RJ45 male to RJ45 male
• Data transfer rate: Up to 1 Gbps
• Bandwidth: Up to 100 MHz
• Wiring standard: TIA/EIA-568B
• Number of pairs: 4
• Outer diameter: Approx. 5.5 mm
• Boot type: Molded, snagless
• Operating temperature: -20°C to 60°C
• Compliance: RoHS, CE

Our verdict

The EFB Elektronik K8110GR.1 is a reliable and safe choice for your networking needs. Its combination of Gigabit performance, LSZH safety, and durable construction makes it an excellent value for both home and office environments. Whether you're setting up a new network or replacing an old cable, this patch cable delivers consistent, high-speed connectivity.
