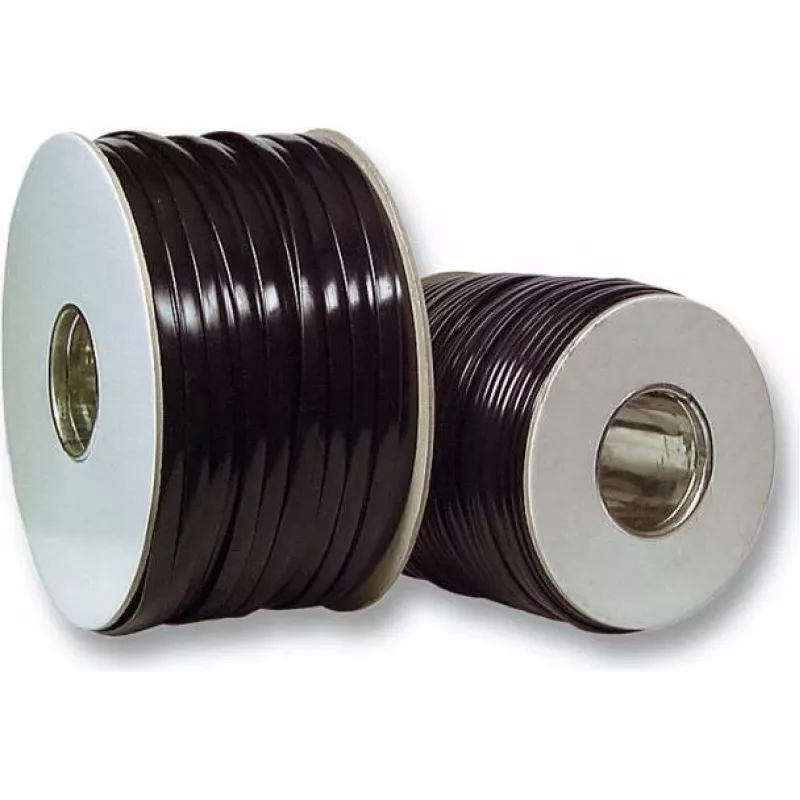

EFB Elektronik Cable plano modular de 4 hilos Negro, rollo de 500 m 91104.500

Internal wiring and low-speed data transmission demand a cable that stays flat, flexible, and reliable over long runs. This modular flat cable from EFB Elektronik delivers exactly that: a 4-conductor design on a 500-meter reel, ready for structured cabling in control cabinets, office furniture, and industrial equipment.

Who is it for

System integrators, panel builders, and maintenance teams who need a dependable flat cable for internal connections, signal wiring, and modular installations. It suits projects where space is tight and a low-profile cable is essential.

Main features

• Flat 4-conductor construction with 1.27 mm pitch for easy mass termination
• Tinned copper conductors (28 AWG, 7x0.12 mm) for corrosion resistance and solderability
• PVC insulation and jacket for flexibility and durability
• Continuous 500 m ring packaging to minimize waste and simplify handling
• Rated for 300 V and temperatures from -20°C to +80°C
• Flame retardant according to IEC 60332-1-2 and RoHS compliant

Specifications

• Brand: EFB Elektronik
• Model: 91104.500
• MPN: 91104.500
• EAN: 4049759054847
• Cable type: Modular flat cable
• Number of conductors: 4
• Conductor material: Tinned copper
• Conductor gauge: 28 AWG (7x0.12 mm)
• Insulation material: PVC
• Jacket material: PVC
• Colour: Black
• Length: 500 m
• Packaging: Ring / Reel
• Rated voltage: 300 V
• Temperature range: -20°C to +80°C
• Outer dimensions: approx. 6.0 mm (W) x 1.2 mm (H)
• Conductor pitch: 1.27 mm
• Shielding: Unshielded
• Flame retardancy: IEC 60332-1-2
• RoHS compliant: Yes

Tips

For clean installations, use insulation displacement connectors (IDC) designed for 1.27 mm pitch flat cable. Store the ring in a dry, cool place to maintain PVC flexibility. When routing, allow a slight bend radius to avoid stress on conductors.
