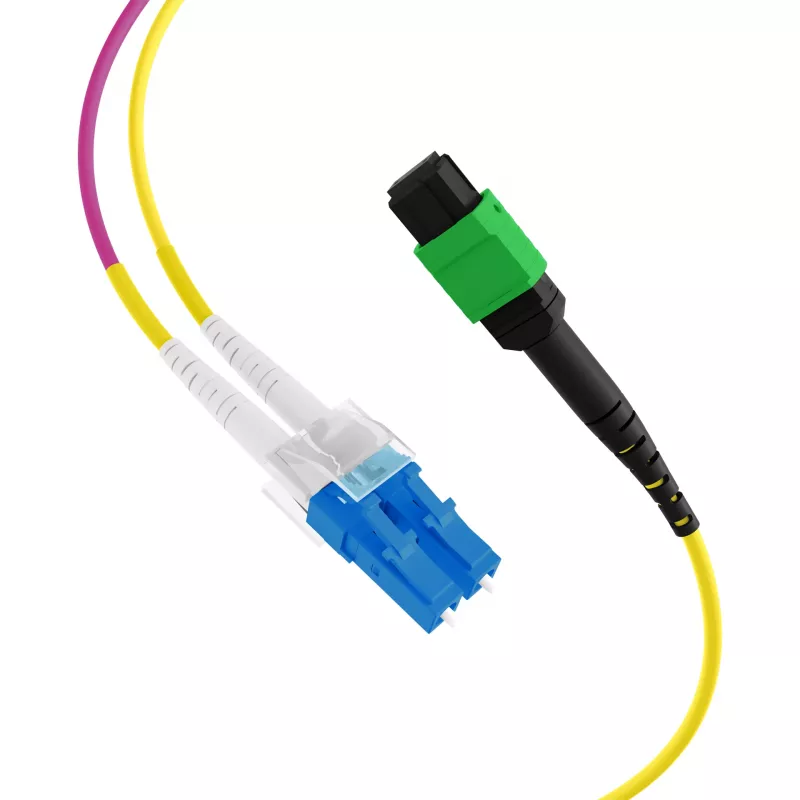

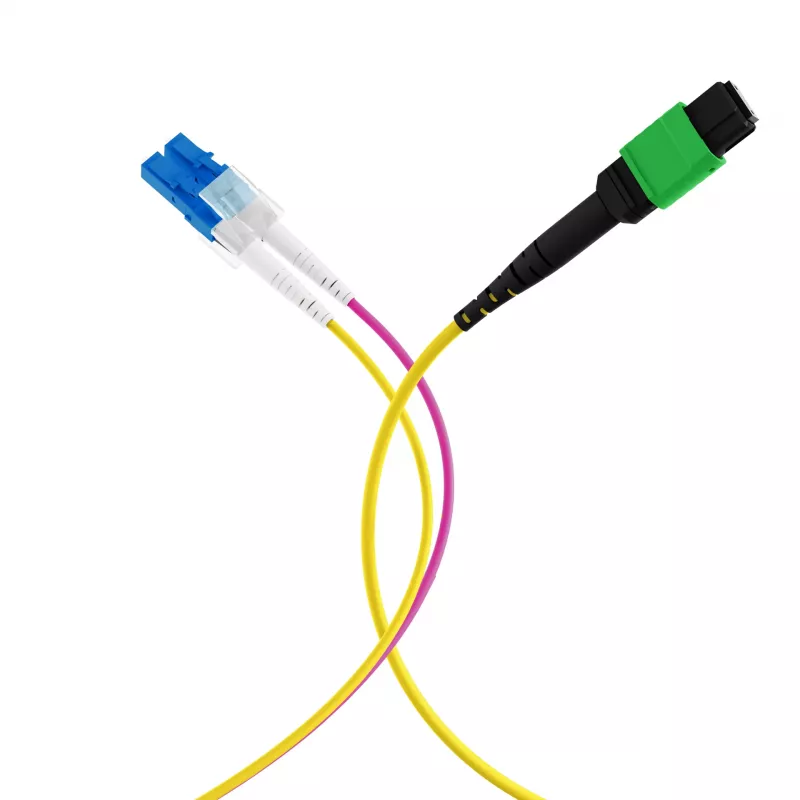

EFB Elektronik cable troncal MPO-PLUS/APC(F) a LC, OS2 monomodo, 12 fibras, polaridad tipo B, LSZH amarillo, 1 m MPOF12LCOS2-1

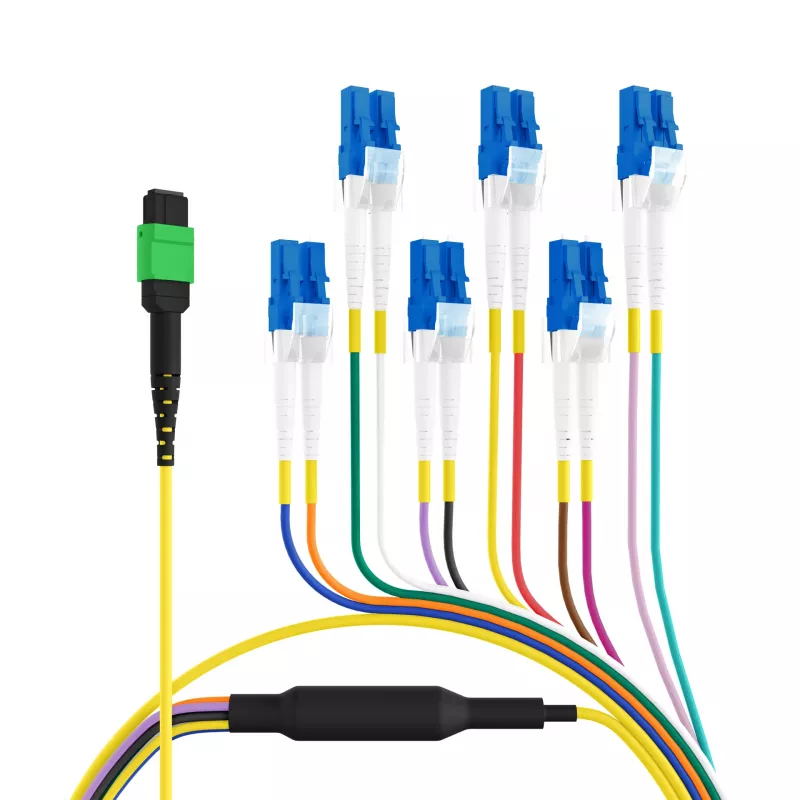

Data center technicians and enterprise network engineers use this MPO to LC trunk cable to connect high-density fiber optic equipment in structured cabling systems. The MPO-PLUS connector with APC polish on one end breaks out to 12 individual LC/APC connectors, enabling efficient patching in 40G/100G parallel optic links.

Key specifications

• Fiber type: OS2 single-mode (9/125 µm)
• Connector A: MPO-PLUS, APC polish, female (ferrule)

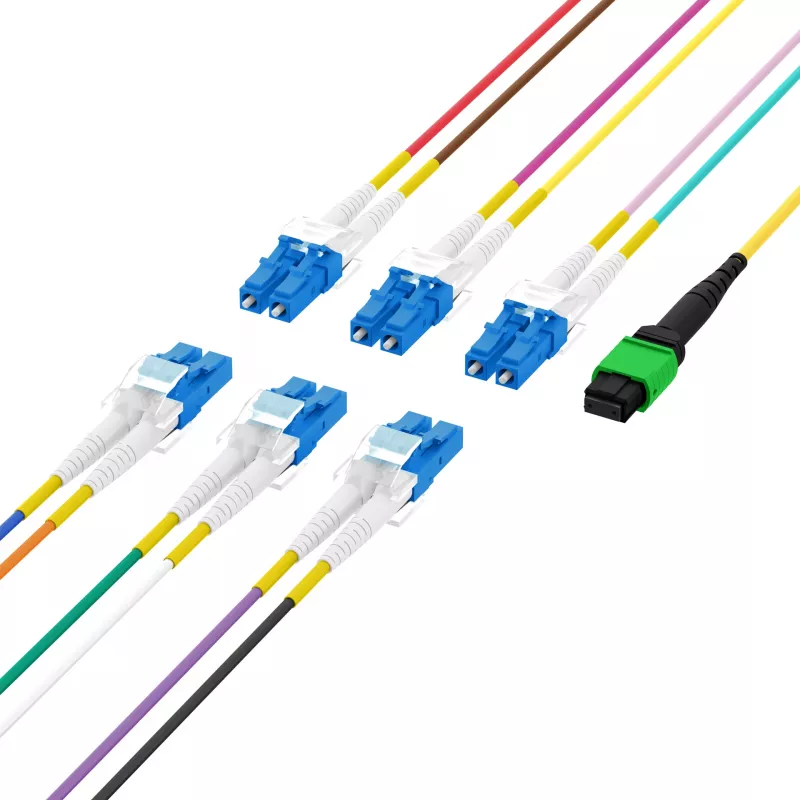

• Connector B: 6x duplex LC, APC polish
• Polarity: Type B
• Length: 1 meter
• Jacket: LSZH, yellow
• Insertion loss: MPO ≤ 0.35 dB, LC ≤ 0.25 dB
• Return loss: ≥ 60 dB (APC connectors)
• Operating temperature: -20°C to +70°C

Why choose it

MPO-PLUS connectors offer improved performance and reliability compared to standard MPO, with low insertion loss and high return loss for stable signal integrity. The 12-fiber design supports high-density applications, and the LSZH jacket ensures safety in enclosed spaces.

Ideal use cases

• Data center backbone cabling
• 40G/100G parallel optic links
• High-density fiber patching

Good to know

Type B polarity ensures correct fiber mapping for duplex signals in MPO-based systems. The yellow jacket identifies single-mode fiber per industry standards.
