EFB Elektronik Cable troncal MPO-PLUS/APC(F)-LC OS2 8 fibras Tipo B, LSZH, amarillo, 1m MPOF08LCOS2-1

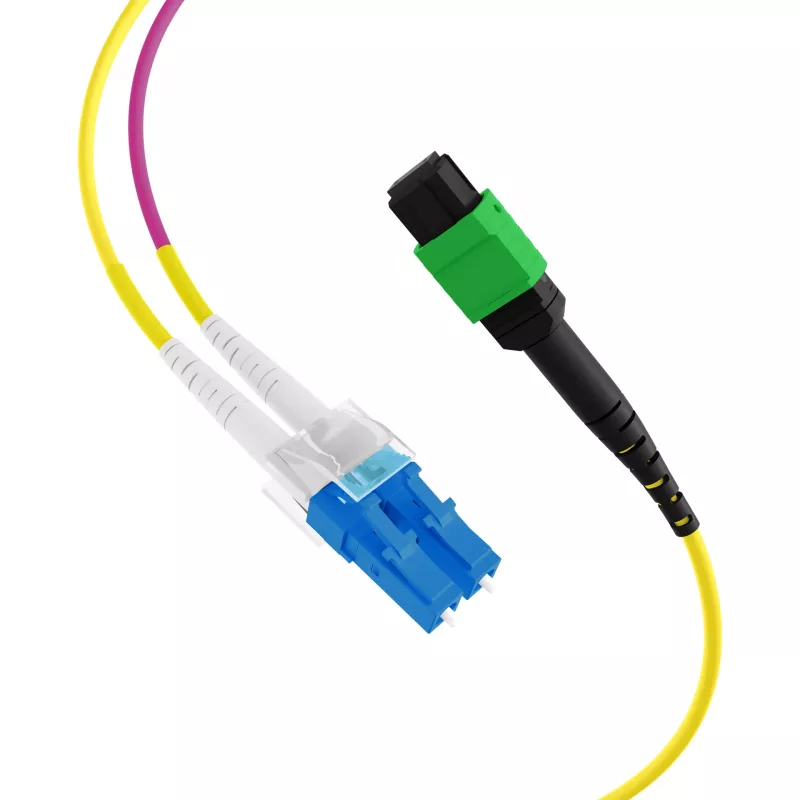

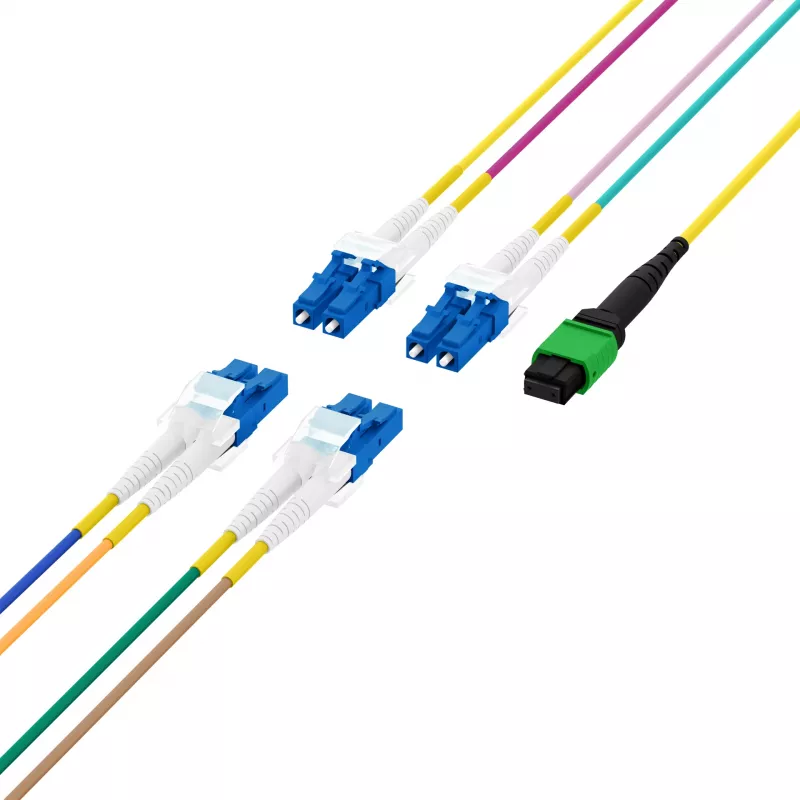

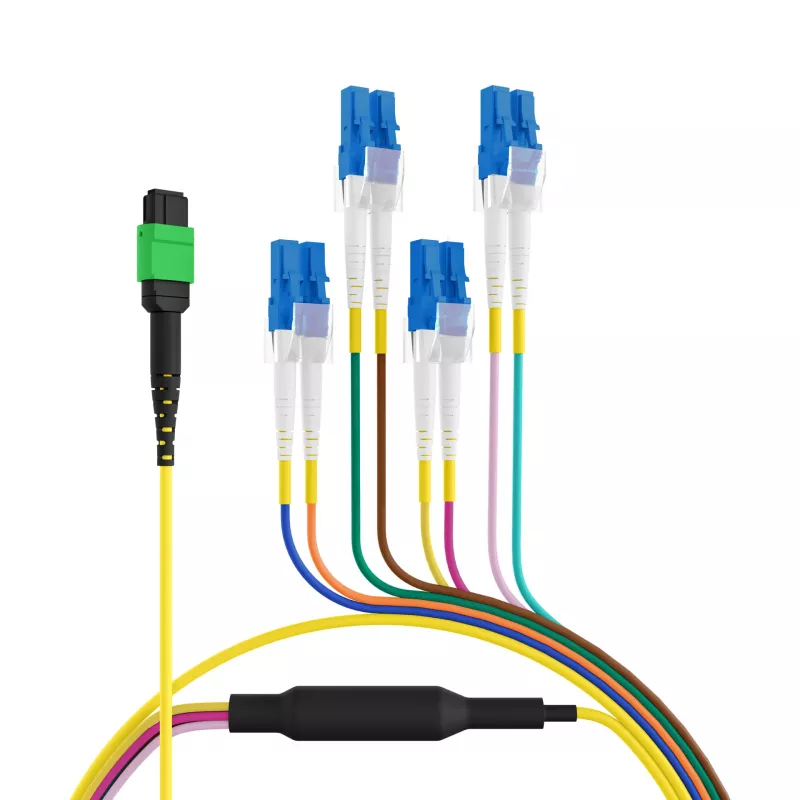

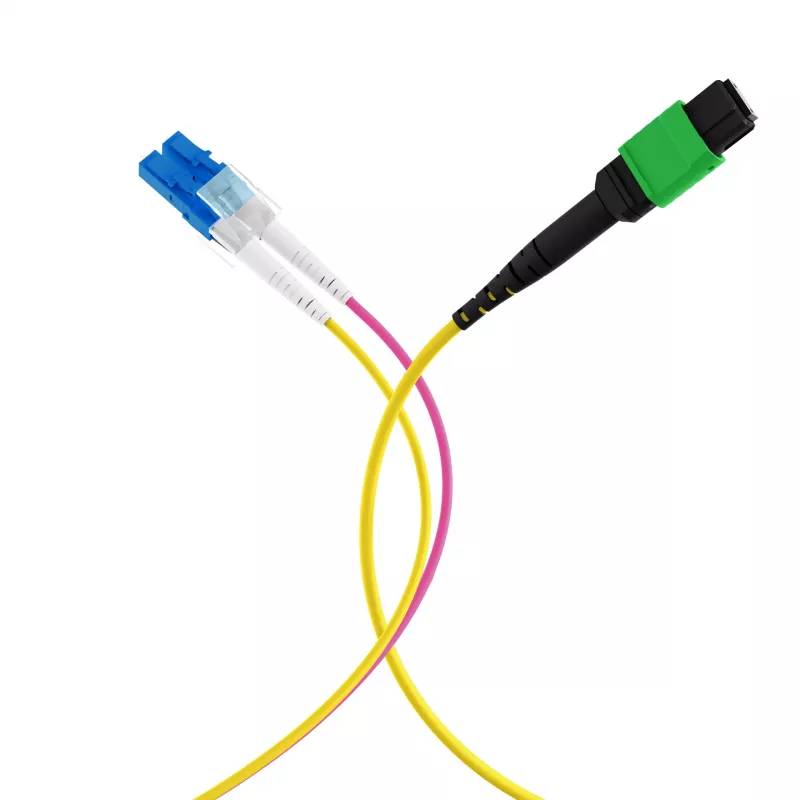

The EFB Elektronik MPOF08LCOS2-1 is an 8-fiber single-mode OS2 trunk cable with an MPO-PLUS/APC female connector on one end and eight LC/APC connectors on the other, wired in Type B polarity. Its yellow LSZH jacket meets low-smoke zero-halogen requirements, making it suitable for high-density data center and telecommunications environments.

Highlights

• 8 fibers, OS2 single-mode (ITU-T G.652.D)
• MPO-PLUS/APC female to LC/APC, Type B polarity
• LSZH yellow jacket, 1 m length
• Insertion loss: ≤0.35 dB (MPO), ≤0.25 dB (LC)
• Return loss: ≥60 dB

Full specifications

• Connector A: MPO-PLUS, APC, female
• Connector B: LC, APC
• Fiber type: OS2 single-mode, 9/125 µm
• Polarity: Type B
• Jacket: LSZH, yellow
• Length: 1 m
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C

Final note

Designed for high-density fiber patching where reliable MPO-to-LC breakout is required.
