EFB ELEKTRONIK cable troncal MPO-PLUS(F)-LC OM4 8 fibras tipo B LSZH violeta erika 3m

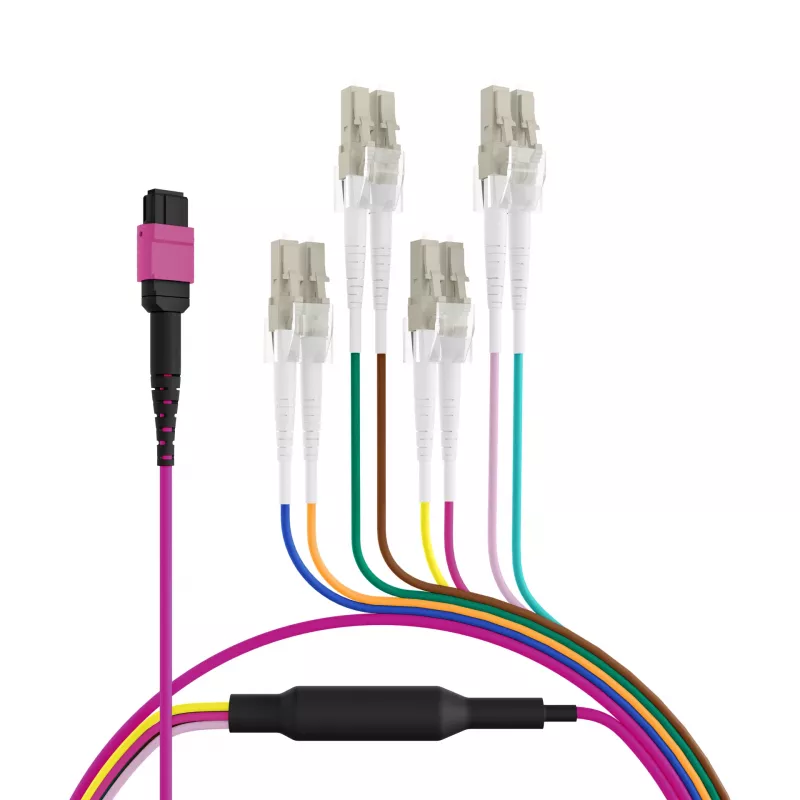

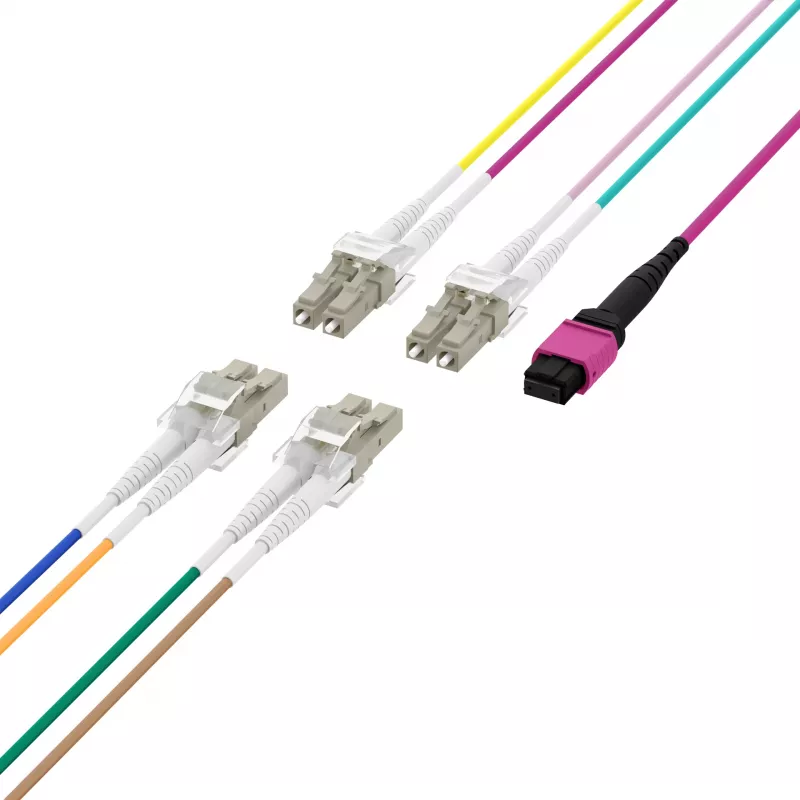

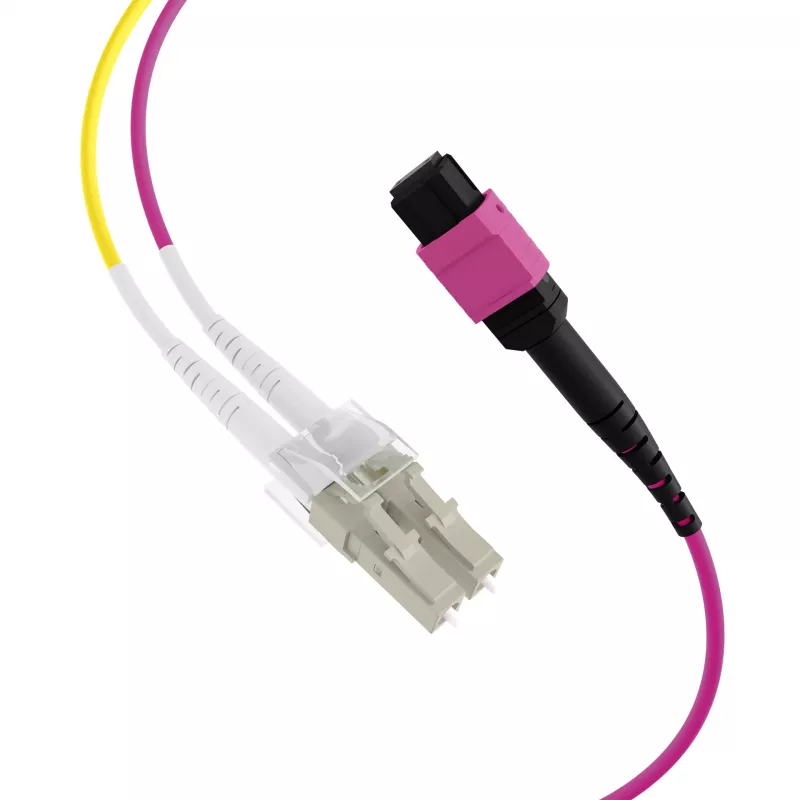

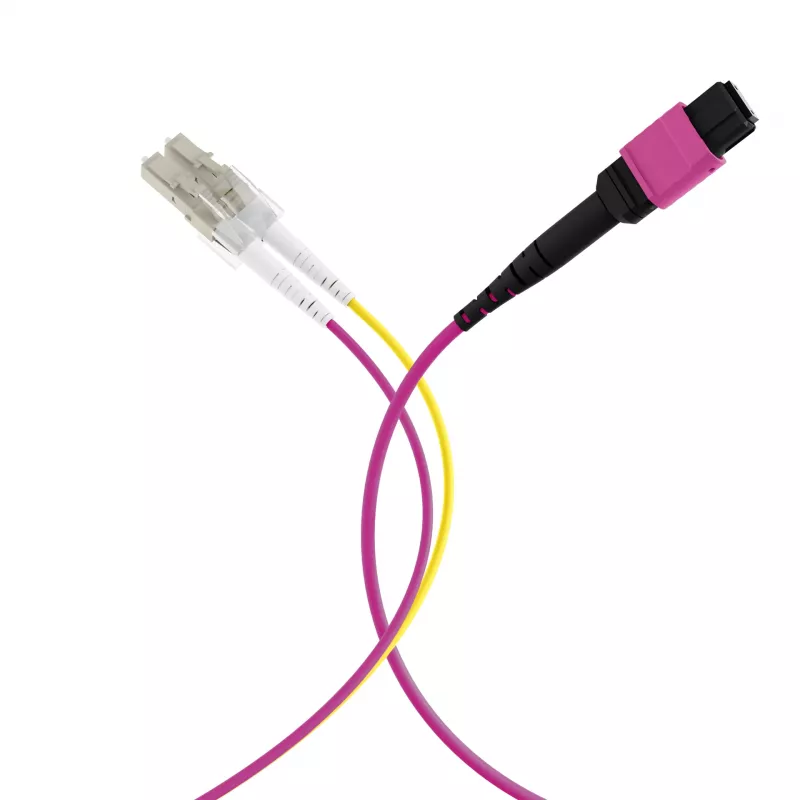

The EFB ELEKTRONIK MPO-PLUS(F)-LC Trunk Cable OM4 8 Fibers Type B LSZH Erika Violet 3m is a high-performance fiber optic trunk cable designed for reliable data transmission in structured cabling environments. It features an MPO-PLUS female connector on one end and LC duplex connectors on the other, with 8 multimode OM4 fibers. The cable is polarity Type B (cross-over) and jacketed with LSZH material in erika violet, ensuring safety and easy identification.

Advantages

This trunk cable offers high bandwidth and low insertion loss, making it ideal for high-speed networks. The LSZH jacket reduces toxic smoke in case of fire, enhancing safety. The erika violet color aids in cable management and identification.

Suitable for

• Data center backbone cabling
• High-speed local area networks (LANs)
• Telecommunications infrastructure
• Fiber-to-the-desk (FTTD) applications

Key specifications

• Cable Type: Fiber Optic Trunk Cable
• Fiber Type: Multimode OM4
• Fiber Count: 8 Fibers
• Connector A: MPO-PLUS Female (MTP/MPO Compatible)
• Connector B: LC Duplex
• Polarity Type: Type B (Cross-over)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Erika Violet
• Cable Length: 3 meters
• Core/Cladding Diameter: 50/125 µm
• Maximum Bandwidth (850nm): 4700 MHz*km
• Maximum Bandwidth (1300nm): 500 MHz*km
• Supported Wavelengths: 850nm, 1300nm
• Typical Insertion Loss (MPO): < 0.35 dB
• Typical Insertion Loss (LC): < 0.25 dB
• Typical Return Loss (MPO): > 20 dB
• Typical Return Loss (LC): > 30 dB
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, TIA/EIA-568-C.3, IEC 61754-7, IEC 61754-20

Recommendations

For optimal performance, ensure proper handling and installation of MPO connectors. Use with compatible OM4 transceivers and patch panels.
