EFB ELEKTRONIK cable troncal MPO-PLUS(F)-LC OM4 8 fibras tipo B LSZH violeta erika 5m

The EFB ELEKTRONIK MPO-PLUS(F)-LC Trunk Cable OM4 is a high-performance fiber optic trunk cable designed for high-speed data center and enterprise network applications. With 8 fibers, OM4 multimode performance, and a Type B polarity, this cable ensures reliable connectivity for 10GbE, 40GbE, and 100GbE networks. The LSZH jacket provides safety in plenum spaces, while the heather violet color aids in easy identification.

Advantages

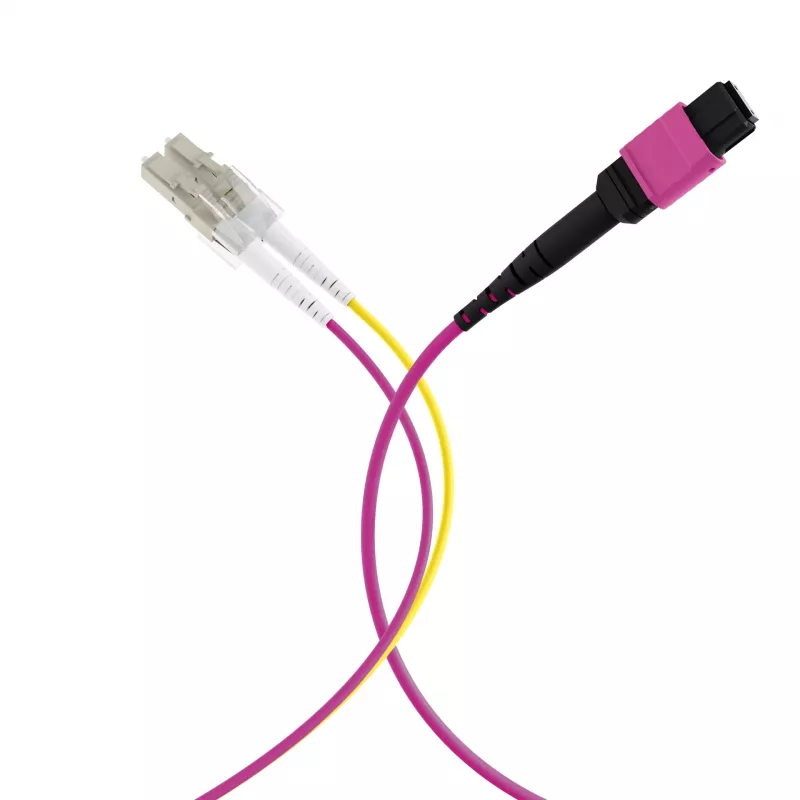

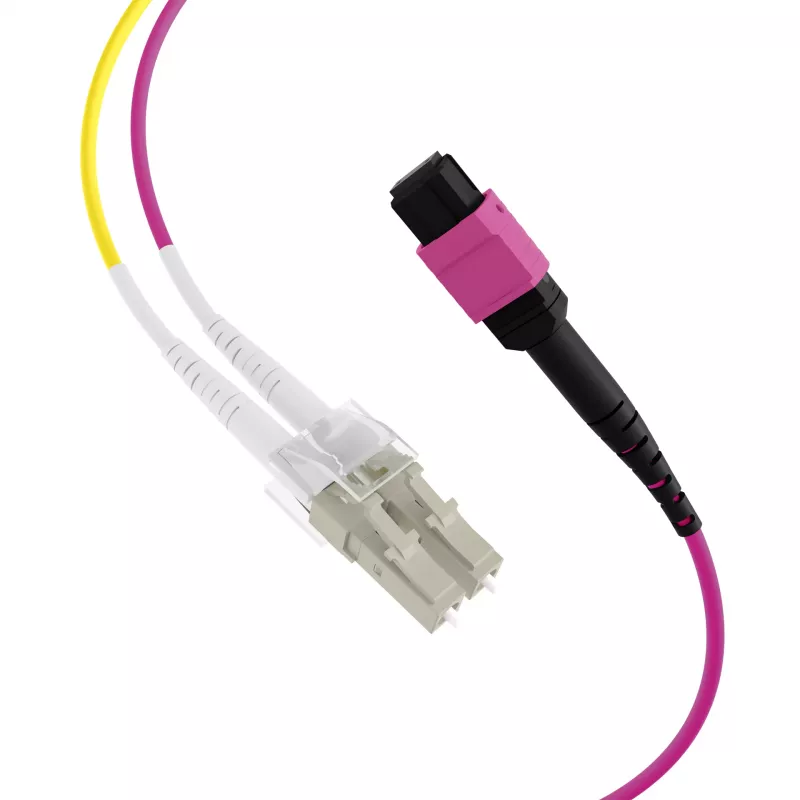

This trunk cable offers exceptional bandwidth and low insertion loss, supporting high-density patching and reducing signal degradation. The MPO-PLUS female connector on one end and four LC duplex connectors on the other enable seamless integration with existing LC-based equipment. The LSZH jacket ensures compliance with fire safety standards, making it suitable for use in confined spaces.

Suitable for

• Data center backbone cabling
• High-speed network connections (10GbE, 40GbE, 100GbE)
• Enterprise LAN and SAN environments
• Telecommunications infrastructure

Key specifications

• Fiber Type: Multimode OM4 (50/125 µm)
• Fiber Count: 8 fibers

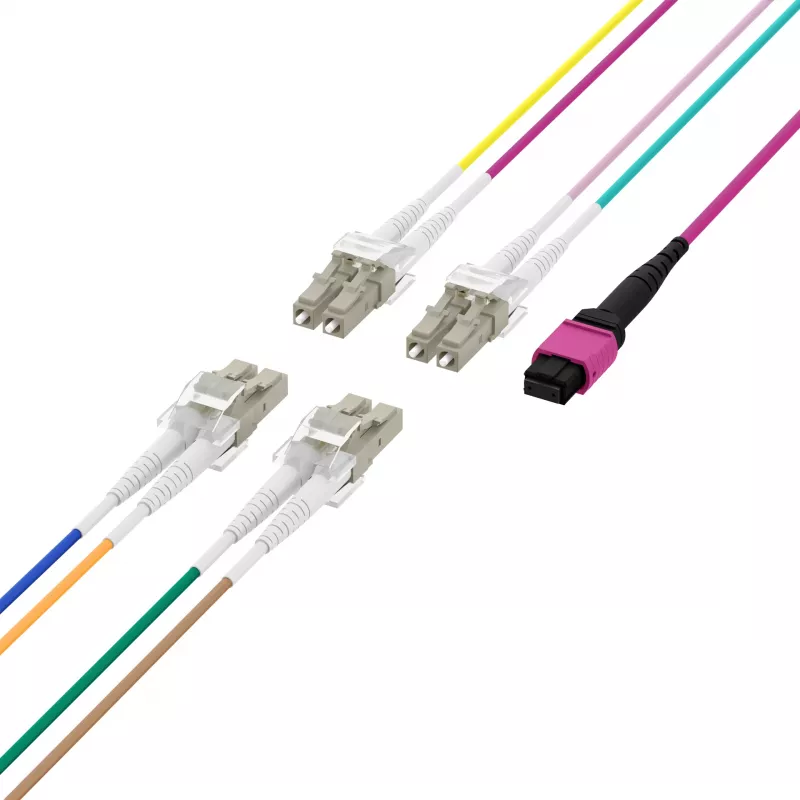

• Connector A: 1x MPO-PLUS Female (8-fiber)
• Connector B: 4x LC Duplex
• Polarity: Type B (Cross-over)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Heather Violet (Erika-violett)
• Cable Length: 5 meters
• Bandwidth (850nm): 4700 MHz-km
• Bandwidth (1300nm): 500 MHz-km
• Maximum Data Rate Support: 10GbE, 40GbE, 100GbE
• Max Distance (10GbE): 550m
• Max Distance (40GbE SR4): 150m
• Max Distance (100GbE SR4): 100m
• Insertion Loss (MPO): ≤ 0.35 dB
• Insertion Loss (LC): ≤ 0.25 dB
• Return Loss (MPO): ≥ 20 dB
• Return Loss (LC): ≥ 30 dB
• Operating Temperature: -20°C to +70°C
• Standards Compliance: IEC 60794-2-10, TIA/EIA-568-C.3, RoHS

Recommendations

For optimal performance, ensure that both ends of the cable are properly cleaned before connection. This cable is ideal for high-density patching in data centers where space and airflow are critical. Pair with OM4 compatible transceivers for best results.
