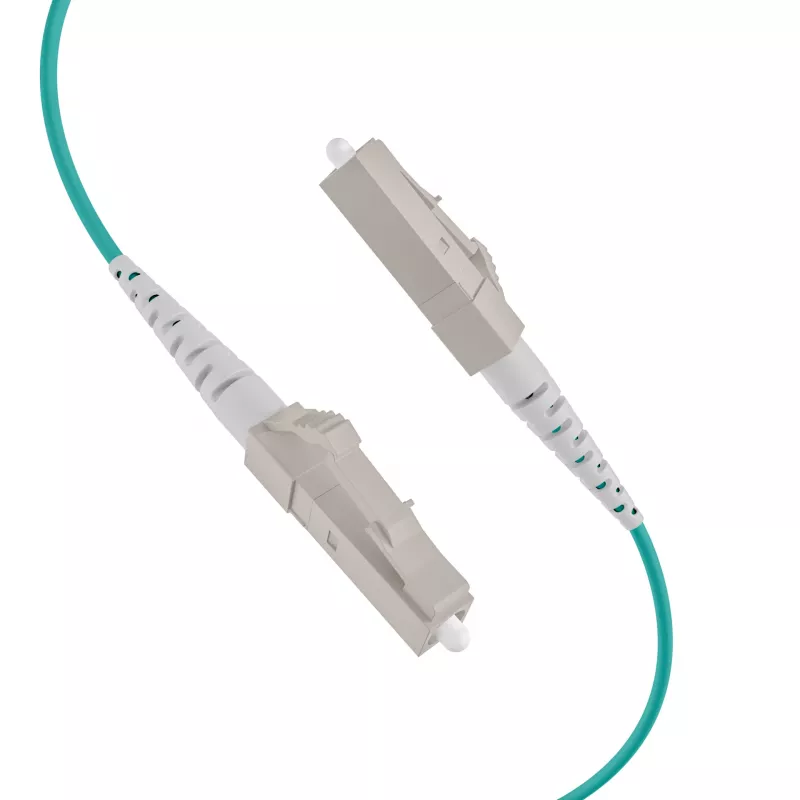

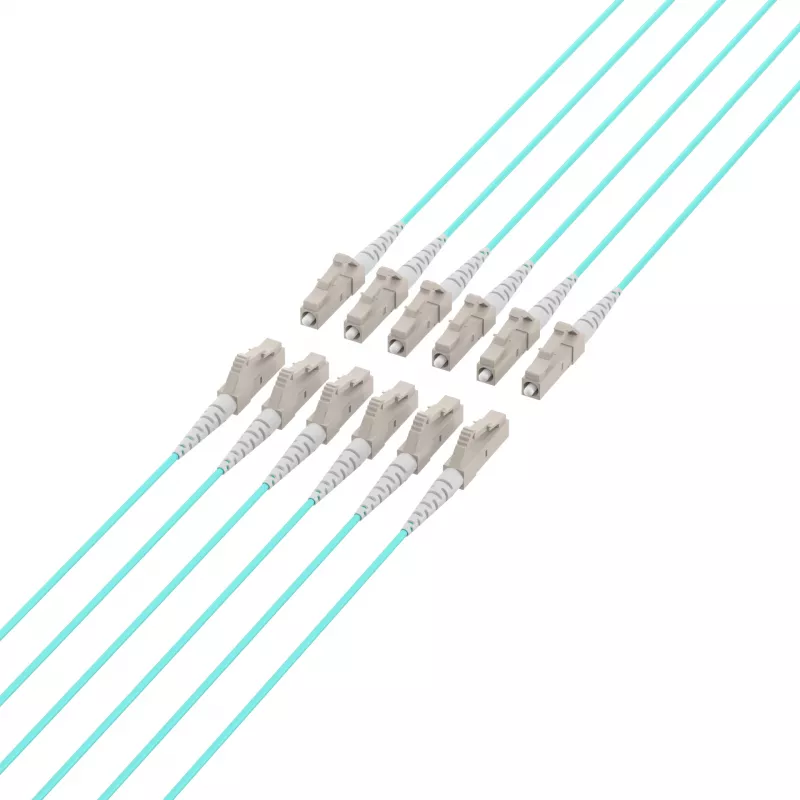

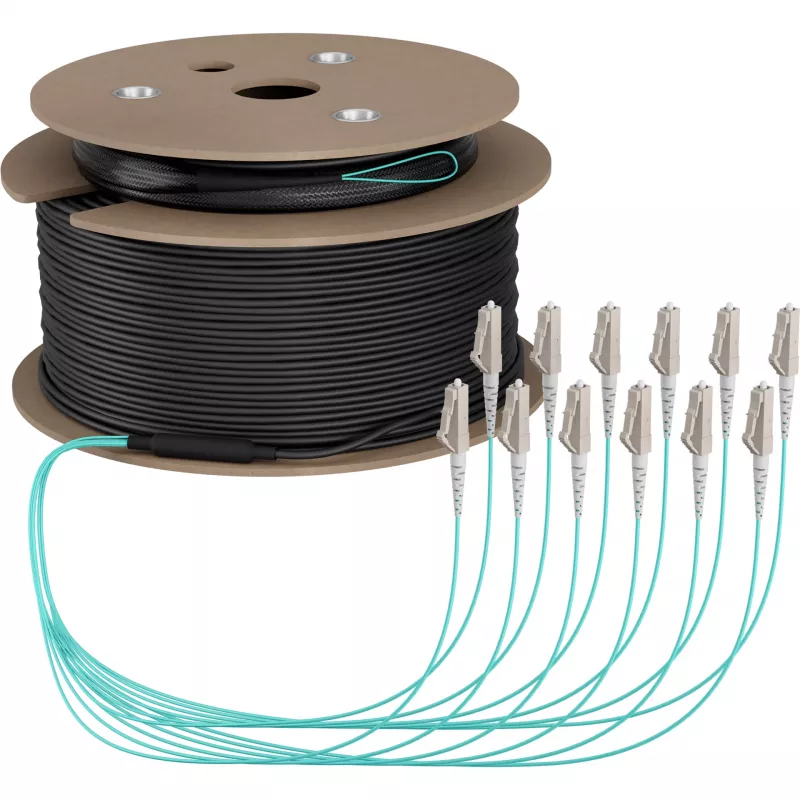

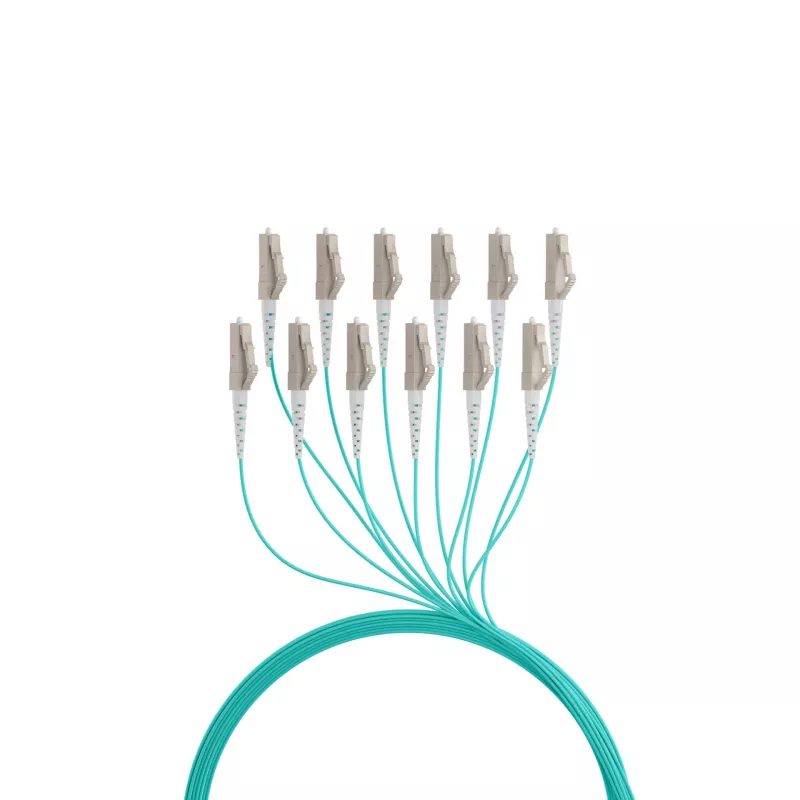

EFB Elektronik Cable troncal U-DQ ZN BH OM3 12G 1x12 LC-LC 100m Dca LSZH - 100 m O8342S100OM3

This fiber optic trunk cable provides a 100 m multimode OM3 backbone link with 12 fibers, terminated with LC connectors on both ends. It supports 10 Gigabit Ethernet over 850 nm for high-speed data center and LAN backbone applications.

Advantages

The LSZH jacket is halogen-free and flame-retardant, reducing toxic smoke in case of fire. The central loose tube design protects fibers from mechanical stress, while the non-metallic strain relief ensures durability in demanding installations.

Suitable for

• Data center backbone cabling
• LAN backbone connections
• 10GBASE-SR Ethernet links up to 100 m

Key specifications

• Fiber type: Multimode OM3, 50/125 µm
• 12 fibers, LC-LC connectors
• Length: 100 m
• Jacket: LSZH, CPR class Dca
• Construction: U-DQ ZN BH (central loose tube, non-metallic)

Recommendations

For installations requiring a halogen-free, flame-retardant trunk cable with high bandwidth over short to medium distances, this OM3 cable is a reliable choice.
