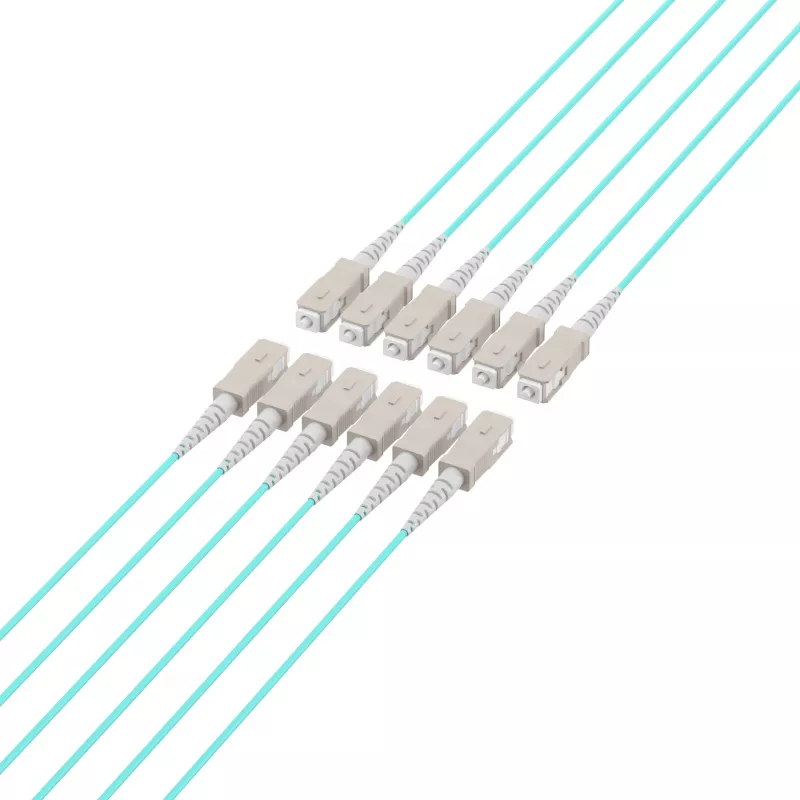

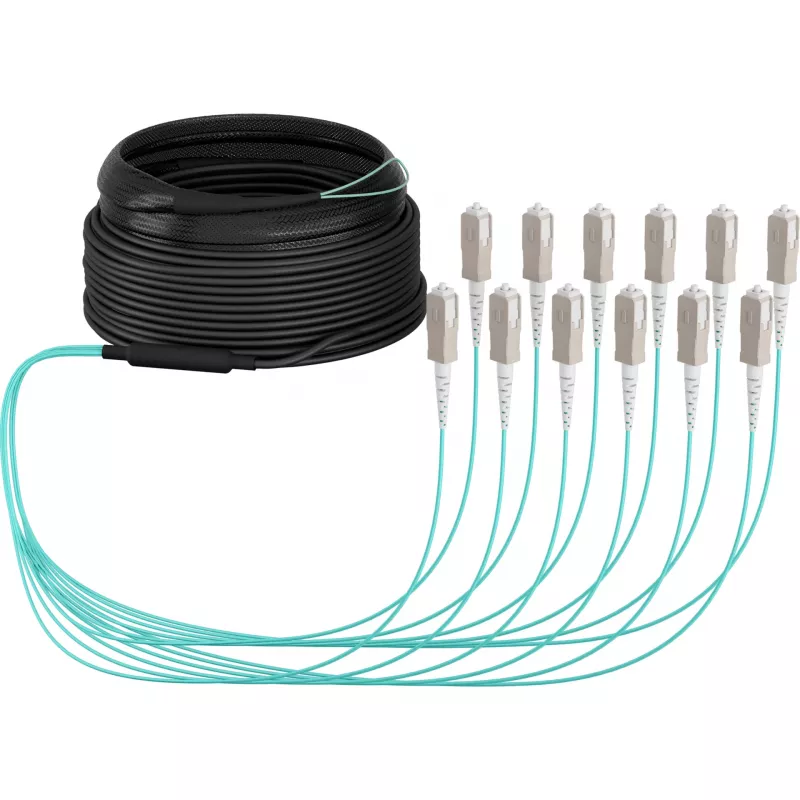

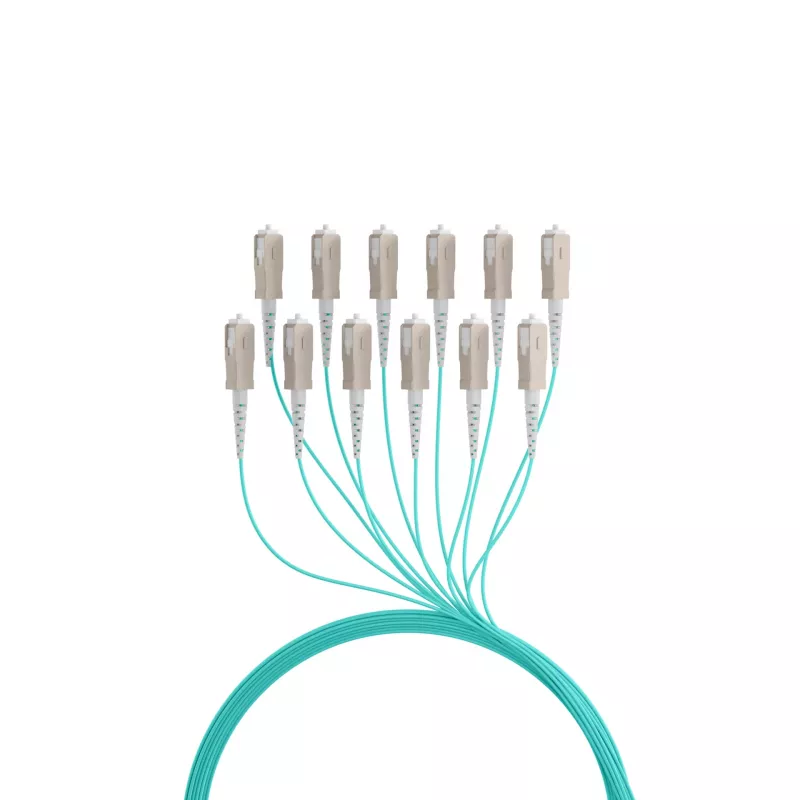

EFB Elektronik Cable troncal U-DQ ZN BH OM3 12G 1x12 SC-SC 30 m Dca LSZH O8341S30OM3

Multimode OM3 trunk cable with 12 fibers, SC to SC connectors, 30 m length, LSZH jacket, CPR Dca rating.

Overview

This EFB Elektronik trunk cable is designed for high-speed data transmission in data centers and LAN backbones. It features 12 multimode OM3 fibers with SC connectors on both ends. The cable is 30 meters long and has a low smoke zero halogen (LSZH) jacket with a Dca fire rating. The construction is U-DQ ZN BH, which indicates a universal central loose tube design with non-metallic strain relief and dry water-blocking.

What stands out

• 12 OM3 multimode fibers support 10G Ethernet up to 300 m

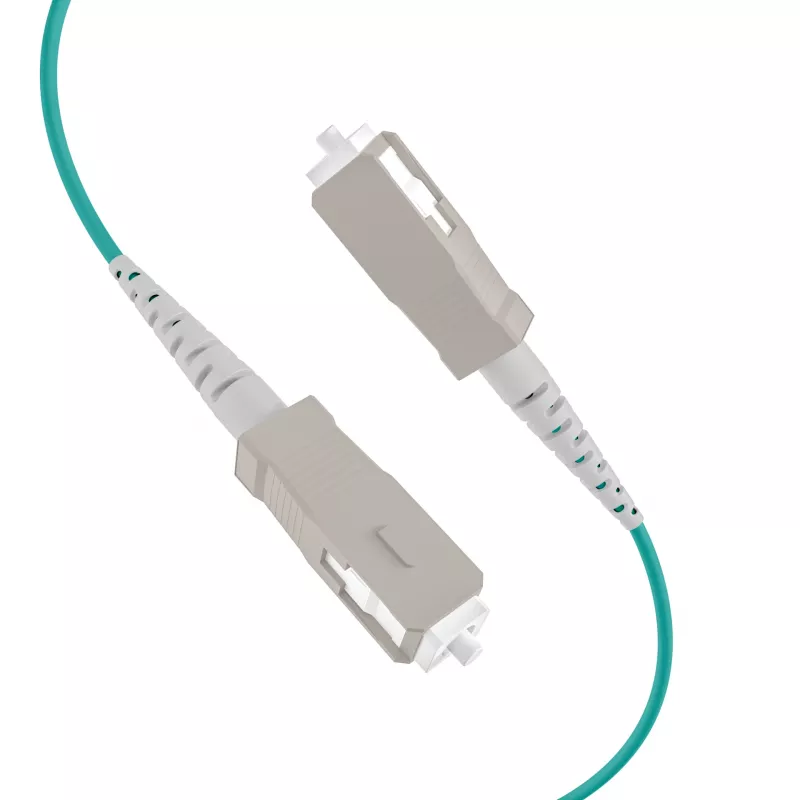

• SC connectors on both ends for reliable connections
• LSZH jacket reduces toxic smoke in case of fire
• CPR fire rating Dca for building safety
• Attenuation ≤2.8 dB/km at 850 nm and ≤1.0 dB/km at 1300 nm

Technical details

• Cable type: Fiber optic trunk cable
• Fiber type: Multimode OM3
• Number of fibers: 12
• Connector A: SC
• Connector B: SC
• Cable length: 30 m
• Jacket material: LSZH
• CPR fire rating: Dca
• Cable construction: U-DQ ZN BH
• Core configuration: 1x12
• Attenuation @ 850nm: ≤2.8 dB/km
• Attenuation @ 1300nm: ≤1.0 dB/km
• Bandwidth @ 850nm (OFL): 1500 MHz·km
• Bandwidth @ 1300nm (OFL): 500 MHz·km
• Jacket color: Aqua
• Operating temperature: -20°C to 70°C
• Storage temperature: -20°C to 70°C
• Application: Data Center, LAN, Backbone Cabling
• Connector polarity: Straight-through (A-B)

Our verdict

A robust 12-fiber OM3 trunk cable for high-density backbone runs, with SC connectors and LSZH jacket for safety-conscious installations.
