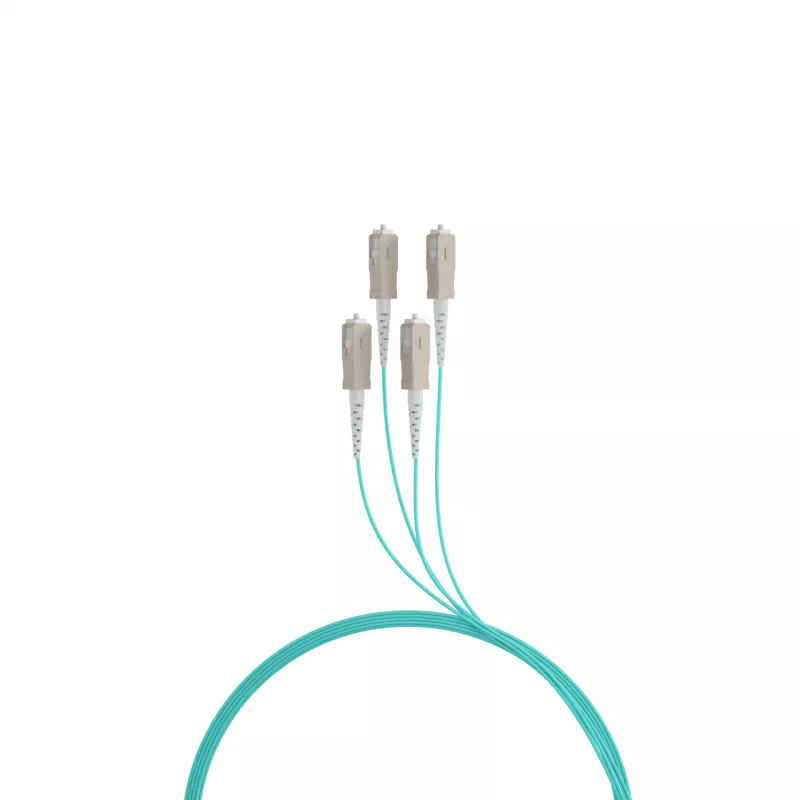

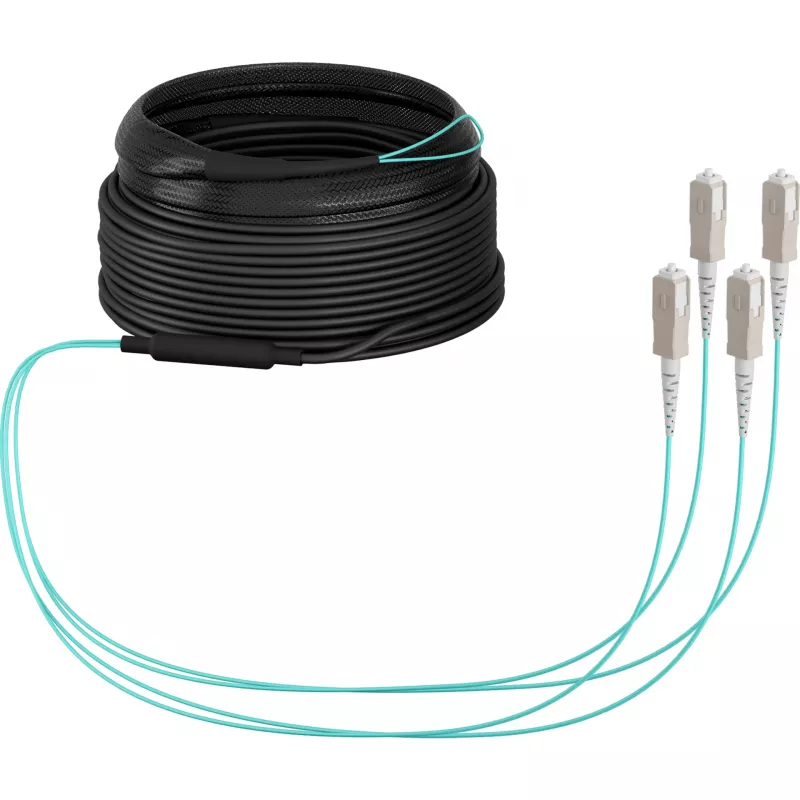

EFB Elektronik Cable troncal U-DQ ZN BH OM3 4G 1x4 SC-SC 40m Dca LSZH - 40 m O8301S40OM3

This EFB trunk cable stands out with its universal indoor/outdoor design and non-metallic rodent protection, making it a robust choice for demanding fiber optic installations. The OM3 multimode fiber supports high-speed data transmission over 40 meters, while the LSZH sheath ensures low smoke and zero halogen emissions in case of fire.

Highlights

• 4 OM3 multimode fibers in a 1x4 loose tube configuration

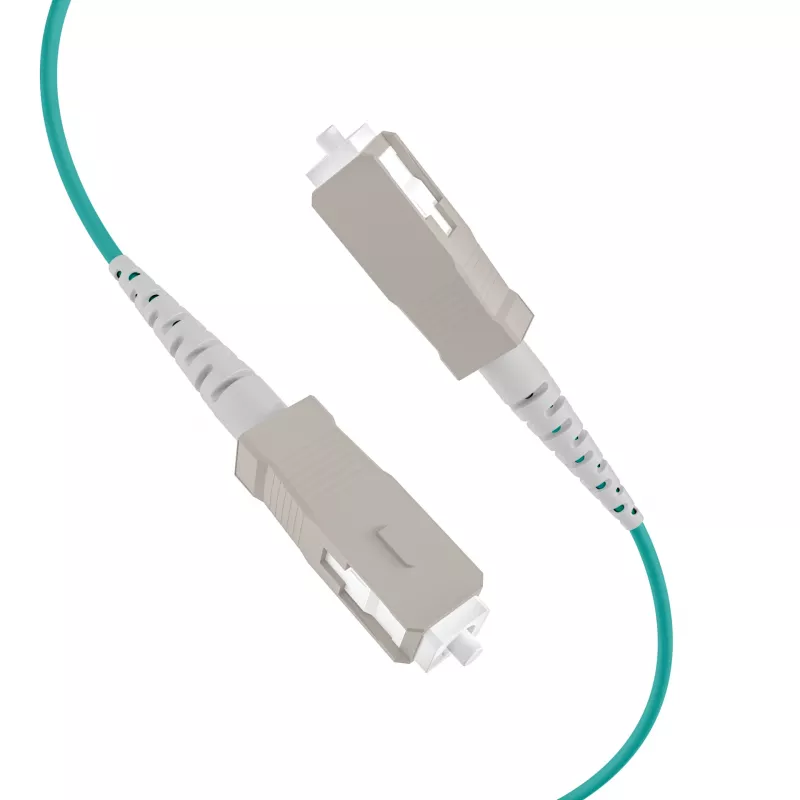

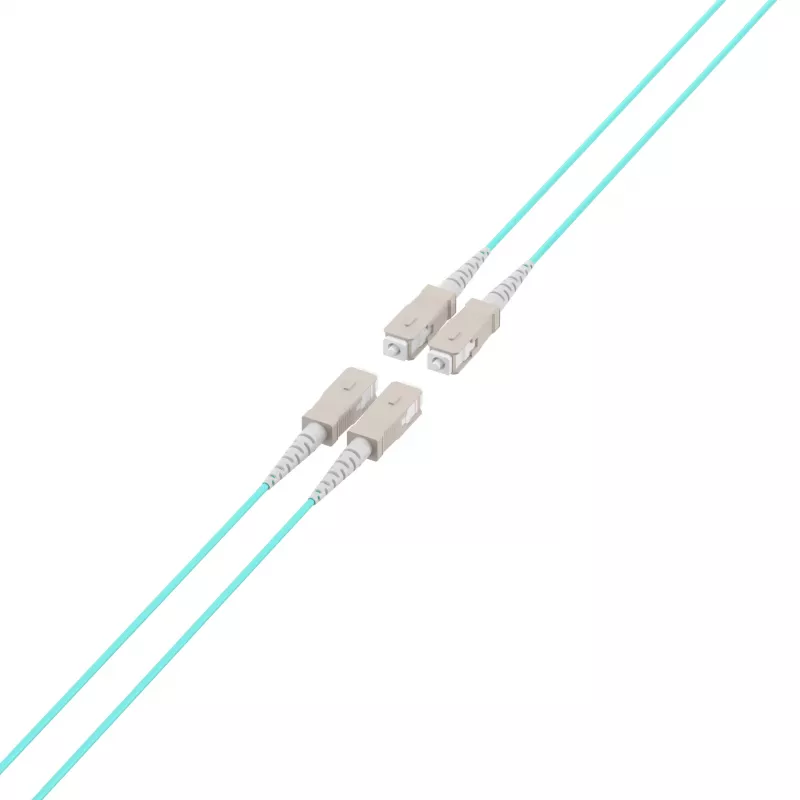

• SC to SC connectors pre-terminated on both ends
• 40 meter length with Dca CPR fire rating
• LSZH (Low Smoke Zero Halogen) sheath for safety
• Non-metallic rodent protection and strain relief

In daily use

Ideal for structured cabling in buildings or campus backbones, this trunk cable simplifies installation with factory-terminated connectors. The universal design allows use in both indoor and outdoor environments, while the halogen-free sheath meets strict fire safety regulations.

Full specifications

• Cable Type: Fiber Optic Trunk Cable
• Fiber Type: Multimode OM3
• Number of Fibers: 4
• Fiber Configuration: 1x4 (1 loose tube, 4 fibers)
• Connector Type A: SC
• Connector Type B: SC
• Cable Length: 40 m
• Sheath Material: LSZH (Low Smoke Zero Halogen)
• CPR Fire Rating: Dca
• Cable Construction Code: U-DQ ZN BH
• Application Environment: Universal (Indoor/Outdoor)
• Rodent Protection: Yes (Non-metallic glass yarns)
• Strain Relief: Non-metallic
• Halogen-free: Yes
• Flame Retardant: Yes
• Cable Design: Loose Tube

Final note

Factory-terminated and tested, this trunk cable reduces installation time and ensures reliable performance for your network infrastructure.
