EFB-Elektronik caja de pared 19" IP55, 12U, puerta de acero, profundidad 450 mm, RAL 7035

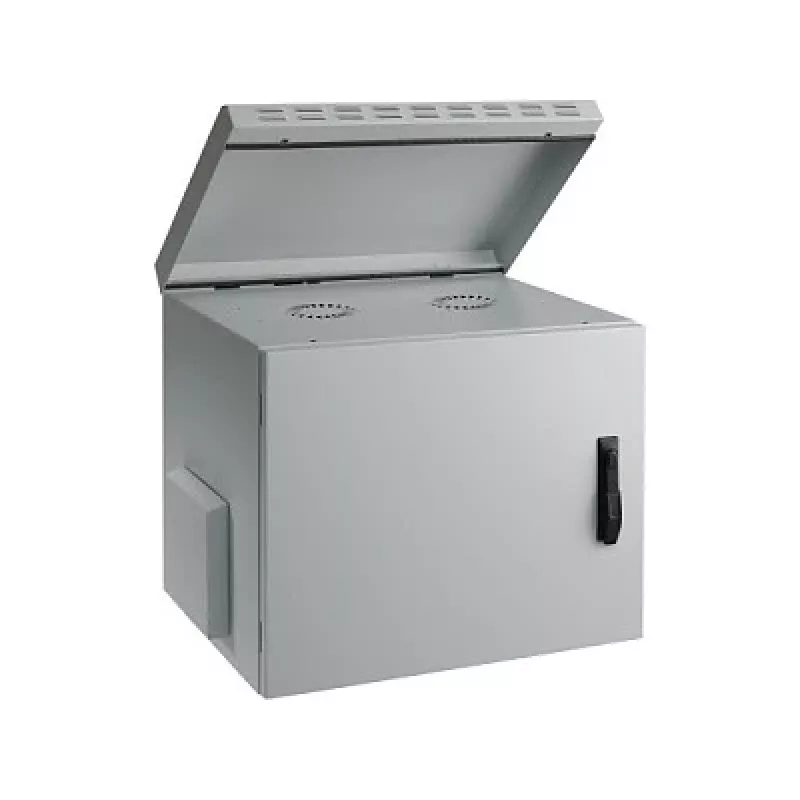

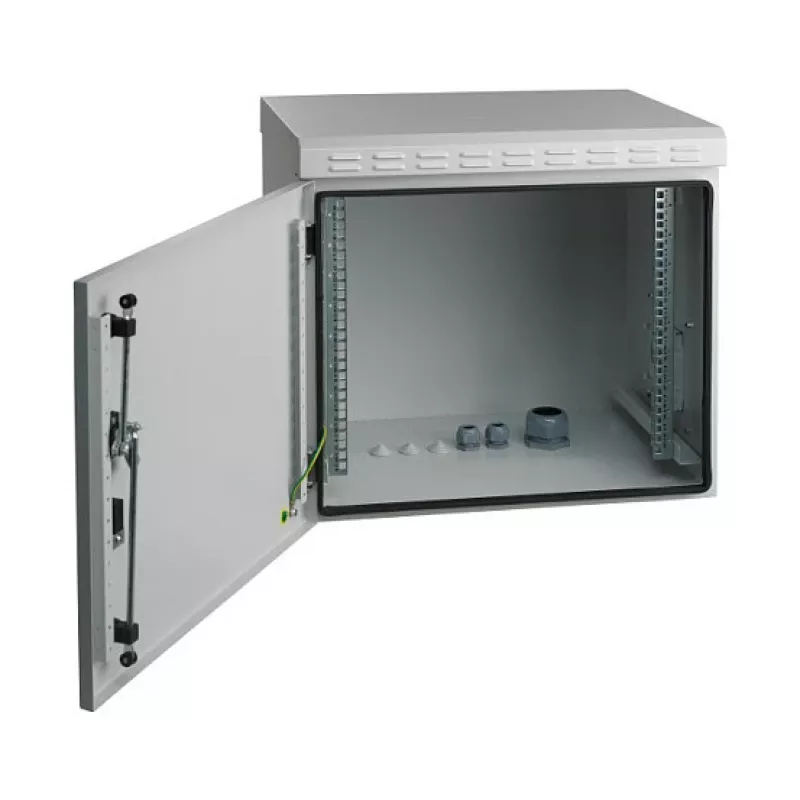

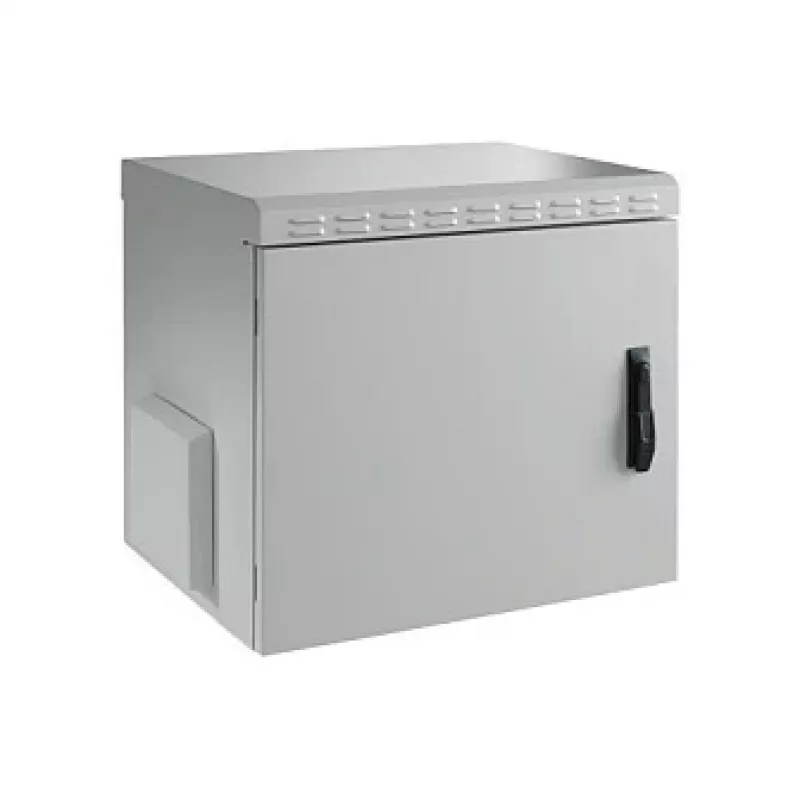

The EFB-Elektronik 691712IP55.1 is a robust 19-inch wall-mounted enclosure designed for demanding industrial and outdoor environments. With an IP55 protection rating, it offers excellent dust and water resistance, making it ideal for telecommunications, networking, and automation applications. The enclosure features a steel door with a 180-degree opening angle, depth-adjustable rack rails, and a single-point lock for security. Its light grey (RAL 7035) finish ensures a professional appearance.

Advantages

IP55 protection against dust and water jets; robust steel construction with a static load capacity of 60 kg; depth-adjustable mounting rails for flexible equipment installation; pre-punched cable entries at top and bottom; passive ventilation with fan-ready top panel; includes grounding kit for safety.

Suitable for

• Network and server equipment in industrial settings
• Outdoor or dusty environments requiring IP55 protection
• Wall-mounted installations where space is limited
• Telecommunications and automation cabinets

Key specifications

• Rack standard: 19 inch (48.3 cm)
• Height units: 12U
• Protection class: IP55
• External dimensions (WxHxD): 600 x 600 x 450 mm
• Usable depth: approx. 400 mm
• Door: Steel door with single-point lock, opening angle 180°
• Colour: RAL 7035 (light grey)
• Material: Steel
• Max. static load capacity: 60 kg
• Mounting: Wall-mounted
• Ventilation: Passive, fan unit ready (top)
• Side panels: Fixed
• Rack rails: Two pairs, depth-adjustable
• Grounding: Grounding kit included
• Number of doors: 1

Recommendations

For optimal performance, ensure proper ventilation and avoid exceeding the maximum load capacity. Use appropriate cable glands for sealed cable entries. This enclosure is ideal for housing active network components in harsh environments.
