EFB Elektronik Caja de pared 19 pulgadas IP55, 7U, puerta de acero, profundidad 600 mm, RAL 7035 (gris claro)

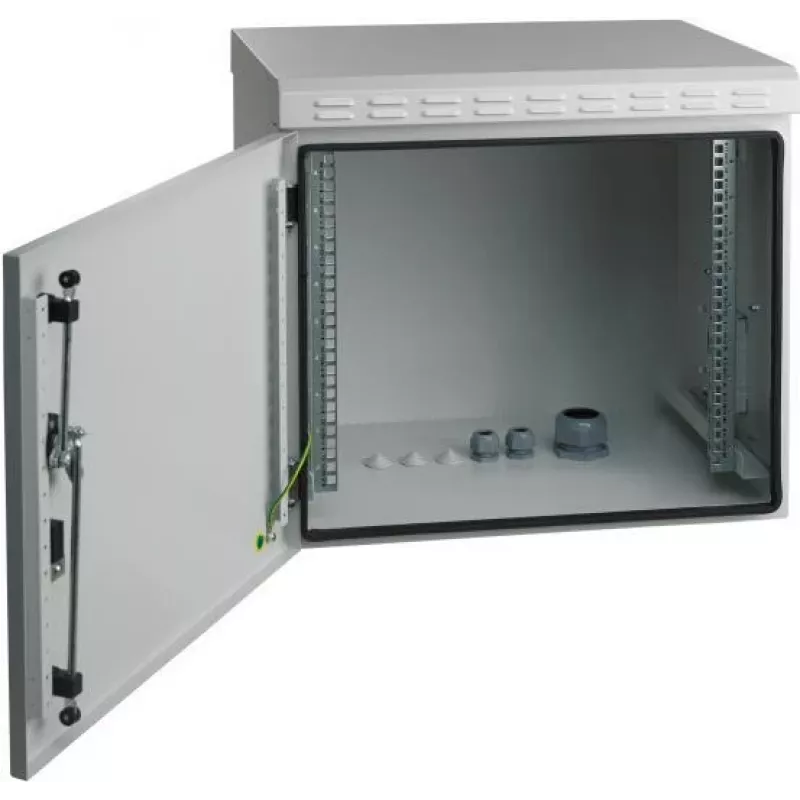

The EFB Elektronik 691707IP55.2 is a robust 19-inch wall-mount enclosure designed to protect sensitive network and IT equipment in demanding environments. With an IP55 protection rating, it offers reliable defense against dust and water jets, making it suitable for both indoor and outdoor protected installations. The enclosure features a steel door with a 180° opening angle and a single-point lock for secure access.

Advantages

This enclosure provides excellent protection and flexibility for organizing 19-inch rack equipment. The IP55 rating ensures operation in dusty or wet conditions, while the powder-coated steel construction guarantees long-lasting durability. The depth-adjustable 19-inch mounting rails allow for easy installation of various devices, and the top and bottom cable entries with knockouts simplify cable management.

Suitable for

• Industrial environments requiring dust and water protection
• Outdoor protected areas such as covered patios or warehouses
• Network cabinets for switches, patch panels, and servers
• Telecommunications and security system installations

Key specifications

• Rack Standard: 19 inch
• Rack Units: 7U
• Protection Rating: IP55
• Mounting Type: Wall-mount
• External Dimensions (W x H x D): 600 x 370 x 600 mm
• Front Door: Steel door with 180° opening angle
• Color: RAL 7035 (Light Grey)
• Material: Steel, powder-coated
• Locking Mechanism: Single-point lock
• Cable Entry: Top and bottom with knockouts
• 19" Mounting Rails: Two, front, depth-adjustable
• Side Panels: Fixed
• Compliance: RoHS

Recommendations

For optimal cable management, consider using cable glands and patch panels designed for IP55 enclosures. Ensure proper ventilation if installing active equipment with high heat output.
