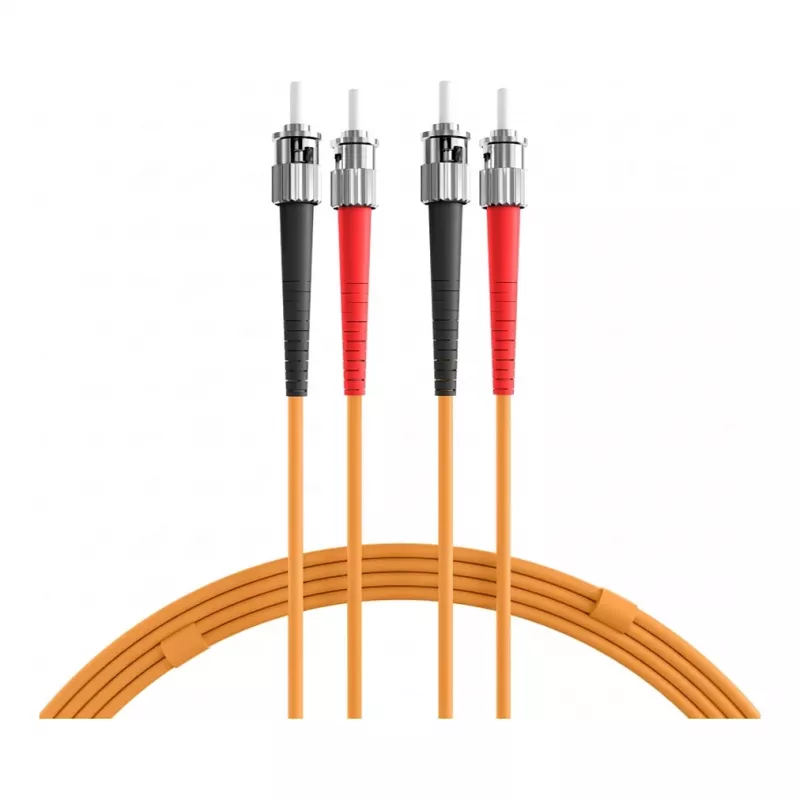

EFB Elektronik ECOFIBER Cable de conexión de fibra óptica Duplex ST-ST OM1, 3m, LSZH, naranja, 3,0mm

The EFB Elektronik ECOFIBER Duplex ST-ST OM1 Fiber Optic Patch Cable is a high-quality multimode patch cord designed for reliable data transmission in fiber optic networks. With a length of 3 meters, an orange LSZH jacket, and a 3.0mm diameter, this cable is ideal for connecting network devices in data centers, telecommunications rooms, and enterprise environments.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring excellent signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, making it suitable for use in confined spaces. The duplex ST connectors ensure secure and stable connections.

Suitable for

• Connecting fiber optic patch panels, switches, and routers
• Data center cabling infrastructure
• Telecommunications and enterprise networks
• Applications requiring OM1 multimode fiber performance

Key specifications

• Connector Type: Duplex ST to ST
• Fiber Mode: Multimode OM1 (62.5/125 µm)
• Cable Length: 3 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter: 3.0 mm
• Insertion Loss: ≤ 0.3 dB (typical)
• Return Loss: ≥ 20 dB (typical)
• Attenuation @ 850nm: ≤ 3.5 dB/km
• Attenuation @ 1300nm: ≤ 1.5 dB/km
• Bandwidth @ 850nm: 200 MHz·km
• Bandwidth @ 1300nm: 500 MHz·km
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure that the connectors are clean before installation. This cable is compatible with standard ST fiber optic interfaces and is suitable for use in structured cabling systems.
