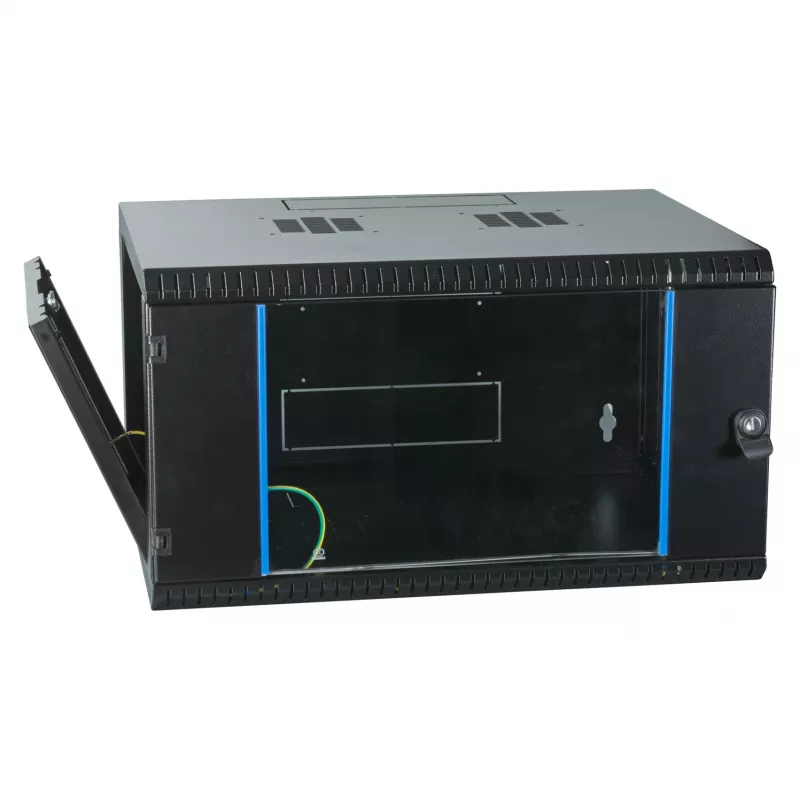

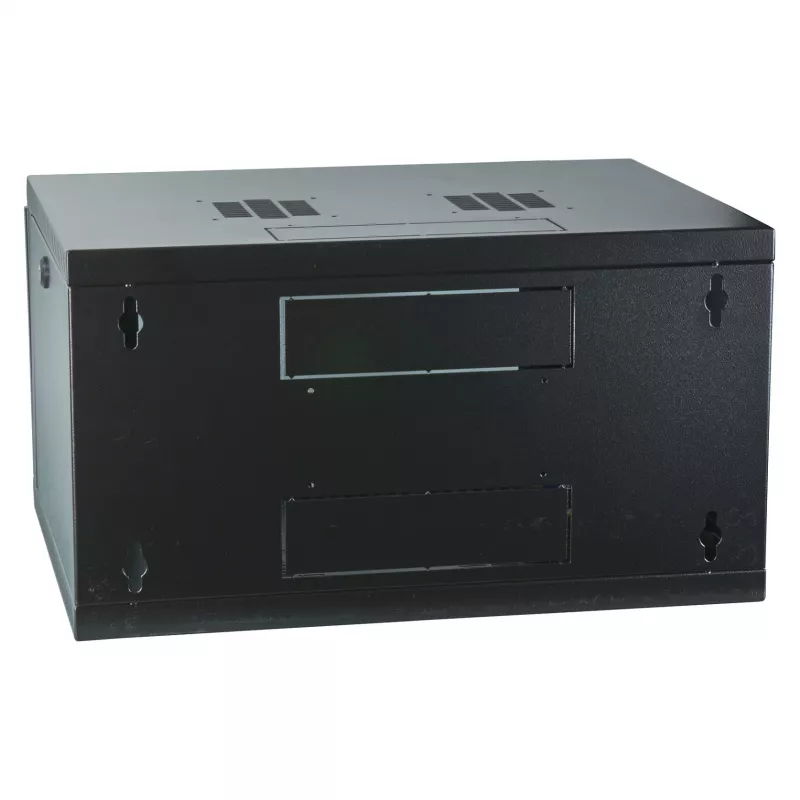

EFB-ELEKTRONIK armario de pared 19 inch 6U, fijo, 1 pieza, RAL 9005 negro intenso, profundidad 450 mm (691706VTS.45)

This EFB-ELEKTRONIK 19" wall-mount enclosure is a robust and secure housing solution for your network and IT equipment. Designed for fixed wall mounting, it offers a compact 6U height and a depth of 450 mm, making it ideal for smaller installations where space is at a premium. The enclosure is constructed from high-quality steel sheet and finished in RAL 9005 jet black, providing a professional appearance that blends seamlessly into any environment.

Advantages

Secure and lockable front door with safety glass protects your equipment from unauthorized access and dust. The 180° door opening angle allows for easy access during installation and maintenance. Passive ventilation openings ensure adequate airflow, and the enclosure is prepared for an optional fan unit if additional cooling is required. The continuously adjustable 19" profile rails (front and rear) provide flexible mounting depth for various devices.

Suitable for

• Mounting network switches, patch panels, and other 19" rack-mountable equipment in small server rooms, offices, or retail spaces.
• Wall-mounted installations where floor space is limited.
• Secure housing for critical IT infrastructure in environments requiring controlled access.

Key specifications

• Rack Units: 6U
• Rack Width: 19 inch
• Mounting Type: Wall-mount
• External Dimensions (W x H x D): 540 x 370 x 450 mm
• Colour: Jet Black (RAL 9005)
• Construction: 1-part, fixed frame
• Material: Steel sheet
• Front Door: Lockable safety glass door, opening angle 180°
• Side Panels: Fixed
• Cable Entry: Top and bottom with plastic covers
• Ventilation: Passive ventilation openings, prepared for fan unit
• Load Capacity: 60 kg
• Protection Class: IP20
• Mounting Rails: 2 pairs (front and rear) 19" profile rails, continuously adjustable in depth
• Security: Lockable front door

Recommendations

For optimal cable management, pair this enclosure with EFB-ELEKTRONIK cable management panels and accessories. Ensure adequate ventilation in the installation area; consider adding the optional fan unit for high-density configurations.
