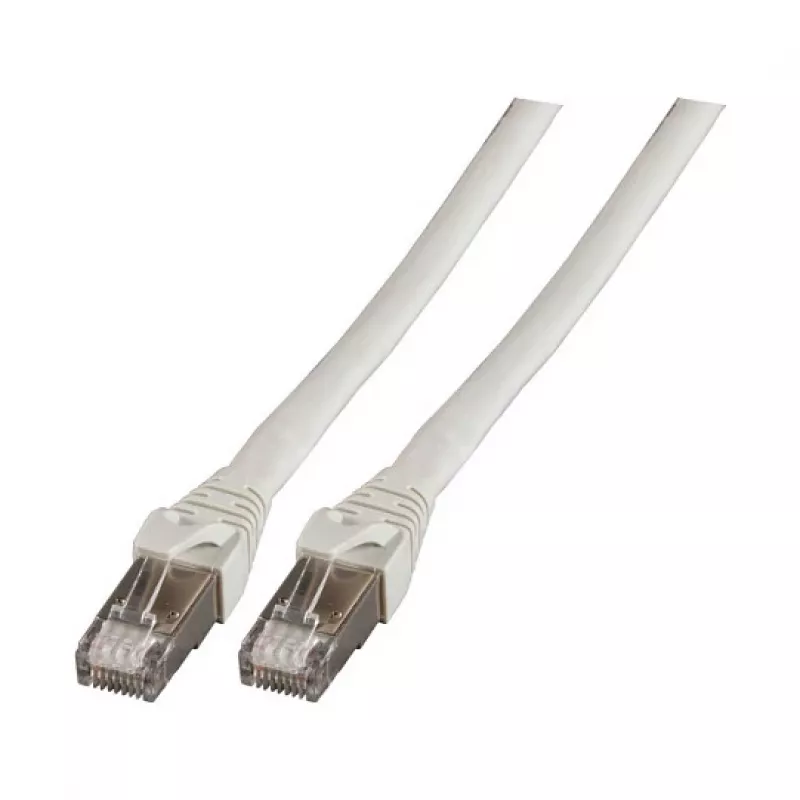

EFB-Elektronik Cable de conexión RJ45 Cat.6A S/FTP PVC UL gris 40m

The EFB-Elektronik RJ45 Patch Cable Cat.6A S/FTP PVC UL Grey 40m is a high-performance network cable designed for demanding Ethernet applications. With a length of 40 meters, it provides reliable connectivity for data centers, server rooms, and enterprise networks. The cable features S/FTP shielding (Screened Foiled Twisted Pair) to minimize electromagnetic interference, ensuring stable data transmission at speeds up to 10 Gbps over 500 MHz bandwidth. The PVC jacket is UL listed for safety and durability, and the grey color allows for easy identification in cable management systems.

Advantages

This patch cable offers superior signal integrity and protection against crosstalk and external noise, making it ideal for high-speed networks. The molded, snagless boots prevent connector damage during installation, and the gold-plated contacts ensure corrosion-free connectivity. The 27 AWG copper conductors guarantee excellent conductivity and long-term performance.

Suitable for

• 10 Gigabit Ethernet (10GBASE-T) networks
• Data centers and server rooms
• LAN and enterprise network infrastructure
• High-bandwidth applications requiring Cat.6A performance

Key specifications

• Cable Type: Patch Cable
• Cable Category: Cat.6A (Class EA)
• Shielding Type: S/FTP (PiMF)
• Connector Type: RJ45 Male to RJ45 Male
• Cable Length: 40 m
• Jacket Material: PVC (Polyvinyl Chloride)
• Colour: Grey
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Material: Copper
• Conductor Gauge: 27 AWG
• Wiring Standard: TIA/EIA 568B
• Connector Plating: Gold-plated (50µm)
• Boot Type: Molded, Snagless
• Impedance: 100 Ohm
• Operating Temperature: -20°C to +60°C

Recommendations

For optimal performance, use this cable with Cat.6A compatible switches, routers, and network devices. Ensure proper cable management to avoid kinking or sharp bends. This cable is not halogen-free; for environments requiring low smoke and zero halogen, consider LSZH alternatives.
