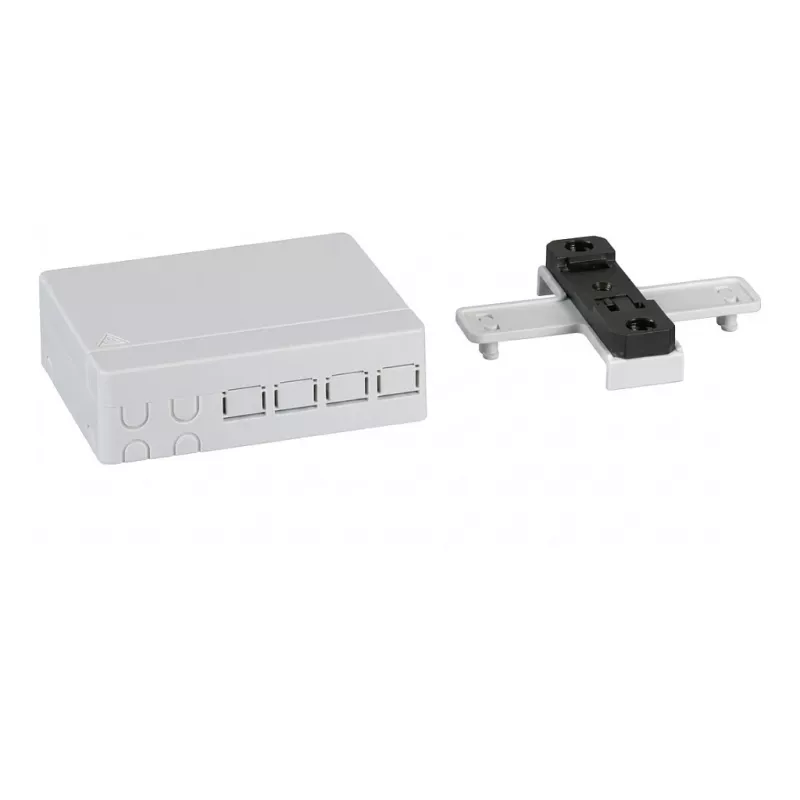

EFB-ELEKTRONIK FTTH caja DIN para carril para 4 fibras, 4 acopladores y reserva de longitud de fibra

The EFB-ELEKTRONIK FTTH-BOX-IN-5 is a high-quality indoor fiber optic distribution box designed for FTTH (Fiber to the Home) applications. It provides a secure and organized solution for terminating, splicing, and storing up to 4 fibers. The box is equipped with a DIN rail mounting system, making it ideal for installation in telecommunication cabinets or on walls. It features 4 adapter ports compatible with SC simplex or LC duplex adapters (not included), integrated splice holders, and excess fiber length storage. The robust ABS plastic housing in light grey (RAL 7035) ensures durability and protection with an IP20 rating. This box is perfect for network installers and telecom professionals seeking a reliable and space-saving fiber management solution.

Advantages

Easy DIN rail mounting for quick installation; compact design saves space; integrated fiber management reduces signal loss; durable ABS material ensures long life; versatile adapter compatibility for different network configurations.

Suitable for

• FTTH indoor installations
• Telecommunication cabinets
• Wall-mounted fiber distribution
• Network termination points

Key specifications

• Product Type: FTTH Indoor Fiber Optic Distribution Box
• Mounting Type: DIN Rail (Hutschiene)
• Fiber Capacity: 4 Fibers
• Adapter Capacity: 4 Ports
• Compatible Adapter Types: SC Simplex, LC Duplex (adapters not included)
• Splice Capacity: Up to 4 Fusion Splices
• Fiber Management: Integrated Splice Holder, Excess Fiber Length Storage
• Cable Entry: Multiple Entry Points for Drop/Patch Cables
• Material: Plastic (ABS)
• Color: Light Grey (RAL 7035)
• Protection Class: IP20
• Operating Temperature: -20°C to +70°C
• Application: Fiber to the Home (FTTH), Indoor
• Cover Type: Screw-on Cover

Recommendations

For optimal performance, use with SC/APC or LC/APC adapters and fusion splice protection sleeves. Ensure proper cable strain relief and bend radius protection during installation.
