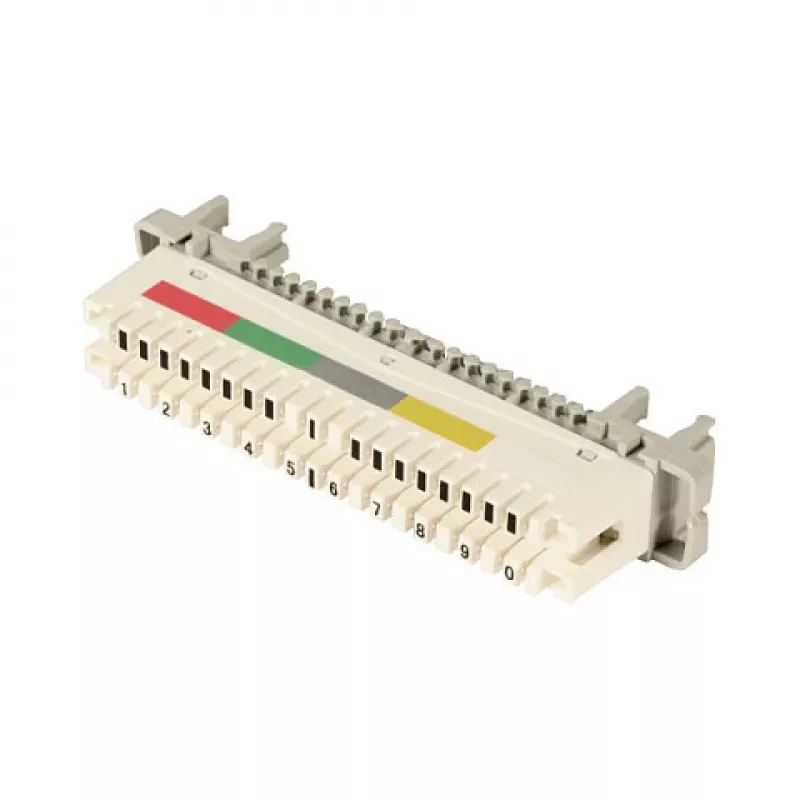

EFB-Elektronik Regleta de separación LSA 2/10 a 10DA para montaje en barras redondas, sin código de color (46005.2)

The EFB-Elektronik LSA Disconnection Strip 46005.2 is a high-quality telecommunications component designed for round bar mounting. It provides reliable disconnection and testing capabilities for 10 DA (double wires/pairs) in distribution frames and patch panels. Manufactured by EFB-Elektronik, this strip ensures durable performance with LSA-Plus IDC technology.

Advantages

This disconnection strip offers up to 200 re-termination cycles, ensuring long-term usability. Its silver-plated phosphor bronze contacts provide low contact resistance (<2 mOhm) and high insulation resistance (>5 x 10^4 MOhm). The PBT housing is self-extinguishing (UL 94 V-0) and operates reliably from -20°C to +70°C.

Suitable for

• Telecommunication distribution frames
• Patch panels and data networks
• Testing and disconnection of circuits

Key specifications

• Product Type: LSA Disconnection Strip
• Connection Technology: LSA-Plus (IDC)
• Number of Pairs: 10 DA
• Mounting Type: Round Bar Mounting
• Color Coding: Without Color Code
• Wire Diameter (Solid): 0.4 - 0.8 mm (AWG 26-20)
• Insulation Diameter: 0.7 - 1.4 mm
• Contact Material: Phosphor Bronze / Brass, Silver Plated
• Housing Material: PBT
• Re-termination Cycles: Up to 200
• Contact Resistance: <2 mOhm
• Insulation Resistance: >5 x 10^4 MOhm
• Dielectric Strength: 2 kV (50 Hz, 1 min)
• Operating Temperature: -20°C to +70°C
• Flammability Rating: UL 94 V-0
• Standard Compliance: IEC 60352-3, DIN EN 60947-7-1
• Disconnection Function: Yes
• Tool Compatibility: LSA Insertion Tool

Recommendations

For optimal installation, use an LSA insertion tool. This strip is ideal for structured cabling and telecom applications requiring reliable disconnection.
