EFB-Elektronik Riel de puesta a tierra 2/10 para rack de 19 pulgadas equipotencial, Cobre, 482,6 mm

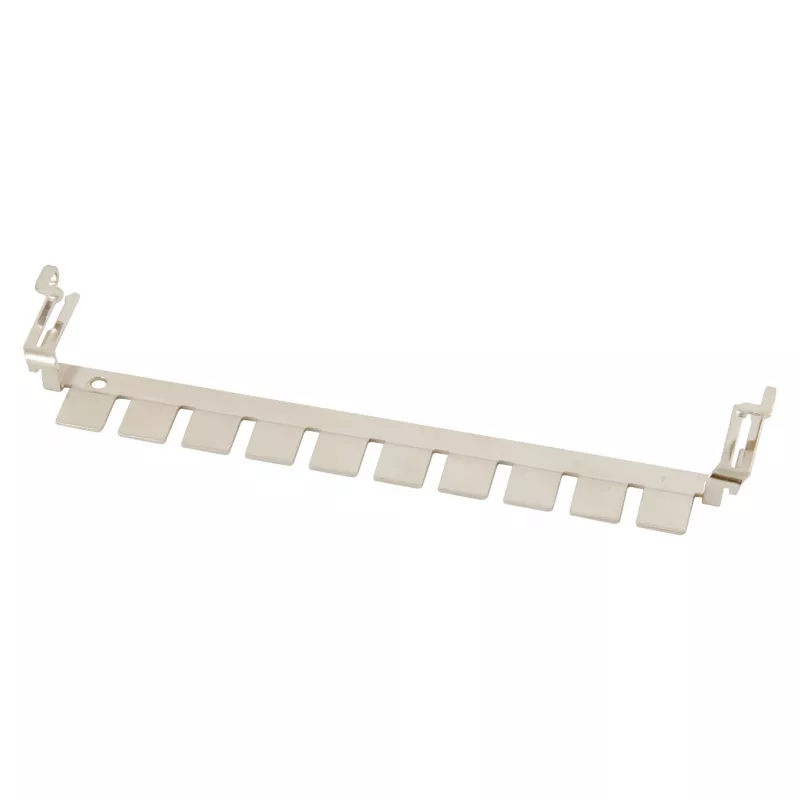

The EFB-Elektronik Grounding Rail 2/10 (model 46152.1) is a high-quality earthing and potential equalization component designed for 19" rack systems. Manufactured by EFB-Elektronik, this grounding rail ensures reliable electrical safety and signal integrity for active and passive rack-mounted equipment.

Advantages

Made from natural copper with excellent electrical conductivity and corrosion resistance. Complies with DIN EN 50310 and VDE 0618-1 standards for professional installations. Compact design saves space while providing 2 main grounding connections (M5 screw terminals) and 10 equipment grounding connections (M4 screw terminals).

Suitable for

• 19" racks and cabinets in data centers, telecom rooms, and industrial environments
• Potential equalization of servers, switches, patch panels, and other rack components
• Earthing systems requiring high reliability and low impedance

Key specifications

• Product Type: Grounding Rail
• Application: 19" Rack Potential Equalization
• Material: Copper (Cu)
• Number of Main Grounding Connections: 2
• Main Grounding Connection Type: M5 Screw Terminal
• Number of Equipment Grounding Connections: 10
• Equipment Grounding Connection Type: M4 Screw Terminal
• Mounting Compatibility: 19" Rack Systems
• Length: 482.6 mm
• Width: 20 mm
• Thickness: 5 mm
• Standard Compliance: DIN EN 50310, VDE 0618-1
• Finish: Natural Copper
• Installation: Horizontal mounting within rack frame or on mounting rails

Recommendations

For optimal performance, use with appropriate copper grounding cables and ensure all connections are tightened to manufacturer specifications. Suitable for use in environments requiring high electrical conductivity and corrosion resistance.
