EFB-Elektronik Set caja de empalme compacta LC, RAL 7035, H=265 x W=150 x D=55 mm

The EFB-Elektronik Compact Splice Box Set LC is a high-quality wall-mountable fiber optic enclosure designed for indoor termination and splicing. With a robust powder-coated steel housing in RAL 7035 light grey, this splice box offers reliable protection for up to 12 fibers. It comes pre-configured with 6 LC duplex adapters and includes a splice tray, cable glands, and mounting hardware for quick installation. Ideal for FTTH, LAN, and data center applications, this compact unit ensures efficient cable management and easy access for maintenance.

Advantages

Space-saving design with integrated cable routing; durable steel construction; tool-free access via screw lock; supports both single-mode and multi-mode fibers; complete set includes all necessary accessories for immediate deployment.

Suitable for

• Fiber optic termination and splicing in telecom rooms
• FTTH distribution points
• Local area network (LAN) infrastructure
• Data center patching and splicing

Key specifications

• Product Type: Fiber Optic Splice Box

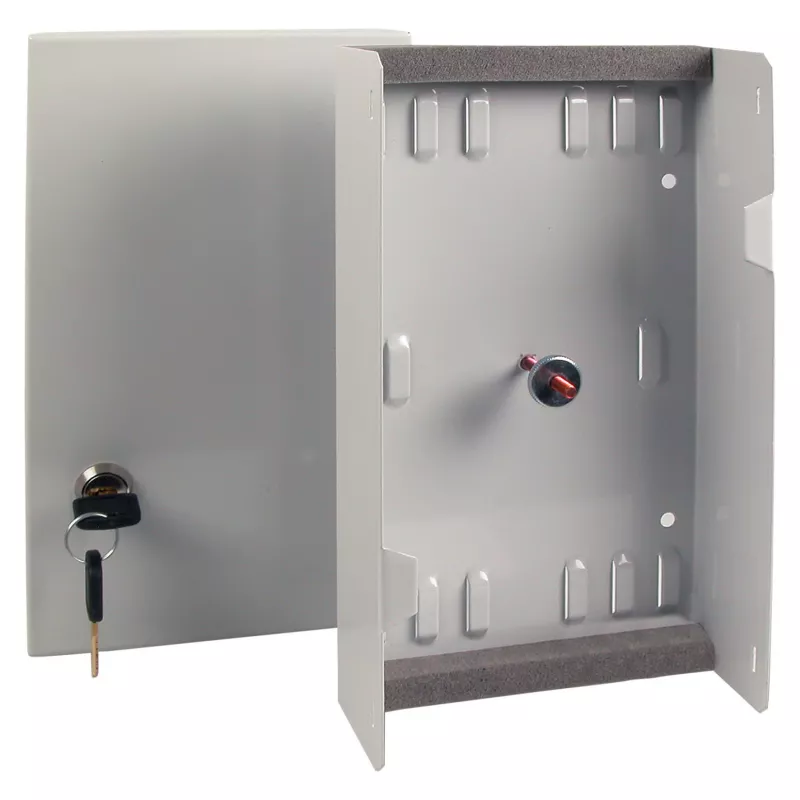

• Housing: Wall-mount enclosure, powder-coated steel sheet
• Colour: RAL 7035 (Light Grey)
• Dimensions: 265 x 150 x 55 mm (H x W x D)
• Connector Type: LC Duplex
• Fiber Capacity: Up to 12 fibers

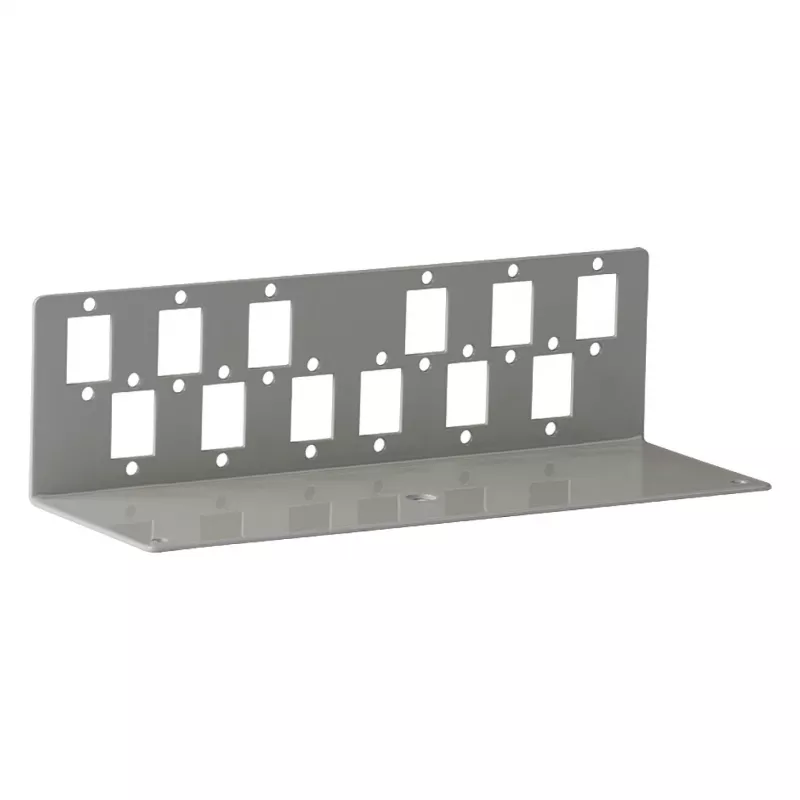

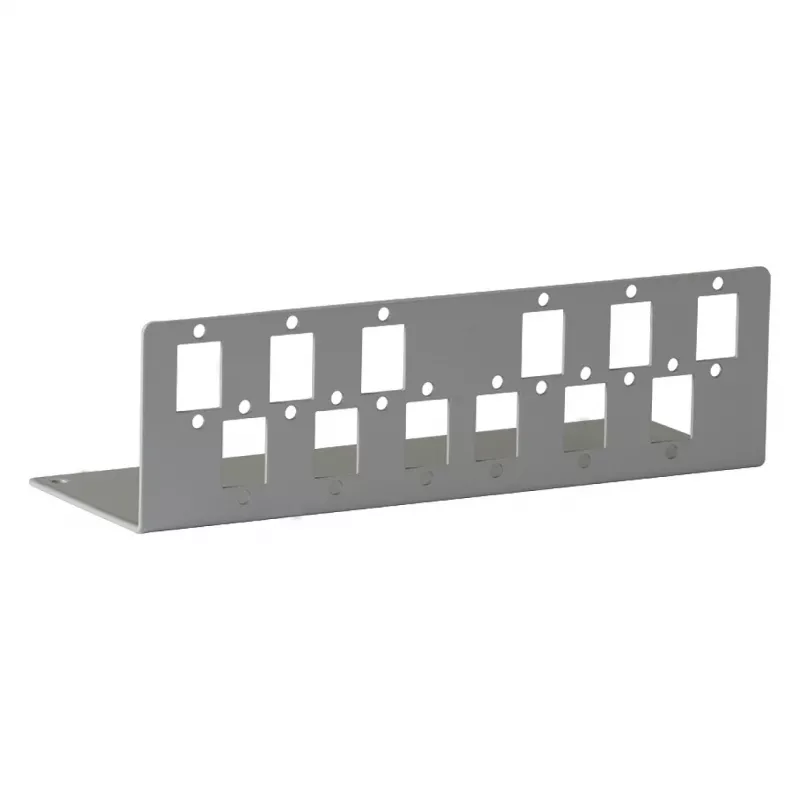

• Adapter Slots: 6x LC Duplex
• Splice Tray Capacity: 12 splices
• Cable Entry: Multiple (e.g., 2x M20/M25)
• Mounting: Wall-mountable
• Application: Indoor
• Door Type: Hinged with screw lock
• Included Accessories: Splice tray, cable glands, mounting hardware
• Cable Management: Integrated internal routing
• Compatibility: Single-mode (OS2) and Multi-mode (OM2/OM3/OM4) fibers

Recommendations

For optimal performance, use with EFB-Elektronik LC patch cables and appropriate fiber optic connectors. Ensure proper cable strain relief and follow standard splicing procedures.
