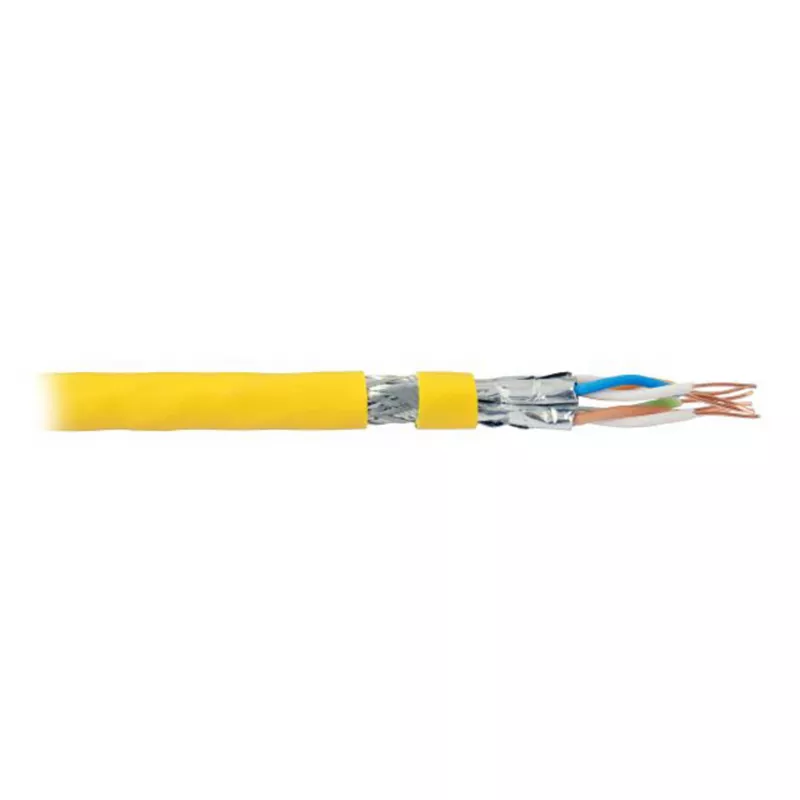

EFB-ELEKTRONIK UC FUTURE C22 Cat.8.2 S/FTP 4P 2GHz LSHF-FR Cable de instalación 100m

The EFB-ELEKTRONIK UC FUTURE C22 is a high-performance Category 8.2 installation cable designed for demanding 40 Gigabit Ethernet networks. With S/FTP shielding (PiMF) and a bandwidth of 2000 MHz, it ensures excellent signal integrity and minimal crosstalk. The cable features 4 pairs of 22 AWG solid bare copper conductors, a low smoke halogen-free flame retardant (LSHF-FR) jacket, and a length of 100 meters. It is backward compatible with Cat.6a, Cat.6, and Cat.5e, making it a future-proof choice for data centers and enterprise networks.

Advantages

Supports data rates up to 40 Gbps, ensuring readiness for next-generation applications. The S/FTP shielding provides superior protection against electromagnetic interference. LSHF-FR jacket enhances safety by reducing toxic smoke in case of fire. Solid conductor construction ensures reliable performance over long distances.

Suitable for

• Data center structured cabling
• Enterprise network backbones
• High-speed server connections
• 40GBASE-T installations

Key specifications

• Category: 8.2 (Cat.8.2)
• Shielding: S/FTP (PiMF)
• Frequency: 2000 MHz
• Conductor: 22 AWG solid bare copper
• Pairs: 4
• Jacket: LSHF-FR
• Length: 100 m
• Impedance: 100 Ohm
• Flame retardancy: IEC 60332-3-24 (Cat. C)
• Halogen free: IEC 60754-1/2
• Smoke density: IEC 61034-2
• Operating temperature: -20°C to +60°C
• Installation temperature: 0°C to +50°C

Recommendations

For optimal performance, use with compatible Cat.8.2 connectors and ensure proper installation practices. This cable is ideal for new installations or upgrades to 40 Gbps networks.
