EFB Elektronik INFRALAN Cat.7 1000 AWG23 S/FTP 2x4P CPR Eca naranja cable de instalación 500m

The EFB Elektronik INFRALAN Cat.7 1000 AWG23 S/FTP 2x4P CPR Eca Orange Installation Cable is a high-performance data cable designed for structured cabling in data centers and LAN networks. With a bandwidth of up to 1000 MHz, it supports 10 Gigabit Ethernet (10GBASE-T) and meets the stringent requirements of modern network infrastructures.

Advantages

This cable offers exceptional signal integrity and minimal crosstalk thanks to its S/FTP shielding (screened and foiled twisted pairs). The solid bare copper conductors ensure reliable transmission over long distances, while the LSZH (Low Smoke Zero Halogen) jacket enhances safety in case of fire. The CPR Eca classification makes it suitable for installation in commercial and residential buildings.

Suitable for

• Structured cabling systems
• Data center installations
• LAN networks requiring high bandwidth
• 10 Gigabit Ethernet applications
• Building infrastructure with fire safety requirements

Key specifications

• Cable Category: Cat.7

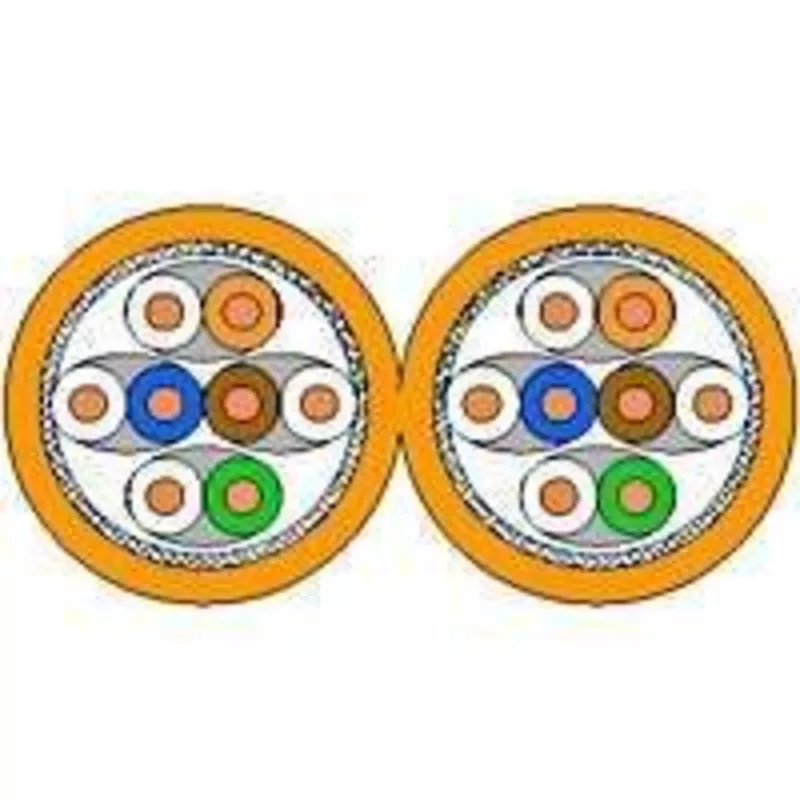

• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Gauge: AWG23
• Number of Pairs: 2x4 (Duplex)
• Conductor Material: Solid Bare Copper
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Length: 500 m
• CPR Fire Class: Eca
• Bandwidth: Up to 1000 MHz
• Data Rate Support: 10 Gigabit Ethernet (10GBASE-T)
• Impedance: 100 Ohm
• Outer Diameter: Approx. 16.0 mm (2x 7.8 mm)
• Operating Temperature: -20°C to +60°C
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Halogen Free: Yes

Recommendations

For optimal performance, use with compatible Cat.7 connectors and ensure proper grounding of the shielding. This cable is ideal for new installations or upgrades where high data rates and future-proofing are required.
