EFB Elektronik INFRALAN U-DQ(ZN)BH 12G 50/125µm OM5 LSZH negro CPR Dca cable de fibra óptica

The EFB Elektronik INFRALAN U-DQ(ZN)BH 12G 50/125µm OM5 LSZH Black CPR Dca is a high-performance fiber optic cable designed for demanding indoor/outdoor installations. With 12 multimode fibers and OM5 wideband performance, it supports high-speed data transmission over short to medium distances, ideal for data centers, enterprise networks, and campus backbones.

Advantages

OM5 wideband multimode fiber enables transmission over multiple wavelengths (850-953 nm), increasing capacity without additional fibers. LSZH jacket ensures safety in confined spaces by emitting low smoke and no halogen in case of fire. CPR Dca classification confirms compliance with European fire safety standards for indoor use.

Suitable for

• Data center interconnects
• Enterprise LAN backbones
• Campus networks
• Indoor/outdoor trunk cabling

Key specifications

• Fiber type: Multimode OM5 (50/125 µm)
• Fiber count: 12

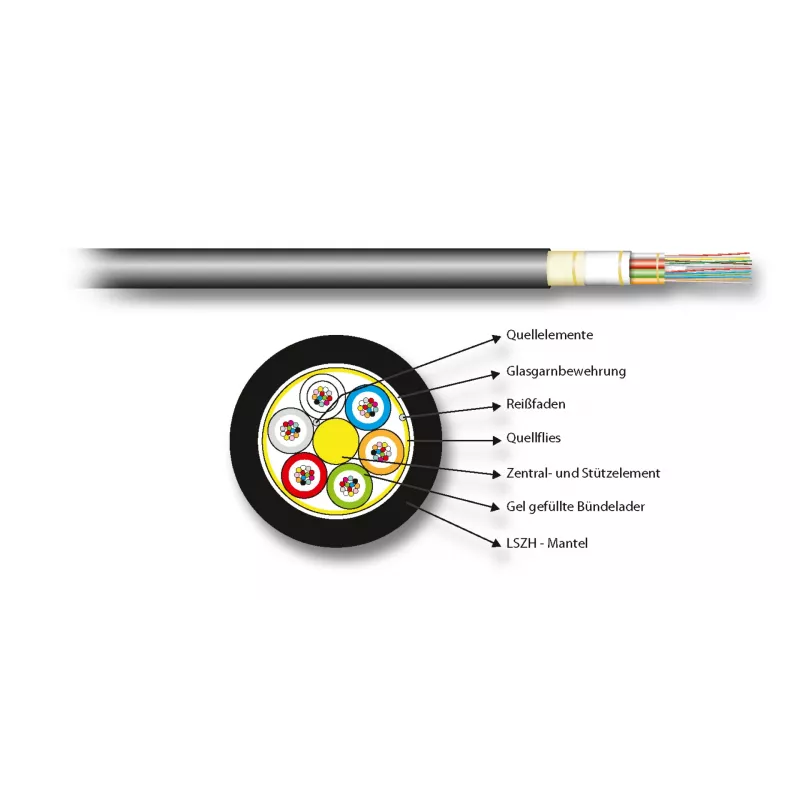

• Cable construction: Loose tube (U-DQ(ZN)BH)
• Jacket material: LSZH, black
• CPR class: Dca
• Attenuation: ≤2.3 dB/km @ 850/953 nm, ≤0.6 dB/km @ 1300 nm
• Bandwidth: ≥2000 MHz·km @ 850/953 nm
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance, pair with OM5-compatible transceivers and connectors. Ensure proper cable management and bend radius during installation.
