EFB Elektronik IPL-DF-LCULCU-2-0050 Cable de conexión de fibra óptica OS2 Dúplex LC/UPC a LC/UPC, 0,5 m, Amarillo, LSZH

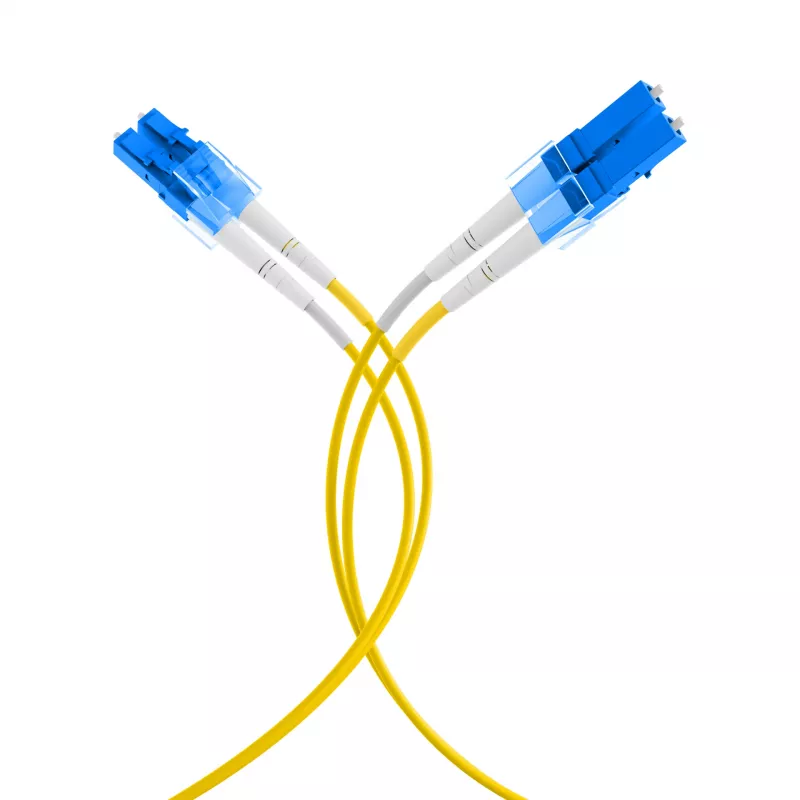

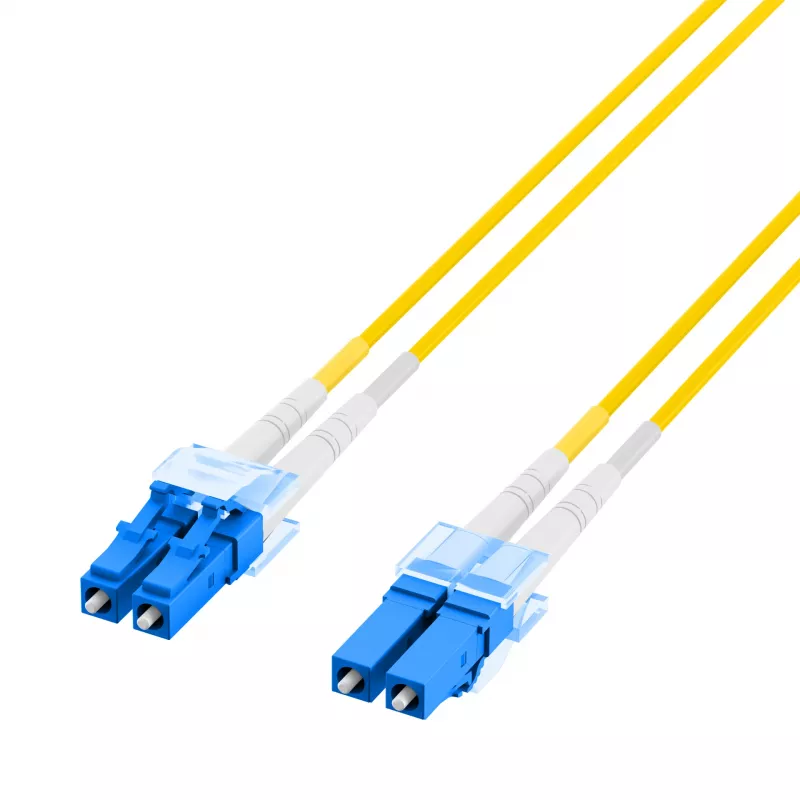

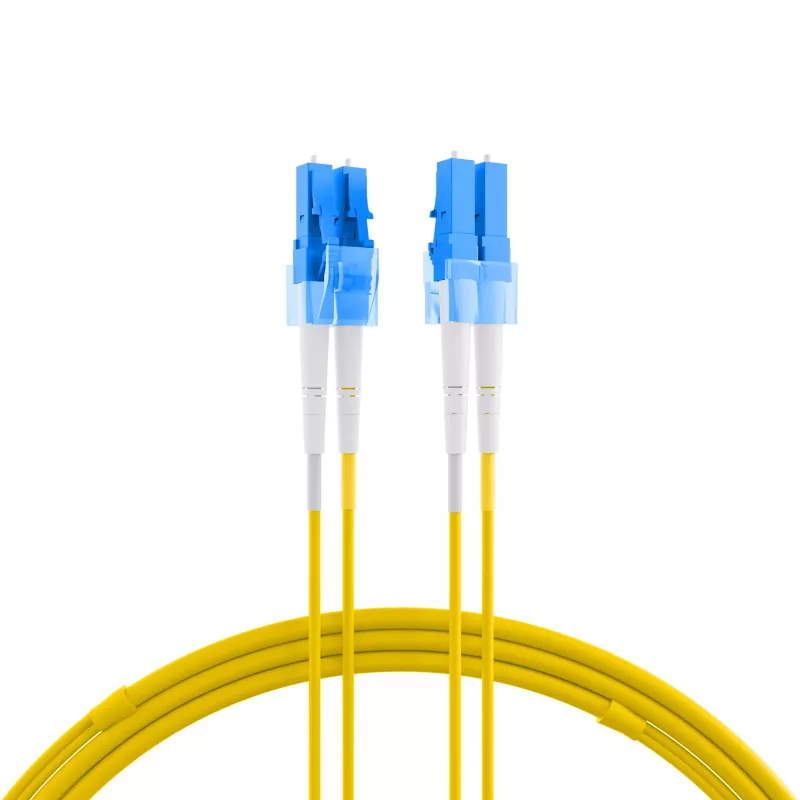

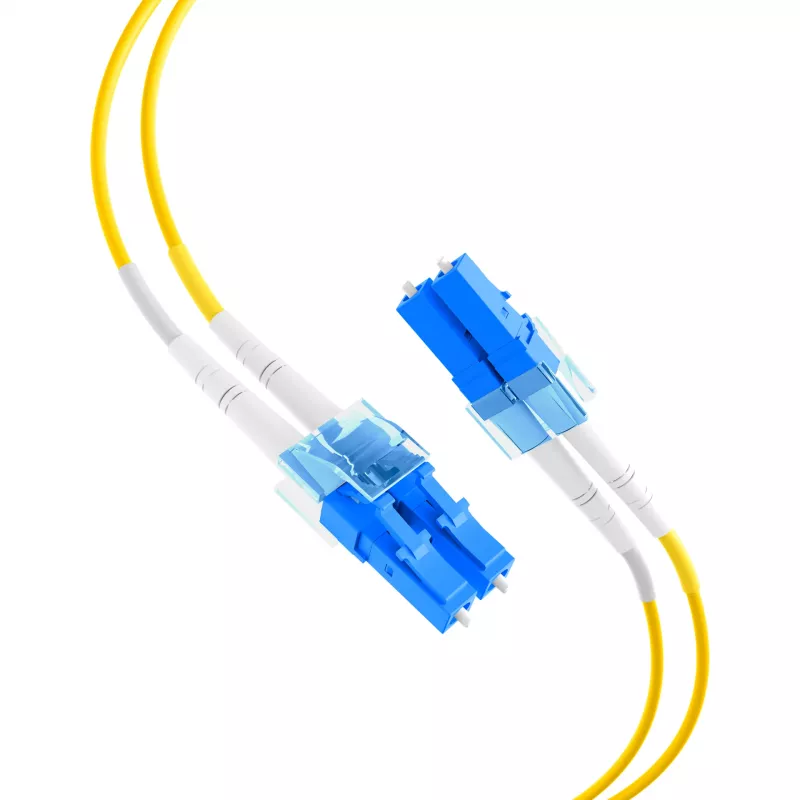

The EFB Elektronik IPL-DF-LCULCU-2-0050 is a high-quality duplex fiber optic patch cable designed for single-mode OS2 networks. With LC/UPC connectors on both ends and a length of 0.5 meters, this cable ensures reliable and low-loss connections for data centers, telecommunications, and enterprise networks. The yellow LSZH jacket provides durability and safety in environments where fire resistance is critical.

Advantages

This patch cable offers exceptional performance with low insertion loss (≤0.3 dB) and high return loss (≥50 dB), ensuring minimal signal degradation. The LSZH jacket reduces toxic smoke in case of fire, making it ideal for indoor installations. The duplex design supports bidirectional communication, and the 9/125 µm core/cladding ensures compatibility with standard single-mode equipment.

Suitable for

• Data center cabling
• Telecommunications networks
• FTTx applications
• LAN and WAN connections
• Test and measurement equipment

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber type: Single-mode OS2 (G.652.D)
• Connectors: LC/UPC to LC/UPC
• Number of fibers: 2 (Duplex)
• Cable length: 0.5 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Cable diameter: 2.0 mm
• Insertion loss (typical): ≤0.3 dB
• Return loss (typical): ≥50 dB
• Operating temperature: -20°C to 70°C
• Standards: RoHS, REACH, IEC 61754-20, TIA/EIA-604-10

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC duplex ports. For longer distances, consider EFB's range of OS2 patch cables in various lengths.
