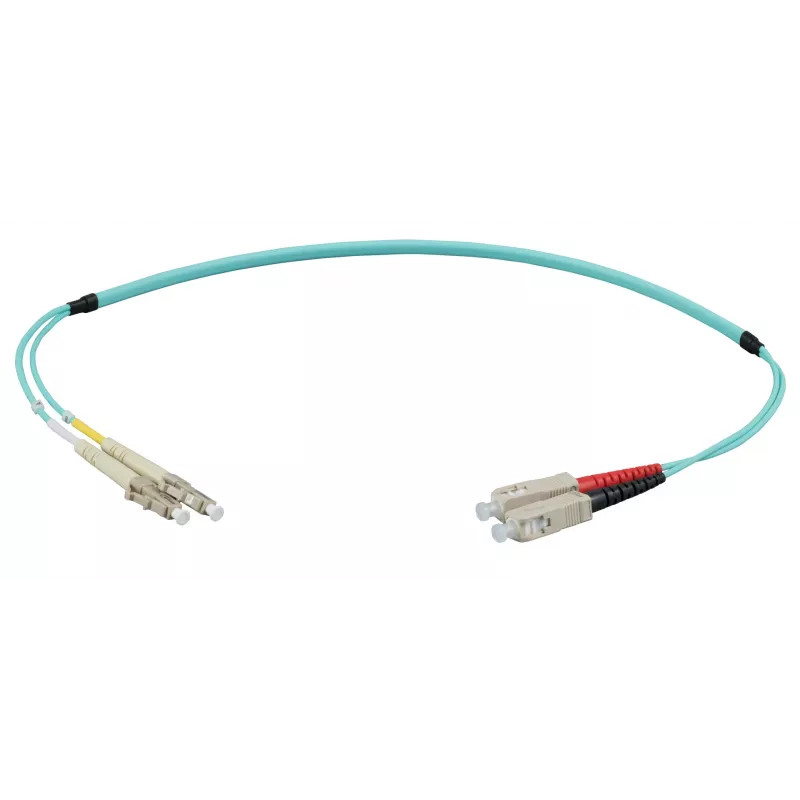

EFB Elektronik IPL-DF-LCUSCU-3-0100 Cable de fibra óptica 1 m OM3 LC/SC dúplex LSZH Aqua

The EFB Elektronik IPL-DF-LCUSCU-3-0100 is a high-quality fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 1 meter, this duplex cable features LC/UPC to SC/UPC connectors and OM3 multimode fiber, supporting 10 Gigabit Ethernet applications. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, while the aqua color provides easy identification.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring optimal signal integrity. The duplex design allows for bidirectional communication, and the robust construction with zirconia ceramic ferrules guarantees long-term durability. Compliance with RoHS and CE standards ensures environmental and safety compliance.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• LAN and SAN infrastructures
• High-speed data transmission up to 10 Gbps

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode OM3
• Connector A: LC/UPC
• Connector B: SC/UPC
• Cable Length: 1 m
• Cable Structure: Duplex
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH
• Jacket Color: Aqua
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 30 dB (typical)
• Operating Temperature: -20°C to 70°C
• Cable Diameter: 3.0 mm
• Ferrule Material: Zirconia Ceramic
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for use with OM3-compatible transceivers and equipment.
