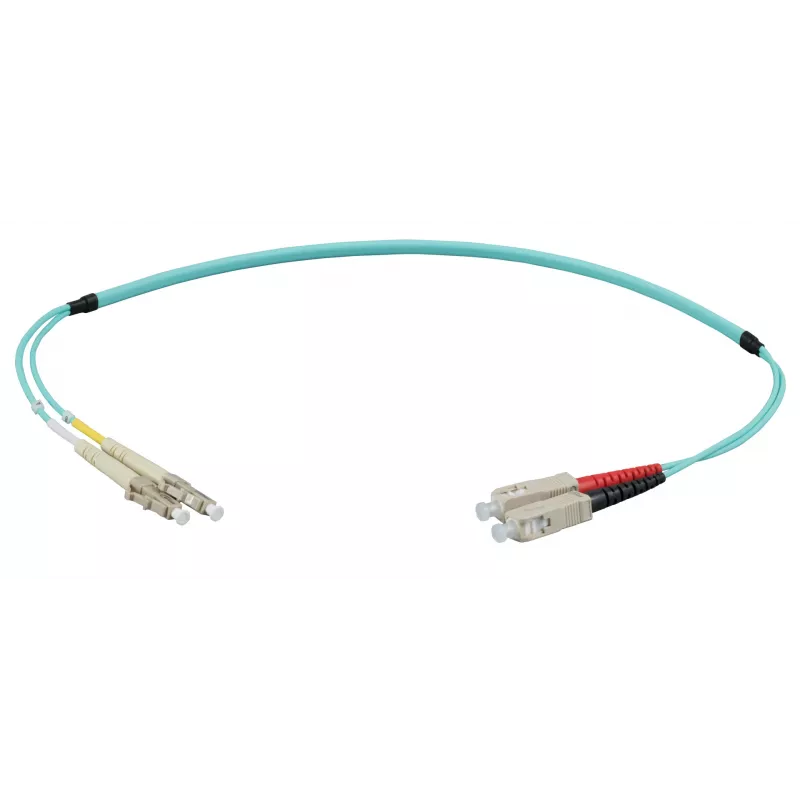

EFB Elektronik IPL-DF-LCUSCU-3-0500 Cable de conexión de fibra óptica Dúplex OM3 LC/SC 5 m

The EFB Elektronik IPL-DF-LCUSCU-3-0500 is a high-performance duplex fiber optic patch cable designed for reliable data transmission in demanding network environments. With OM3 multimode fiber and LC to SC connectors, this 5-meter cable supports high-bandwidth applications up to 10 Gbps and beyond.

Advantages

Optimized for 10 Gigabit Ethernet and storage area networks, this cable offers low insertion loss and high return loss, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire.

Suitable for

• Data centers requiring high-speed interconnects
• Local Area Networks (LAN) with fiber backbone
• Storage Area Networks (SAN) for reliable data transfer
• Telecommunications and enterprise networking

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Type: Duplex
• Fiber Type: Multimode
• Fiber Class: OM3
• Connector A: LC/UPC
• Connector B: SC/UPC
• Cable Length: 5 m
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH
• Cable Color: Aqua
• Insertion Loss (Max): < 0.3 dB
• Return Loss (Min): > 30 dB
• Attenuation at 850nm: 3.5 dB/km
• Attenuation at 1300nm: 1.5 dB/km
• Bandwidth at 850nm: 1500/2000 MHz-km
• Bandwidth at 1300nm: 500 MHz-km
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60793-2-10 Type A1a.2, TIA/EIA-492AAAC, ISO/IEC 11801

Recommendations

For optimal performance, pair this cable with OM3-compatible transceivers and ensure proper handling to maintain low insertion loss. Ideal for structured cabling in high-speed networks.
