EFB Elektronik IPL-DF-LCUSCU-4-0050 Cable de conexión de fibra óptica Dúplex OM4 LC/SC 0,5 m Aqua

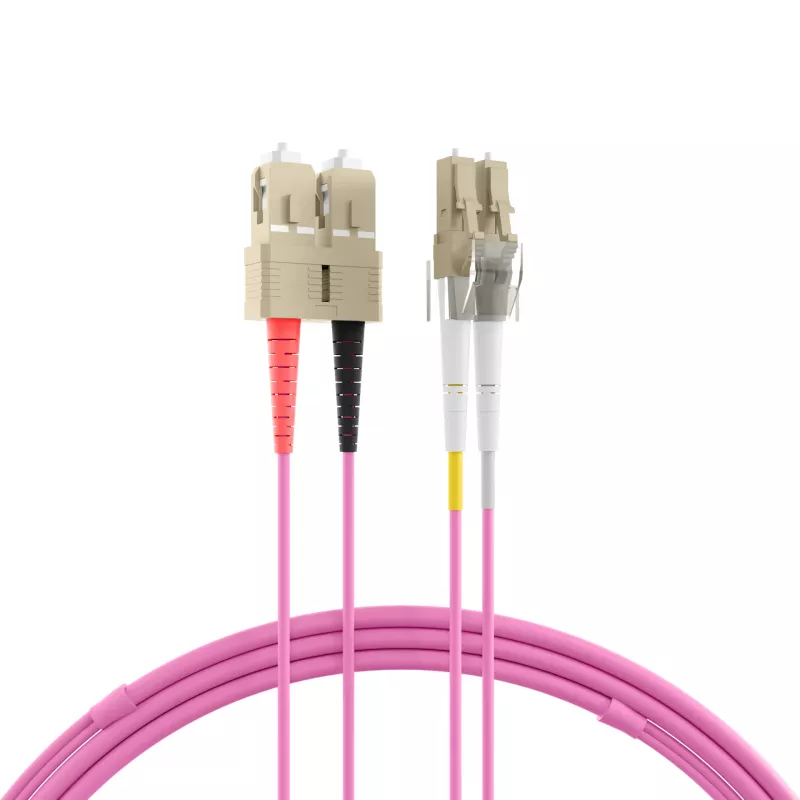

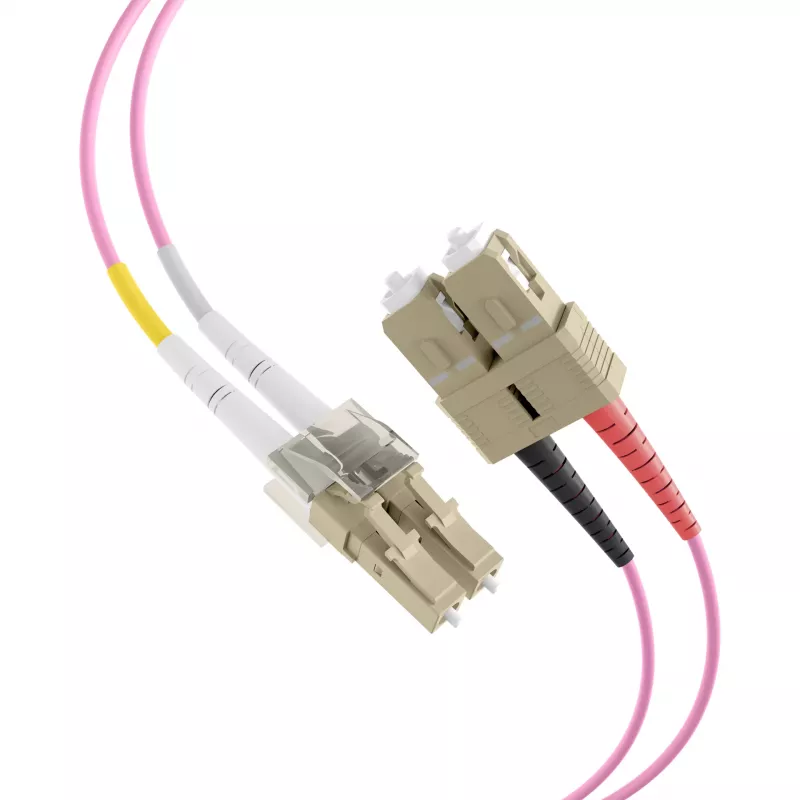

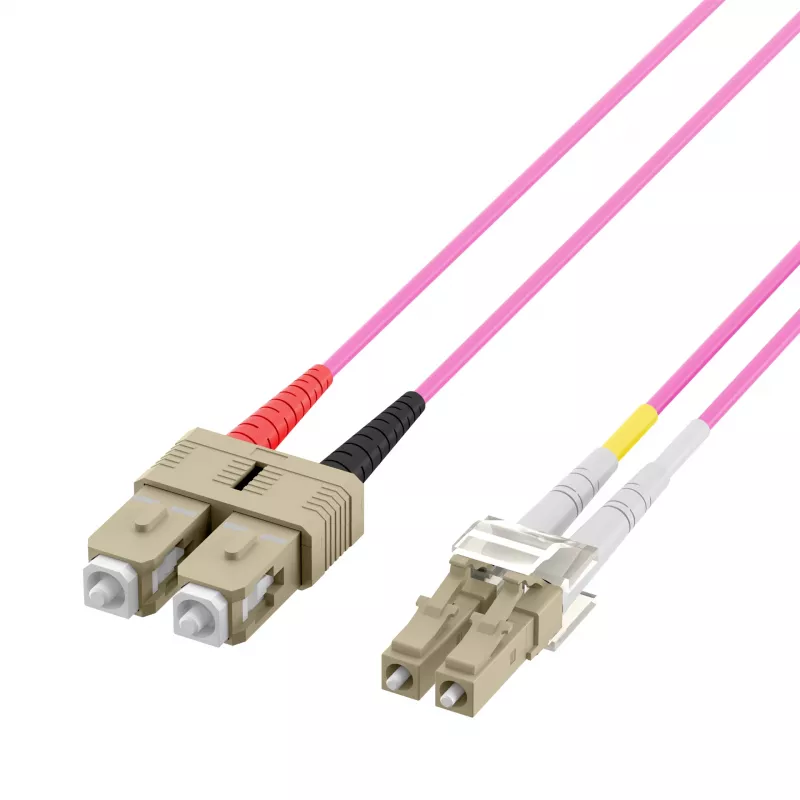

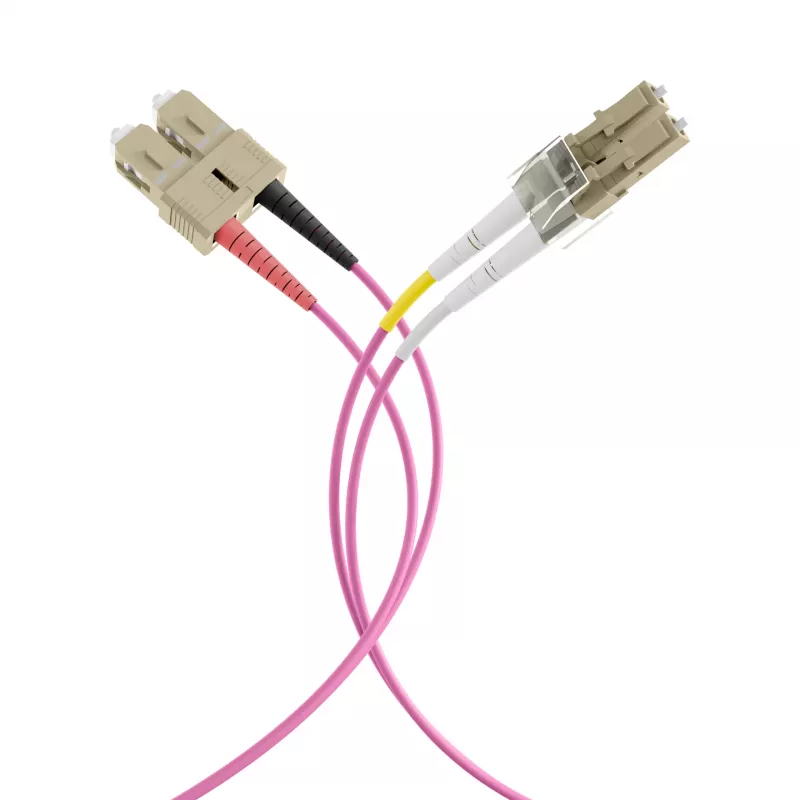

The EFB Elektronik IPL-DF-LCUSCU-4-0050 is a high-performance duplex fiber optic patch cable designed for demanding network environments. With OM4 multimode fiber and LC to SC connectors, this 0.5 meter cable ensures reliable, high-speed data transmission for 10GbE, 40GbE, and 100GbE applications. Its LSZH jacket and aqua color make it ideal for data centers and enterprise LAN/SAN installations.

Advantages

Optimized for high-bandwidth applications, this OM4 cable supports 4700 MHz*km at 850 nm, enabling longer link distances and future-proofing your network. The low insertion loss (≤0.3 dB) and high return loss (≥30 dB) ensure signal integrity. The LSZH jacket reduces toxic smoke in case of fire, enhancing safety in confined spaces.

Suitable for

• 10GbE, 40GbE, and 100GbE networks
• Data center interconnects
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• High-speed backbone cabling

Key specifications

• Cable type: Duplex fiber optic patch cable
• Fiber mode: Multimode OM4
• Connector A: LC/UPC
• Connector B: SC/UPC
• Length: 0.5 m
• Core/cladding: 50/125 µm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Aqua
• Insertion loss: ≤0.3 dB
• Return loss: ≥30 dB
• Operating temperature: -20°C to +70°C
• Standards: RoHS, REACH, IEC 60793-2-10 Type A1a.3

Recommendations

For optimal performance, pair this cable with OM4-compatible transceivers and ensure clean, dust-free connectors. Ideal for structured cabling in high-density environments.
