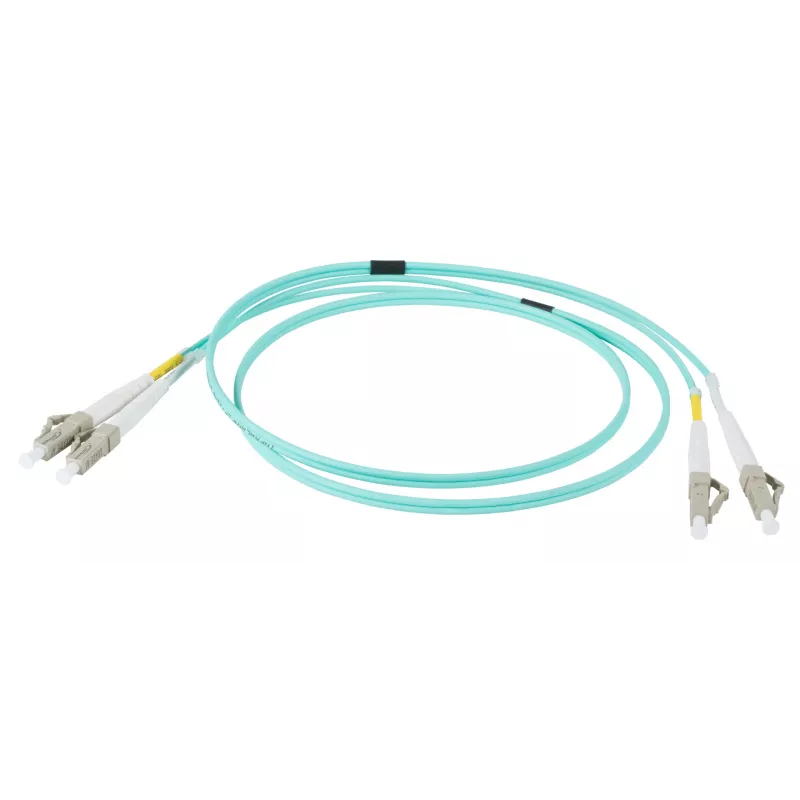

EFB Elektronik IPL-DR-LCULCU-3-0200 Cable de fibra óptica, 2 m, OM3, LC/UPC a LC/UPC, dúplex, Aqua

The EFB Elektronik IPL-DR-LCULCU-3-0200 is a high-quality fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 2 meters and OM3 multimode fiber, this duplex cable supports 10 Gigabit Ethernet and Fibre Channel applications, making it ideal for data centers, enterprise networks, and telecommunications infrastructure.

Advantages

This patch cable offers low insertion loss (<0.3 dB) and high return loss (>30 dB), ensuring minimal signal degradation and optimal performance. The LC/UPC connectors provide secure and precise connections, while the zipcord construction allows for easy handling and installation. The LSZH (Low Smoke Zero Halogen) jacket material, designated I-V(ZN)H, enhances safety by reducing toxic fumes in case of fire.

Suitable for

• 10 Gigabit Ethernet (10GBASE-SR) networks
• Fibre Channel storage area networks
• Data center interconnects
• Telecommunications and broadband applications
• High-speed backbone cabling

Key specifications

• Fiber Type: Multimode OM3
• Connector Type A: LC/UPC
• Connector Type B: LC/UPC
• Cable Length: 2 m
• Fiber Count: Duplex (2 fibers)
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (I-V(ZN)H)
• Jacket Color: Aqua
• Insertion Loss (Max): <0.3 dB
• Return Loss (Min): >30 dB
• Bandwidth at 850nm: 1500 MHz·km
• Bandwidth at 1300nm: 500 MHz·km
• Attenuation at 850nm: 2.5 dB/km
• Attenuation at 1300nm: 0.8 dB/km
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard LC interfaces and is suitable for use in structured cabling systems. Pair with OM3-rated patch panels and transceivers for best results.
