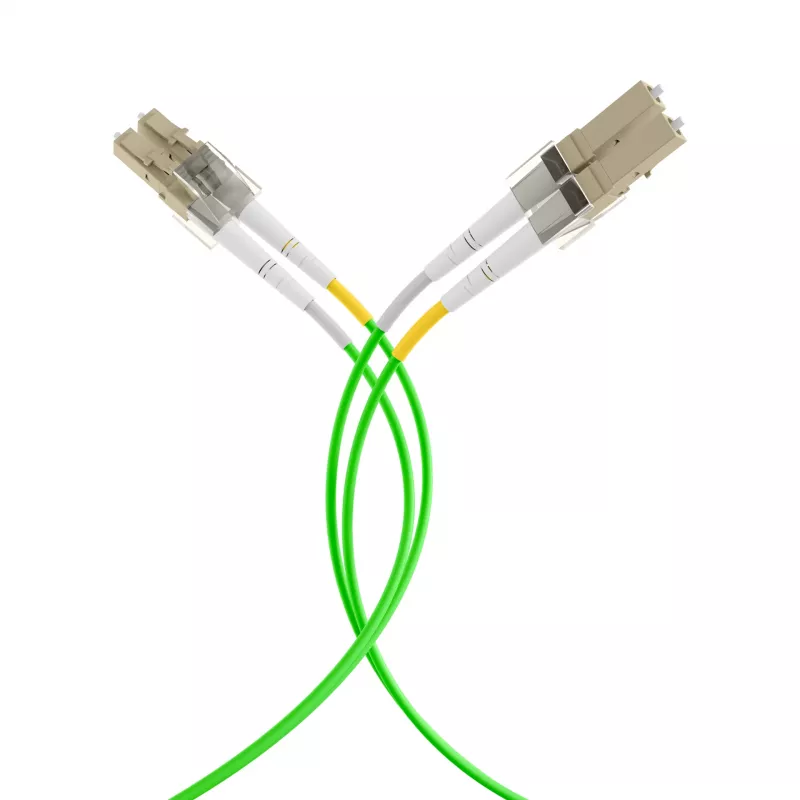

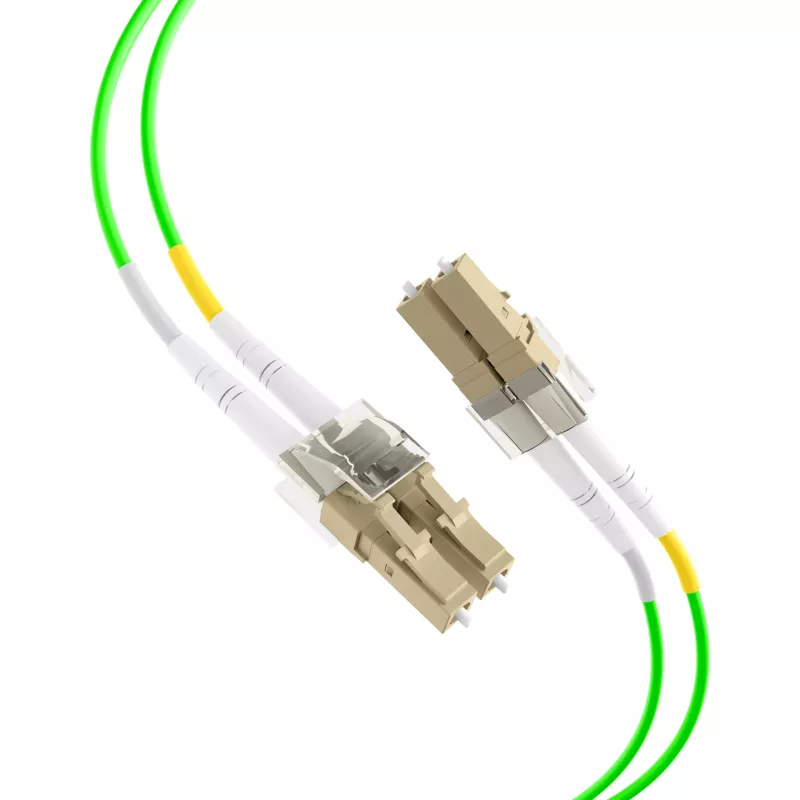

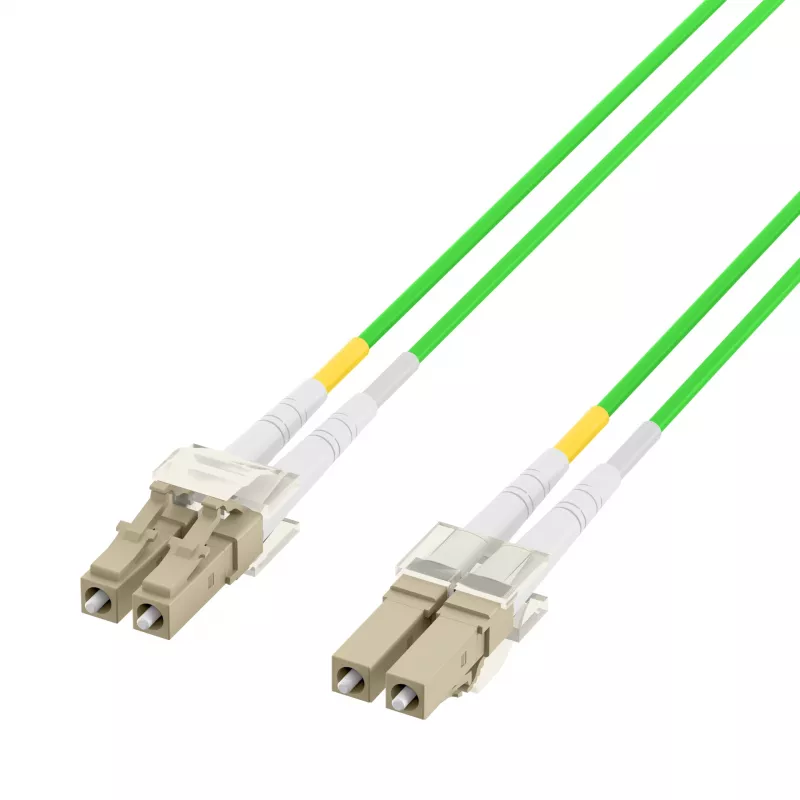

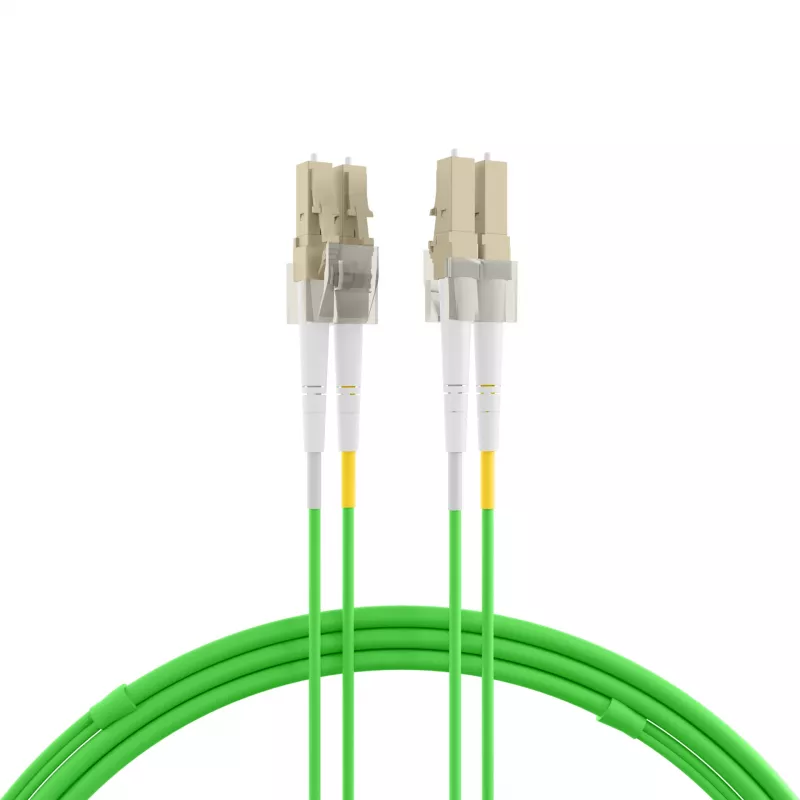

EFB Elektronik IPL-DR-LCULCU-5-0100 - 1 m - I-V(ZN) H - OM5 - LC - LC

The EFB Elektronik IPL-DR-LCULCU-5-0100 is a high-performance OM5 multimode fiber optic patch cable, designed for high-speed data transmission in data centers and enterprise networks. With a length of 1 meter and LC duplex connectors on both ends, this cable supports broadband multimode fiber (WBMMF) technology, enabling multiple wavelengths over a single fiber for increased bandwidth.

Advantages

OM5 fiber is optimized for shortwave wavelength division multiplexing (SWDM), allowing 40/100/200/400 Gbps transmission over a single duplex LC connection. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, reducing toxic fumes in case of fire. The I-V(ZN) H construction provides durability for both indoor and outdoor use.

Suitable for

• Data center interconnects
• High-speed network backbones
• Storage area networks (SAN)
• Telecommunications rooms

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode OM5
• Connector Type A: LC Duplex
• Connector Type B: LC Duplex
• Cable Length: 1 m (3.28 ft)
• Fiber Core/Cladding: 50/125 µm
• Jacket Color: Lime Green
• Jacket Material: LSZH
• Cable Construction: Duplex, 2 fibers
• Insertion Loss: ≤ 0.25 dB (typical)
• Return Loss: ≥ 30 dB (typical)
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, pair this OM5 patch cable with OM5-compatible transceivers and switches. Ensure proper handling and storage to maintain low insertion loss and high return loss characteristics.
