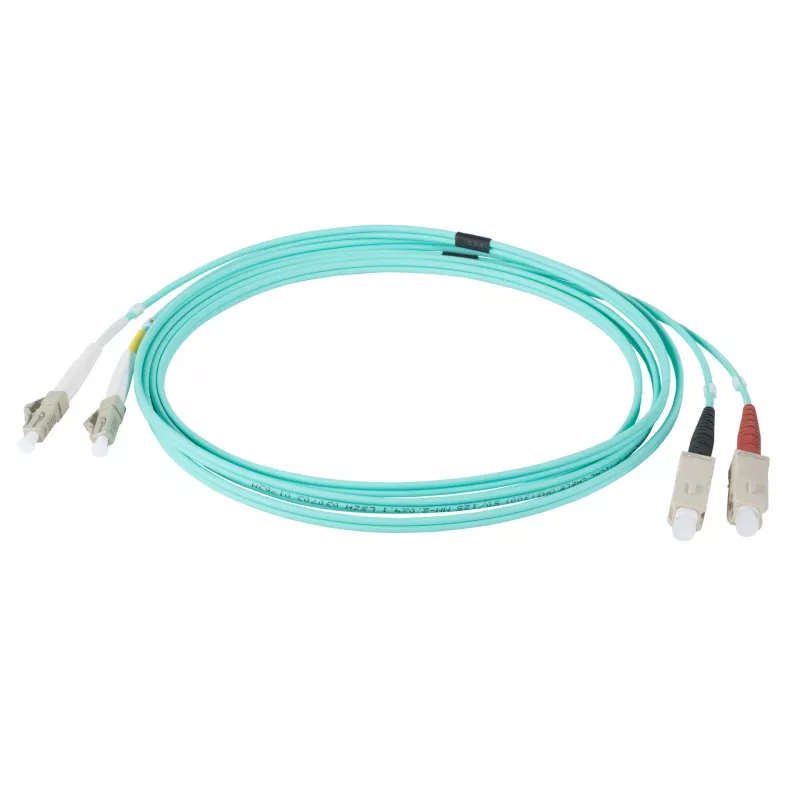

EFB Elektronik IPL-DR-LCUSCU-3-0200 Cable de fibra óptica dúplex OM3 LC-SC de 2 m

The EFB Elektronik IPL-DR-LCUSCU-3-0200 is a high-performance duplex fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 2 meters and OM3 multimode fiber, this cable supports 10 Gigabit Ethernet and Fibre Channel applications, ensuring low insertion loss and high bandwidth.

Advantages

This patch cable offers exceptional signal integrity with a maximum insertion loss of 0.3 dB and a minimum return loss of 30 dB. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, while the aqua color provides easy identification for OM3 fiber. Duplex construction allows for simultaneous bidirectional communication.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• High-speed local area networks (LANs)
• Fibre Channel storage area networks (SANs)

Key specifications

• Fiber Type: Multimode OM3
• Connector A: LC, Connector B: SC
• Length: 2 m
• Core/Cladding: 50/125 µm
• Jacket Material: LSZH
• Cable Color: Aqua
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥30 dB
• Attenuation: 2.5 dB/km @850nm, 0.8 dB/km @1300nm
• Bandwidth: 1500 MHz·km @850nm, 500 MHz·km @1300nm
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60793, IEC 60794, TIA/EIA-568-C.3

Recommendations

For optimal performance, pair this cable with compatible OM3 transceivers and ensure proper handling to maintain low insertion loss. Ideal for backbone cabling and high-speed interconnects.
