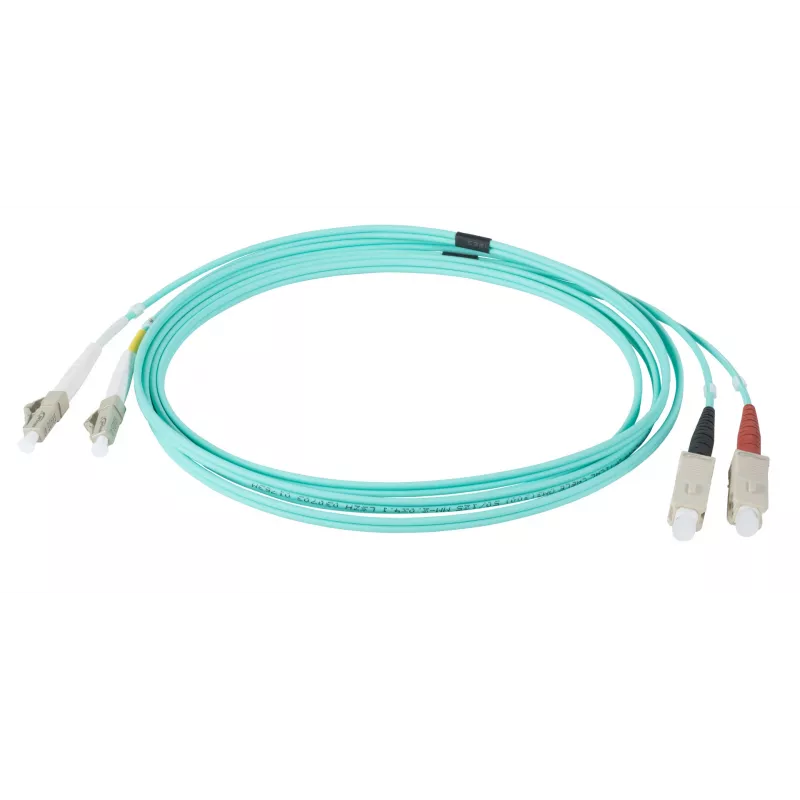

EFB Elektronik IPL-DR-LCUSCU-3-0300 Cable de conexión de fibra óptica, 3 m, OM3, LC a SC, Dúplex, Aqua

The EFB Elektronik IPL-DR-LCUSCU-3-0300 is a high-performance fiber optic patch cable designed for reliable 10 Gigabit Ethernet connections. With a length of 3 meters and OM3 multimode fiber, this duplex cable features LC to SC connectors and an aqua-colored LSZH jacket, making it ideal for data centers and enterprise networks.

Advantages

This cable ensures low insertion loss and high return loss for optimal signal integrity. The halogen-free, low smoke zero halogen (LSZH) jacket enhances safety in enclosed spaces. It supports 10GbE up to 300 meters at 850nm, providing flexibility for high-speed network deployments.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Telecommunications
• High-speed data transmission (10GbE)

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Standard: OM3
• Core/Cladding: 50/125 µm
• Connector Type A: LC
• Connector Type B: SC
• Cable Length: 3 m
• Jacket Type: I-V(ZN) H (Indoor/Outdoor, Non-Metallic, Halogen-Free)
• Jacket Color: Aqua
• Maximum Data Rate: 10 Gigabit Ethernet (10GbE)
• Max Distance 10GbE: 300 m (at 850nm)
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 30 dB
• Halogen Free: Yes
• Low Smoke Zero Halogen (LSZH): Yes
• Standards Compliance: IEC 60794-2, TIA/EIA-568-C.3
• Operating Temperature: -20°C to 70°C

Recommendations

For optimal performance, pair this cable with compatible OM3 transceivers and ensure proper handling to maintain low insertion loss. Suitable for indoor and outdoor use in protected environments.
